PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	400 × 350 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load per shelf	15 kg
Total cabinet distributed load	60 kg
Recommended top-surface load	20 kg
Cabinet net weight	34 kg
Plinth floor bearing area	108000 mm2
Tip-restraint safety load	25 kg at 1500 mm height
Shelf deflection limit	L/200 at 15 kg distributed load
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	18 mm engineered-wood board with smooth dark taupe-gray painted finish
Interior surfaces	Dark gray-brown matte back and shelf lining
Outer frame	Taupe-painted exposed front stile and rail assembly
Horizontal shelves	25 mm engineered-wood fixed shelf boards with matching dark edge banding
Bottom plinth	Closed taupe-gray engineered-wood base panel with recessed front face
Back panel	9 mm dark-finish backing board set within the side-panel rebate

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display layout	Four vertically stacked open compartments provide front-access display space without doors or glass panels
Fixed shelf organization	Three fixed horizontal shelves divide the cabinet into equal display zones and reinforce the side panels
Floor-standing installation	The closed plinth transfers loads directly to the floor and requires leveling on a flat interior surface
Anti-tip anchoring	A steel wall-restraint strap should connect the upper rear carcass to a load-rated wall anchor

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living-room display alcove	Suits a narrow alcove for sculptures, books and curated decor because each bay offers 365 mm object height
Office or study storage	Fits beside a desk or in a narrow corridor for binders, awards and reference objects with wall anchoring

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-NARROW-4S-400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-NARROW-4S-400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-NARROW-4S-400Open Export Tool

Quick Actions

Post an RFQ

Product Description

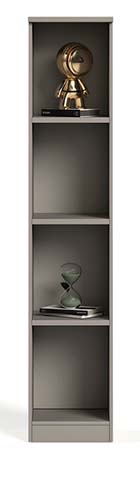

The Tall Narrow Open Display Bookcase with Four Shelves, model DC-NARROW-4S-400, is an unbranded open-front shelving piece designed for vertical storage and display in space-conscious interiors. Its tall, narrow form presents four vertically stacked compartments with direct front access, using no doors or glass panels. Three fixed horizontal shelves divide the interior into equal display zones, while the exposed front stile and rail assembly creates a clean, framed outer silhouette. The taupe-painted frame pairs with dark gray-brown matte back and shelf surfaces, giving the bookcase a restrained, contemporary appearance suitable for displaying books, sculptures, awards, binders, and curated decor. Construction combines engineered-wood components with a smooth painted finish. The outer frame is taupe painted, while the carcass panels use engineered-wood board in a dark taupe-gray painted finish. The fixed shelf boards are 25 mm thick and finished with matching dark edge banding, providing visual consistency across the open bays. The backing board is dark finished and set within the side-panel rebate, helping define the interior surface and complete the cabinet structure. A closed taupe-gray engineered-wood plinth with a recessed front face supports the floor-standing form and transfers loads directly to the floor. Functionally, the layout is optimized for narrow locations where accessible display and orderly storage are needed. The fixed shelves reinforce the side panels while maintaining four open presentation areas. Each bay offers 365 mm of object height for upright books or decorative pieces. The recommended static load is 15 kg per shelf, with a total cabinet distributed load of 60 kg and a recommended top-surface load of 20 kg. The unit should be leveled on a flat interior surface, and the steel wall-restraint strap should connect the upper rear carcass to a load-rated wall anchor, particularly in office, study, corridor, or residential alcove installations. This bookcase is well suited to a living-room display alcove, beside a desk in an office or study, or along a narrow circulation zone where wall anchoring can be properly arranged. Its dark interior and taupe outer frame support both neutral and accent-based interior schemes while keeping attention on displayed items. Procurement planning should account for the floor-standing installation, fixed interior configuration, and anchoring requirement rather than treating the unit as adjustable or freestanding in high-contact settings. The cabinet net weight is 34 kg, and installation should allow time for placement, leveling, and secure wall attachment. Packaging references indicate the set is supplied across multiple cartons, with a reference assembly time of 40 minutes per set; buyers should confirm the final packing configuration and delivery details at ordering. The overall dimensions are 400 x 350 x 1800 mm, making site width, depth, ceiling height, floor condition, and wall construction important considerations before purchase.

Tall Narrow Open Display Bookcase with Four Shelves Specifications
