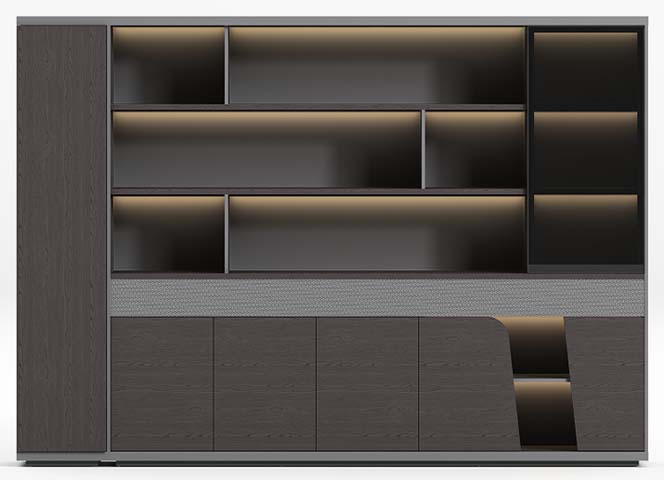

Executive Office Back-Wall Storage Cabinet with Illuminated Open Display Shelves (model OFC-STG-3200-LED) is listed under Panel-type Filing Cabinet, with overall dimensions of 3200 × 400 × 2000 mm and main material of Particle‑board (PB). Load capacity: 25 kg. Certifications: Modern,commercial,furniture,Mixed,open/closed,storage,Integrated,display,lighting. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 3200 x 400 x 2000 mm | |
|---|---|---|
| Left full-height solid door width | 400 mm | |
| Upper open display section height | 1080 mm | |
| Lower closed storage section height | 800 mm | |
| Recessed plinth base height | 120 mm | |
| Horizontal textured trim panel height | 80 mm | |
| Upper shelf clearance (tier 1) | 360 mm | |
| Upper shelf clearance (tiers 2-3) | 360 mm | |
| Lower cabinet door height | 680 mm | |
| Lower right open display niche width | 400 mm | |
| Lower right display niche shelf clearance | 340 mm | |
| Frame edge trim thickness | 20 mm | |
| Main panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single shelf static load capacity | 25 kg | |
|---|---|---|
| Unit net weight | 250 kg | |
| LED strip power consumption | 12 W per meter | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Recommended maximum load per door section | 40 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and door panels | 25mm E1 grade engineered particle board with dark woodgrain melamine laminate | |
|---|---|---|
| Outer frame and edge trim | 1.2mm thick matte gray PVC edge banding with MDF trim core | |
| Back panel | 9mm thick medium density fiberboard with dark matte laminate | |
| Display shelf surfaces | 25mm engineered wood with matte dark laminate finish | |
| Mid-section trim panel | Textured gray laminate over MDF substrate | |
| Lighting components | Recessed 3000K warm white LED strip lights with aluminum channel housing |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Display lighting | Recessed under-shelf warm white LED strips illuminate all open upper shelves and lower right niche | |
|---|---|---|
| Door storage access | Flat hinged doors open outward to reveal enclosed adjustable shelf storage | |
| Anti-tip safety | 2 wall-mounted anti-tip brackets secure unit to wall studs | |
| Shelf adjustability | 5mm shelf pin holes allow 32mm incremental height adjustment for enclosed shelves |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application | Executive office back-wall storage behind management desks | |
|---|---|---|
| Secondary application | Conference room perimeter storage |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to structural stability testing | |
|---|---|---|
| EN 14074:2004 | Office furniture work surfaces and storage durability test methods, applicable to load testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard, applicable to shelf and door cycle testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance | |
| GB/T 4897.3-2003 | Particle board specifications for furniture use, applicable to core panel material acceptance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural inspection; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance; 3. GB/T 4897.3-2003: Particle board specifications for furniture use, applicable to core panel material acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
