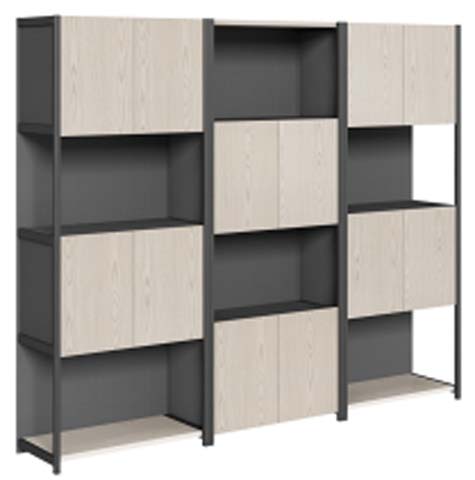

Product supplier3-Bay 3-Tier Industrial Mixed Storage Office Bookshelf, Dark matte powder-coated carbon steel tube
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 350 × 1930 mm | |
|---|---|---|
| Overall unit dimensions | 1800 x 350 x 1930 mm | |
| Single vertical bay width | 600 mm | |
| Elevated open base clearance | 150 mm | |
| Closed cabinet internal shelf clearance | 320 mm | |
| Open shelf internal clearance height | 380 mm | |
| Double door panel width per cabinet | 580 mm | |
| Carcass steel frame tube cross-section | 30 x 30 mm | |
| Door panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Shelf panel thickness | 25 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Evenly distributed load per shelf | 73 kg | |
|---|---|---|
| Total unit static load capacity | 360 kg | |
| Hinge open/close cycle rating | 50000 cycles | |
| Anti-tip anchor required load rating | 50 kg | |
| Melamine surface abrasion resistance | 2000 revolutions | |
| Powder coat film salt spray resistance | 48 hours | |
| Unit net weight | 85 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural frame | Dark matte powder-coated carbon steel tube | |
|---|---|---|
| Closed cabinet door panels | Bleached light oak-look melamine laminated particleboard | |
| Cabinet and open shelf back panels | Charcoal grey melamine laminated MDF | |
| Shelf load-bearing surfaces | Melamine laminated engineered wood with matching edge banding | |
| Cabinet hinges | Cold-rolled steel concealed soft-close hinges | |
| Door retention mechanism | Embedded magnetic door catches | |
| Leveling feet | Nylon-padded adjustable steel glides | |
| Anti-tip hardware | Zinc-plated steel wall anchor bracket with screws | |
| Edge banding | 1mm thick PVC edge tape matching door and shelf finishes | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 4 double-door enclosed cabinets and 5 open display shelves across 3 x 3 grid | |
|---|---|---|
| Door operation | Double hinged doors open 110 degrees outward for full compartment access | |
| Shelf adjustment | Fixed tier positions aligned to visible grid layout, no adjustable shelf holes visible | |
| Leveling adjustment | Base glides adjust 15mm vertically to compensate for uneven office flooring | |
| Storage suitability | Enclosed cabinets conceal office supplies and documents; open shelves display decor or frequently used materials | |
| Cleaning access | 150mm elevated base allows robot vacuum and mop access under the unit | |
| Wall anchoring | Included anti-tip bracket secures top rear of unit to wall studs | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office zones | Separates work areas while providing document storage and display space | |
|---|---|---|
| Private executive offices | Stores reference materials, awards and office supplies behind mixed open/closed fronts | |
| Startup and co-working spaces | Offers flexible mixed storage for shared supplies and decorative items | |
| Home office studies | Fits along home office walls to store books, files and personal work items | |
| Reception and waiting areas | Displays marketing materials and stores reception supplies out of sight |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to freestanding shelving units | |
|---|---|---|
| EN 14074:2004 | Office storage furniture test methods for strength and durability | |
| EN 12521:2015 | Furniture strength, durability and safety requirements for domestic and non-domestic storage |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet panel construction | |
|---|---|---|
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes, applicable to laminate panels | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet panel construction; 2. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes, applicable to laminate panels; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
