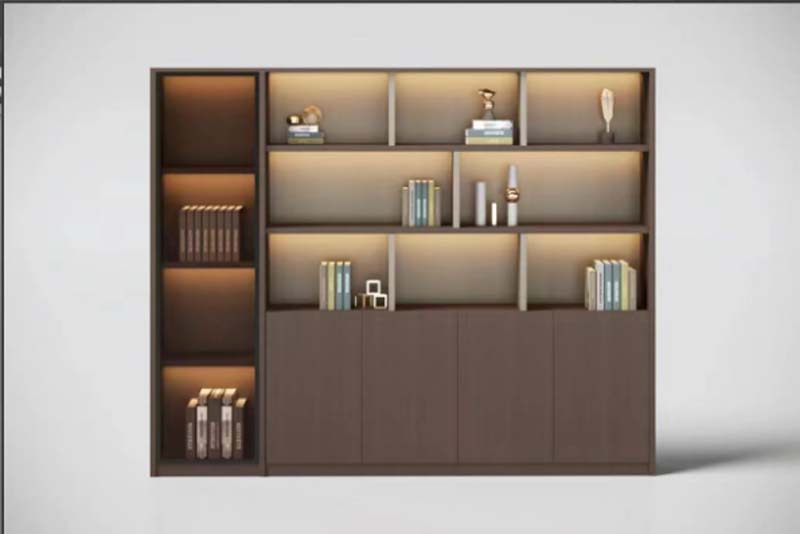

Name: Dark Brown Asymmetrical Open Display Bookcase with Lower Closed Cabinets and Integrated LED Lighting
Brand: KANAITE
SKU: NP5QBY

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2200 mm
Left narrow open shelf bay width	400 mm
Right main display section width	2000 mm
Left vertical open shelf compartment height	380 mm
Upper main open shelf compartment height	350 mm
Lower cabinet section height	700 mm
Individual lower cabinet door width	500 mm
Open shelf depth	360 mm
Carcass panel thickness	18 mm
Back panel thickness	9 mm
Shelf panel thickness	25 mm
Adjustable shelf pin hole spacing	32 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	80 kg
Per open shelf static load capacity	25 kg
LED strip operational lifespan	30000 hours
Wall anchor anti-tip load rating	50 kg
Recommended maximum load per cabinet door	10 kg
Surface abrasion resistance	300 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	18mm particleboard with dark brown matte laminate
Open shelf panels	25mm MDF with matching laminate edge banding
Back panel	9mm hardboard with dark brown melamine finish
Lower cabinet doors	18mm MDF with matte dark brown laminate, push-to-open design
Cabinet hinges	Cold-rolled steel soft-close concealed hinges
Integrated LED strips	Low-voltage SMD LED strips with warm white diffused cover
Edge banding	1mm PVC matching dark brown finish
Wall anchor hardware	Zinc-plated steel anti-tip brackets with screws
Adjustable shelf pins	Nickel-plated steel 5mm diameter support pins
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

LED accent lighting	Warm white recessed strips mounted under each open shelf, dimmable
Open shelf adjustability	Left and right open shelves support height adjustment via pin holes
Lower cabinet storage	4 flush doors conceal 2 fixed interior compartments per door section
Cabinet door operation	Push-to-open soft-close hinges with 110-degree opening angle
Wall anchoring	Included anti-tip brackets secure unit to wall studs to prevent tipping
Cable management	Recessed rear channel routes LED power cords out of visible sight
Display configuration	Asymmetrical layout supports curated book and decor display across 11 open compartments
Surface maintenance	Matte laminate surface wipes clean with dry or damp cloth, no special treatment required
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home study	Floor-to-ceiling book and file storage with display space for personal decor, fits against full wall sections
Modern office reception area	Displays corporate awards, publications and decorative items with concealed supply storage below
Contemporary living room	Combines media-adjacent display for books and art with hidden storage for household items
Executive private office	Provides professional book storage and curated display behind a desk, supports modern office aesthetic
Open-plan workspace lounge	Acts as a partial room divider with backlit display for community libraries or decor
Residential library nook	Maximizes vertical wall space for book collections without requiring additional floor clutter

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and structural requirements for domestic and kitchen storage furniture
EN 312:2010	Particleboard performance specification for furniture-grade panel use
EN 62471:2008	Photobiological safety for LED lighting products used in furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to cabinet structural stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance
GB/T 4897.3-2015	Particleboard specification for furniture use, applicable to carcass panel performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural stability;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance;
3. GB/T 4897.3-2015: Particleboard specification for furniture use, applicable to carcass panel performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BC-LED-ASYM-4D-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BC-LED-ASYM-4D-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BC-LED-ASYM-4D-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

The KANAITE Dark Brown Asymmetrical Open Display Bookcase with Lower Closed Cabinets and Integrated LED Lighting, model BC-LED-ASYM-4D-2400, delivers a cohesive modern storage solution defined by its intentional asymmetrical layout. The unit balances a narrow left vertical open shelf bay with a wider right main display section, paired with a full-width lower closed cabinet base for a streamlined, floor-to-ceiling visual profile. A consistent dark brown matte finish unifies all exterior surfaces, while warm white integrated LED strips sit recessed under each open shelf to cast soft, dimmable accent light across displayed items, with a recessed rear channel to keep power cords hidden from view. Construction blends durable engineered wood panels with robust hardware for long-term use. The main carcass is built from 18mm particleboard clad in dark brown matte laminate, with 25mm MDF open shelf panels finished with matching 1mm PVC edge banding, a 9mm dark brown melamine hardboard back panel, and 18mm MDF lower cabinet doors in the same matte dark brown laminate. Hardware includes cold-rolled steel soft-close concealed hinges, zinc-plated steel anti-tip wall anchor brackets, and nickel-plated steel adjustable shelf pins. The integrated low-voltage SMD LED strips feature a diffused cover for even, glare-free warm white illumination. Functionality is tailored for flexible display and concealed storage. The open layout includes 11 total display compartments, with both left and right open shelves supporting height adjustment via pre-drilled pin holes to accommodate items of varying sizes. The lower cabinet section features four flush, push-to-open doors that operate with soft-close action and a 110-degree opening angle, concealing fixed interior compartments for out-of-sight storage. Included anti-tip brackets secure the unit to wall studs to prevent accidental tipping. This bookcase suits a wide range of residential and commercial settings. In homes, it fits seamlessly in home studies for book and file storage alongside personal decor displays, contemporary living rooms for media-adjacent book and art display with hidden household item storage, and residential library nooks to maximize vertical wall space without excess floor clutter. For commercial spaces, it works in modern office reception areas to showcase corporate awards and publications while concealing office supplies, executive private offices for professional book storage behind desks, and open-plan workspace lounges as a partial room divider with backlit display for community collections or decor. Procurement teams should note the unit ships across multiple cartons, with a referenced assembly time of 40 minutes per set for on-site installation planning. Weight load ratings apply separately to open shelves, cabinet door storage, and the anti-tip anchoring system, so use cases should align with these specified capacities to maintain product integrity. The asymmetrical form is designed for placement against solid full wall sections or as a fixed partial divider, rather than freestanding mid-room placement without anchoring.
