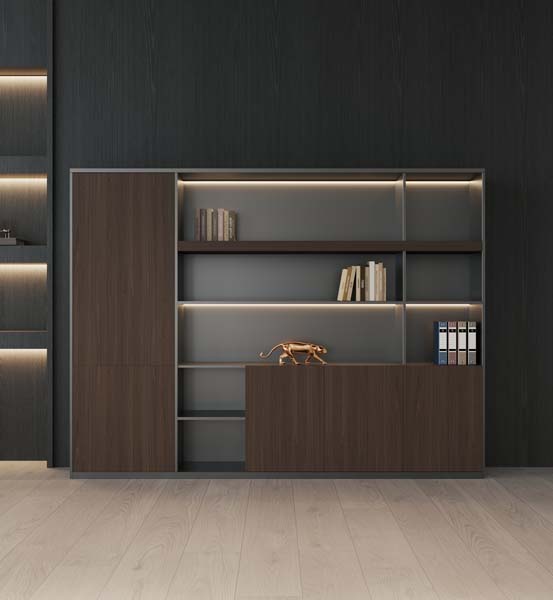

Product supplierAsymmetric Dark Wood Office Storage Bookcase with Integrated LED Lighting, E0 grade engineered particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Overall unit dimensions | 2400 x 400 x 2000 mm | |
| Left full-height solid door width | 700 mm | |
| Right section width | 1700 mm | |
| Upper open shelf column width (right section) | 850 mm | |
| Lower right enclosed cabinet width | 1280 mm | |
| Lower left small open shelf width | 420 mm | |
| Open shelf clearance height | 350 mm | |
| Lower enclosed cabinet internal height | 700 mm | |
| Carcass panel thickness | 25 mm | |
| Door panel thickness | 25 mm | |
| Metal frame profile thickness | 12 mm | |
| Back panel thickness | 9 mm | |
| PVC edge band thickness (high-wear areas) | 2 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit static load capacity | 300 kg | |
|---|---|---|
| Soft-close hinge cycle rating | 100000 cycles | |
| Drawer slide (if fitted) cycle rating | 80000 cycles | |
| LED strip operational lifespan | 50000 hours | |
| Recommended maximum number of users | 10 | |
| Finish abrasion resistance rating | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass core | E0 grade engineered particleboard | |
|---|---|---|
| Door panels | Dark vertical wood veneer finish over engineered wood core | |
| Structural frame | Matte black powder-coated cold-rolled steel | |
| Open shelf surfaces | Melamine laminate finish with anti-scratch coating | |
| Edge banding | 2mm thick PVC edging on all exposed panel edges | |
| Door hardware | Soft-close push-to-open bounce hinges | |
| Lighting components | Recessed warm white 3000K LED strip lights | |
| Adjustable shelf supports | Zinc-plated steel shelf pins | |
| Anti-tip hardware | Heavy-duty steel wall anchor brackets | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Push-to-open bounce mechanism for all solid doors | |
|---|---|---|
| Open shelf adjustability | 5-position height adjustment for all open shelf levels | |
| LED lighting control | Touch-activated dimmable control with 3 color temperature options | |
| Lower enclosed storage | Double solid door compartment with 1 adjustable internal shelf | |
| Left full-height door storage | Full-height enclosed compartment with 3 adjustable internal shelves | |
| Hinge opening angle | 110 degrees for all cabinet doors | |
| Cable management access | Pre-drilled cable passthrough at rear of open shelves | |
| Shelf reconfiguration | Tool-free shelf adjustment via standard steel pin supports | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office background storage | Installed behind manager/executive desks for document storage and curated display | |
|---|---|---|
| Open-plan office team storage hub | Positioned in shared work zones for centralized filing, reference material and shared supply storage | |
| Reception area display cabinet | Used in corporate lobbies to display awards, brand decor and informational materials | |
| Meeting room document storage | Installed along meeting room walls for archived meeting materials, presentation supplies and tech accessory storage | |
| Home office premium storage | Used in high-end residential home offices for book, file and personal display storage | |
| Recommended pairing configuration | Paired with matching executive desks, meeting tables and office seating from the same dark wood/metal collection |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1728:2014 | Furniture – Seating, storage and tables test methods for structural strength | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units and worktops safety requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage cabinets standard for structural durability and load performance | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental impact |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required ≤0.124mg/m³ for E1 grade | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to structural core material performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required ≤0.124mg/m³ for E1 grade; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to structural core material performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
