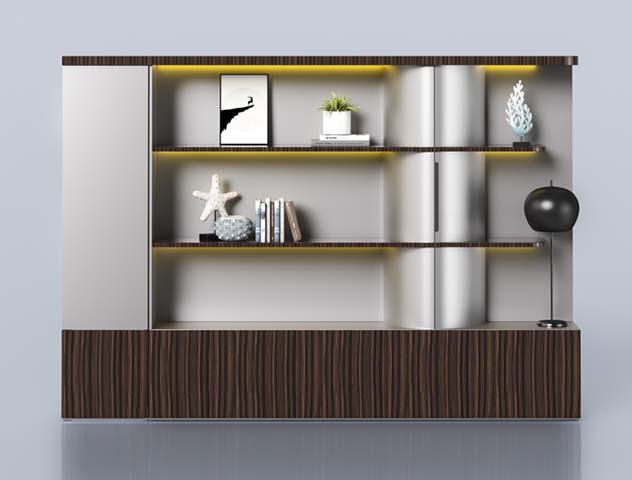

Contemporary Wall-Mounted Display Storage Cabinet with Integrated LED Shelves and Fluted Base (model WD-DISP-2400-2200-FLT) is listed under Panel-type Filing Cabinet. Dimensions: 2400 × 400 × 2200 mm. Materials: Dark walnut-toned wood veneer over engineered wood with vertical fluted relief. Load capacity: 40 kg per shelf level. Product Features: Contemporary,style,wall,display,cabinet,fluted,wood,base,open,shelving,closed,storage,integrated,LED,lighting. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WD-DISP-2400-2200-FLT |
| Overall dimensions (W × D × H) | 2400 × 400 × 2200 mm | Carcass Panel Thickness | 25 mm |
| Back Panel Thickness | 9 mm | Door / Drawer Front Thickness | 22 mm |
| Shelf Thickness | 25 mm | Cabinet net weight reference | 185 kg |
| Lower base shelf static load | 40 kg per shelf level | Open display shelf static load | 20 kg per shelf |
| Top surface static load | 30 kg distributed | Closed storage door cycle rating | 50,000 open-close cycles |
| LED strip rated lifetime | 30,000 hours | Recommended wall fastener load capacity | 240 kg total pull-out resistance |
| Color and finish options | 3 finish groups | Shelf Distributed Load | 30 kg/shelf |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Fluted lower front | Dark walnut-toned wood veneer over engineered wood with vertical fluted relief |
| Left tall door | Light gray matte lacquered engineered wood panel with flush finger-pull edge | Open shelf boards | Dark wood-veneer engineered wood boards with 30 mm visible thickness and matching edge banding |
| Back panels | Light gray matte lacquered backing panels in open display bays | Curved center columns | Light gray lacquered engineered wood or formed MDF panels with radius corners |
| Edge and trim hardware | Satin aluminum or silver-gray metal trim along horizontal shelf edges and top cap | Display configuration | Three illuminated open shelf levels and one right-side niche provide open display space for art, books, plants, and ornaments |
| Concealed storage | A full-height left slab door, curved center column doors, and continuous fluted base provide closed storage | Integrated ambient lighting | Warm-white LED strips wash the rear of each open compartment and highlight displayed objects |
| Wall-mounted storage system | The cabinet is designed for fixed wall installation with a floor-supported or floating full-wall appearance | Carton count | 6 flat-packed panels cartons |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
| Reference Packaging Volume | 0.65 m³/set | Executive office or reception display wall | Suitable behind a reception desk or executive seating area for trophies, books, art, and concealed office materials |
| Premium lounge or showroom feature wall | Suitable for hotel lounges, sales galleries, and club lounges where warm shelf lighting and closed storage are required | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Cabinet net weight reference | 185 kg | |
|---|---|---|
| Lower base shelf static load | 40 kg per shelf level | |
| Open display shelf static load | 20 kg per shelf | |
| Top surface static load | 30 kg distributed | |
| Closed storage door cycle rating | 50,000 open-close cycles | |
| LED strip rated lifetime | 30,000 hours | |
| Recommended wall fastener load capacity | 240 kg total pull-out resistance | |
| Color and finish options | 3 finish groups | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Fluted lower front | Dark walnut-toned wood veneer over engineered wood with vertical fluted relief | |
|---|---|---|
| Left tall door | Light gray matte lacquered engineered wood panel with flush finger-pull edge | |
| Open shelf boards | Dark wood-veneer engineered wood boards with 30 mm visible thickness and matching edge banding | |
| Back panels | Light gray matte lacquered backing panels in open display bays | |
| Curved center columns | Light gray lacquered engineered wood or formed MDF panels with radius corners | |
| Edge and trim hardware | Satin aluminum or silver-gray metal trim along horizontal shelf edges and top cap |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Display configuration | Three illuminated open shelf levels and one right-side niche provide open display space for art, books, plants, and ornaments | |
|---|---|---|
| Concealed storage | A full-height left slab door, curved center column doors, and continuous fluted base provide closed storage | |
| Integrated ambient lighting | Warm-white LED strips wash the rear of each open compartment and highlight displayed objects | |
| Wall-mounted storage system | The cabinet is designed for fixed wall installation with a floor-supported or floating full-wall appearance |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 6 flat-packed panels cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office or reception display wall | Suitable behind a reception desk or executive seating area for trophies, books, art, and concealed office materials | |
|---|---|---|
| Premium lounge or showroom feature wall | Suitable for hotel lounges, sales galleries, and club lounges where warm shelf lighting and closed storage are required |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
