Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per shelf static load capacity | 25 kg | |
|---|---|---|
| Product net weight | 130 kg | |
| Door hinge cycle rating | 80000 cycles | |
| Recommended maximum number of stored items per shelf | 20 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet body panels | 18mm melamine-faced particleboard, E1 grade | |
|---|---|---|
| Horizontal open shelves | 25mm melamine-faced particleboard, matching light gray finish | |
| Exterior door panels | 18mm melamine-faced particleboard, matte warm taupe finish | |
| Vertical accent panels | 18mm melamine-faced particleboard, matte warm brown finish | |
| Edge banding | 1mm thick PVC edge trim, matching white frame color | |
| Back panel | 5mm thick melamine hardboard, light gray finish | |
| Door hinges | Cold-rolled steel concealed soft-close hinges | |
| Base plinth | 18mm white melamine particleboard, integrated leveler inserts | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

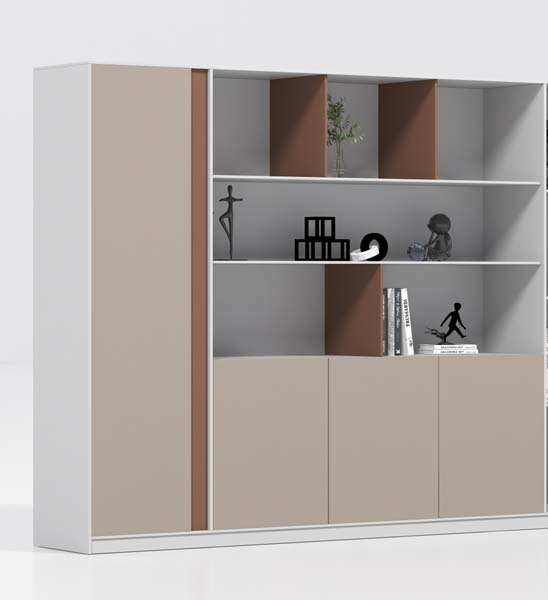

| Left full-height closed storage | Full-height hinged door provides enclosed concealed storage for files and supplies | |
|---|---|---|
| Lower base cabinet storage | Three hinged doors conceal lower storage for infrequently used items | |
| Upper open display shelving | Four tiers of fixed open shelves for books, decor and frequently accessed materials | |
| Decorative vertical divider accents | Three fixed brown accent panels add visual separation without blocking shelf access | |
| Adjustable shelf capability | Pre-drilled shelf pin holes allow height adjustment of open shelves to accommodate tall items | |
| Floor-standing installation | Integrated base plinth supports unit directly on floor without wall mounting required | |
| Soft-close door mechanism | Concealed hinges enable quiet, slow closing of all cabinet doors | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Largest shipping carton dimensions | 2450 x 450 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office backdrop | Placed behind executive desk to store reference materials and display corporate decor | |
|---|---|---|
| Open office filing area | Used in shared office zones to store binders, office supplies and team resources | |
| Reception display area | Positioned in reception zones to display company awards, reading materials and decor | |
| Library and reference room | Installed in small reference libraries to hold books and archival materials | |
| Team meeting room storage | Placed in meeting rooms to store presentation materials, supplies and decorative items |
EU Market Access Requirements* EN Standards
| Formaldehyde emission class | EN 13986:2004+A1:2015 | |
|---|---|---|
| Structural strength testing | EN 14073:2004 | |
| Surface abrasion resistance | EN 14322:2017 |
US and Canada office-furniture standards
| Storage unit structural performance | ANSI/BIFMA X2019 | |
|---|---|---|
| Shelving deflection requirement | ANSI/BIFMA X2019Clause 7.2 |
Standards applicable to China-market projects
| Panel formaldehyde emission | GB/T 17657 | |
|---|---|---|
| Furniture structural safety | GB/T 3324 | |
| Surface durability | GB/T 4893.4 |
This product must meet the following technical requirements: 1. Panel formaldehyde emission: GB/T 17657; 2. Furniture structural safety: GB/T 3324; 3. Surface durability: GB/T 4893.4; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
