PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2400 mm
Open shelf section height	1600 mm
Closed cabinet section height	800 mm
Shelf depth	300 mm
Shelf panel thickness	25 mm
Carcass side panel thickness	18 mm
Back panel thickness	9 mm
Door panel thickness	18 mm
Edge band thickness	1 mm
Base plinth height	60 mm
Door opening angle	110 degrees
Largest open cubby dimension	600 x 400 x 480 mm
Smallest open cubby dimension	400 x 400 x 480 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit static load capacity	80 kg
Per fixed open shelf static load	20 kg
Per lower cabinet shelf static load	15 kg
Door hinge cycle rating	80000 open/close cycles
Surface abrasion resistance	2000 revolutions
Product net weight	50 kg
Anti-tip hardware anchor count	2
Warranty period	2 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass core material	High-density engineered wood substrate
Exposed surface finish	Walnut grain matte veneer
Lower cabinet door panels	Engineered wood with vertical ribbed texture molding
Shelf support hardware	Powder-coated steel reinforcement brackets
Door hinges	Soft-close zinc alloy buffer hinges
Back panel	Medium-density fiberboard with tongue-and-groove joinery
Edge trim	Solid wood veneer edge banding
Base plinth	Engineered wood with matching walnut laminate finish
Surface coating	Scratch-resistant matte polyurethane lacquer
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper open shelf storage	3 tiers of asymmetrical divided cubbies for display of books and decorative objects
Lower concealed storage	3 ribbed panel doors enclosing a divided cabinet for hidden item storage
Door operation	Soft-close hinge mechanism with 110-degree swing for full interior access
Fixed shelf configuration	All open shelves are permanently fixed for enhanced structural rigidity
Anti-tip safety	Wall anchor hardware secures top of unit to wall studs to prevent forward tipping
Surface maintenance	Wipe-clean matte finish allows removal of dust and spills with a dry or damp cloth
Cable management	No integrated cable routing features, designed for static non-electronic storage
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential study application	Placed against a wall to store books, office documents and desk accessories
Living room display use	Positioned as a decorative storage unit for art objects, photo frames and media collections
Home entryway storage	Used near entry to store daily essentials, display curated decor and conceal out-of-season items
Small office storage	Installed in private offices to store reference books, work materials and branded decor
Library display zone	Used in small community or office libraries for featured book displays and concealed supply storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic and kitchen storage furniture, applicable for tip-over and load testing
EN 12521:2015	Furniture strength, durability and safety for domestic storage, applicable for hinge and shelf performance checks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional and structural quality checks
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable for indoor air quality acceptance
GB/T 4893.8-2013	Surface abrasion resistance test for furniture coatings, applicable for finish durability verification
GB/T 10357.5-2017	Furniture mechanical performance test for storage units, applicable for load capacity validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural quality checks;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable for indoor air quality acceptance;
3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture coatings, applicable for finish durability verification;
4. GB/T 10357.5-2017: Furniture mechanical performance test for storage units, applicable for load capacity validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BC-WN-3CUB-3RBD-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BC-WN-3CUB-3RBD-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BC-WN-3CUB-3RBD-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

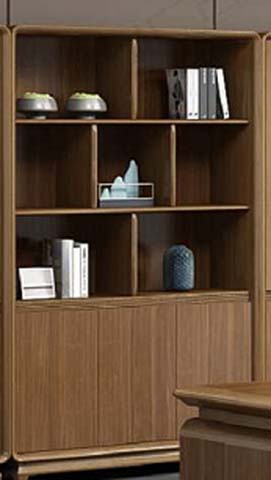

The Walnut Finish Freestanding Bookcase with Asymmetrical Open Upper Cubbies and 3 Ribbed Lower Doors (model BC-WN-3CUB-3RBD-2400) is an unbranded bookcase with closed storage that balances visual interest and functional storage for a range of interior settings. Visually, the unit features a sleek walnut wood-grain matte veneer exterior, with an upper 1600 mm tall open storage section holding three tiers of asymmetrically divided cubbies, and a lower 800 mm tall closed cabinet section fitted with three vertically ribbed panel doors. The asymmetrical cubby layout creates dynamic display space, while the ribbed door panels add subtle textural contrast to the smooth wood-grain surfaces, accented with solid wood edge trim for a polished, finished look.
Constructed around a high-density engineered wood substrate, the unit includes 25 mm thick fixed open shelves, 18 mm thick carcass side panels and door panels, a 9 mm thick medium-density fiberboard back panel joined with tongue-and-groove joinery, and an engineered wood base plinth finished in matching walnut laminate. Additional structural details include powder-coated steel shelf support brackets, soft-close zinc alloy buffer hinges, and a scratch-resistant matte polyurethane lacquer surface coating. All open shelves are permanently fixed to boost structural rigidity, with a total unit static load capacity of 80 kg: each fixed open shelf supports 20 kg, each lower cabinet shelf supports 15 kg, and the door hinges are rated for 80000 open/close cycles with a 110-degree swing for unobstructed interior access. The unit includes 2 anti-tip wall anchors to secure the top to wall studs and prevent forward tipping, and its wipe-clean matte finish allows easy removal of dust and spills with a dry or damp cloth. The design has no integrated cable routing, and is intended for static, non-electronic storage.
This bookcase suits a range of spaces: it can be placed against a wall in residential studies to hold books, office documents, and desk accessories; positioned in living rooms as a decorative storage unit for art objects, photo frames, and media collections; used near home entryways to store daily essentials, display curated decor, and conceal out-of-season items; installed in private small offices for reference books, work materials, and branded decor; or deployed in small community or office libraries for featured book displays and concealed supply storage.
For procurement, note the unit ships as one set across 2 cartons, with a packaged gross weight of 130 kg per set and total packaging volume of 0.9 m³ per set. Assembly takes 40 minutes per set, and purchasers should plan for appropriate wall installation space matching the 1200 x 400 x 2400 mm overall dimensions, with 300 mm deep shelves to accommodate intended stored items.
