PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 350 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Reference net weight	185 kg
Open shelf uniform static load capacity	25 kg per shelf
LED strip operating lifespan	50000 hours
Recommended maximum wall mounting weight	220 kg
Assembly screw pull-out resistance	1200 N per fixing
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer structural frame	1.5mm thick matte dark gray powder-coated steel
Open shelf carcass panels	E0 grade 18mm MDF with matte dark gray lacquer finish
Closed cabinet door panels	E0 grade 18mm MDF with dark smoked oak wood veneer
Internal shelf panels	25mm thick matte lacquered engineered wood
Integrated lighting strips	24V low-voltage 3000K warm white LED strips
Central niche back panel	12mm thick matte dark gray MDF backing
Cabinet mounting hardware	Zinc-plated steel wall brackets and expansion bolts
Door hinge components	Soft-close concealed steel hinges
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated shelf lighting	Warm white LED strips cast indirect light forward from each open shelf front edge
Closed storage compartments	3 soft-closing hinged door units conceal stored items from view
Central tall niche	Open vertical display slot sized for decorative objects or tall awards
Left open shelving	Three evenly spaced open shelves provide easy-access display and storage
Right mixed storage layout	Alternating open display shelves and closed storage bays balance access and concealment
Wall-mounted installation	Fixed to load-bearing walls to free floor space below the cabinet
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office back wall	Installed behind executive desks to display awards and store office documents
Corporate reception area	Mounted on reception walls to display brand materials and decorative items
High-end meeting room	Installed along meeting room walls to store presentation materials and decor
Luxury home study	Used as full-wall storage for books and collectibles in residential studies
Display area in boutique offices	Mounted to showcase company products and branded merchandise

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic and kitchen storage furniture, applicable for storage load testing
EN 60598-1:2021	General safety requirements for luminaires, applicable for integrated LED strip systems
EN 312:2010	Performance requirements for particleboard panels, applicable for engineered wood carcass components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel construction and finish quality
GB 7000.201-2008	Safety requirements for fixed general-purpose luminaires, applicable for integrated LED lighting
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable for all engineered wood components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel construction and finish quality;
2. GB 7000.201-2008: Safety requirements for fixed general-purpose luminaires, applicable for integrated LED lighting;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for all engineered wood components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DIS-WM-LED-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DIS-WM-LED-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DIS-WM-LED-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

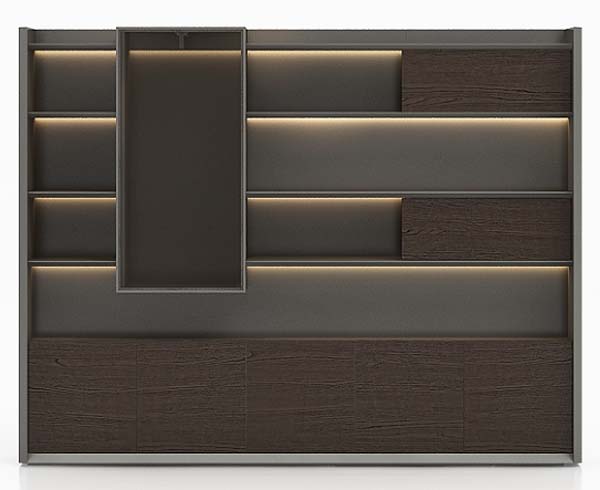

This Wall-Mounted LED Illuminated Office Display Storage Cabinet features a sleek modern silhouette with a balanced mixed open and closed storage layout that presents a cohesive, polished visual profile. Its design centers on a tall central open niche flanked by three evenly spaced open shelves on the left, and an alternating arrangement of open display shelves and closed storage bays on the right, creating visual rhythm while separating display and concealed storage functions. The matte dark gray structural framing pairs with matte lacquered panels and dark smoked oak veneer door fronts for a refined, understated aesthetic suited to premium interiors. The unit is mounted flush to load-bearing walls, leaving clear floor space beneath for an open, uncluttered spatial feel.
Constructed for durable long-term use, the cabinet features a powder-coated steel outer frame paired with E0 grade engineered wood panels, finished with matte dark gray lacquer on open shelf and niche surfaces and dark wood veneer on closed door fronts. Concealed soft-close steel hinges support smooth, quiet operation of the three hinged door units, while zinc-plated steel brackets and expansion bolts deliver secure wall mounting. Thick internal shelves and edge banding reinforce structural integrity, and integrated 24V low-voltage warm white LED strips are positioned along the front edge of each open shelf to cast soft indirect forward light across displayed items, with a long operational lifespan. Open shelves support evenly distributed static loads, and drawer slides are engineered for smooth, durable performance under regular use. Cable openings may be integrated to support tidy power and data routing as needed.
Functionally, the cabinet balances accessible open display and concealed storage: open shelves and the central tall vertical niche accommodate awards, decorative objects, branded merchandise or collectibles, while the soft-closing closed compartments keep documents, presentation materials or personal items out of view. It is well suited for installation behind executive desks in leadership offices, on corporate reception walls to showcase brand materials, along high-end meeting room walls to organize presentation supplies, in luxury residential home studies for book and collectible storage, or in boutique office display areas to highlight company products.
When procuring this unit, teams should confirm wall load-bearing capacity meets the recommended maximum mounting weight requirement, allocate sufficient installation time for wall anchoring and assembly, and account for multi-carton delivery logistics. The unbranded model works as a standalone full-wall storage solution or as part of a coordinated modern interior furnishing scheme.
