PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

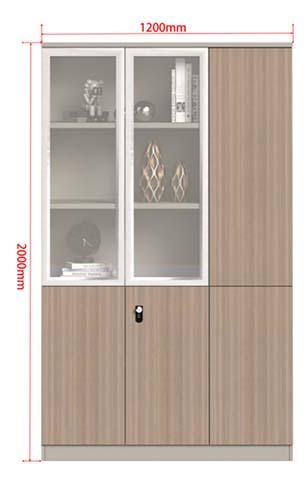

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load per shelf	25 kg
Recommended total distributed load	180 kg
Top surface load	35 kg
Lower compartment load per level	35 kg
Hinge service rating	50,000 opening cycles
Door lock cylinder key combinations	200 combinations
Net storage volume	0.86 cubic m
Product net weight	118 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	18 mm wood-grain engineered board with sealed edges and matching vertical ribbed exterior finish
Upper door panels	Clear glass set in light-colored 55 mm framed doors with central mullion
Lower and right doors	18 mm wood-grain board doors with vertical linear texture and edged perimeter
Shelves	25 mm board shelves with edge banding; two visible upper shelves plus concealed lower shelving
Back panel	5 mm engineered backing board fitted into the cabinet rebate
Lock and hinges	Brushed-metal lock housing, black handle insert, and concealed steel hinges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage zoning	Upper glazed bay provides display storage, while lower doors and the full-height right column conceal files and supplies.
Locking function	Lower center door includes a key lock and linked handle for controlled access to enclosed office storage.
Door access	Four hinged doors provide front access; upper doors swing from side stiles and lower doors open below the display zone.
Shelf organization	Adjustable shelf support holes should provide 32 mm vertical pitch for binder-height changes and mixed storage.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office filing and display	Suitable for executive offices, meeting rooms, or reception areas needing visible awards above and locked document storage below.
Managed storage deployment	Recommended for projects requiring a 1200 mm-wide cabinet beside desks or partitions, with binders, samples, books, and display objects in separate zones.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ODF-G2W2-12002000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ODF-G2W2-12002000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ODF-G2W2-12002000Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Office Storage Cabinet with Upper Glass Doors and Lower Wood Doors, model ODF-G2W12002000is a vertical storage solution with a mixed display-and-concealment layout. Its upper glazed bay presents items through clear glass set in light-colored framed doors with a central mullion, while wood-grain doors below and along the full-height right column hide files, supplies, and other stored contents. This arrangement creates a structured visual balance between open presentation and private office storage. The cabinet is built from wood-grain engineered board with sealed edges and a matching vertical ribbed exterior finish. Board shelves with edge banding provide two visible upper shelves plus concealed lower shelving. A recessed base supports the cabinet, while a brushed-metal lock housing, black handle insert, metal lock, and concealed steel hinges complete the functional hardware. The glass panels are set in framed doors, and the lower doors use wood-grain board with a vertical linear texture and edged perimeter. Storage is organized into distinct zones. The upper section is suited to awards, books, display objects, or frequently referenced materials that benefit from visibility. The lower doors and right-hand column offer enclosed space for binders, documents, samples, and office supplies. Four hinged doors provide front access, with upper doors swinging from side stiles and lower doors opening beneath the display zone. The lower center door includes a key lock and linked handle for controlled access, and the lock cylinder offers multiple key combinations. Adjustable shelf support holes are intended to allow shelf-height changes for binder storage and mixed items. Rated capacities help with planning: each shelf is recommended for static loads up to 25 kg, the top surface supports up to 35 kg, and each lower compartment level supports up to 35 kg, with a recommended total distributed load of 180 kg. The concealed hinges carry a service rating of 50,000 opening cycles, and the cabinet provides 0.86 cubic meter of net storage volume. This model is well suited to executive offices, meeting rooms, reception areas, and project-based installations where display storage and secured document storage are needed together. It can be placed beside desks or partitions to centralize binders, reference materials, samples, and presentation objects. Procurement teams should plan for assembly, coordinated delivery, and suitable floor placement, while confirming packaging details and load requirements against the intended installation. As an unbranded cabinet, it is particularly appropriate for commercial fit-outs seeking a functional wood-grain storage system without a prominent manufacturer label.
