PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	165 kg
Shelf uniform static load capacity	30 kg
Integrated LED power input	24 W
Recommended maximum load per cabinet	320 kg
LED rated lifespan	30000 hours
Sliding door cycle rating	50000 open/close cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	18mm E1-grade particleboard with melamine finish
Door and drawer fronts	18mm MDF with matte taupe polyurethane lacquer
Sliding door hardware track	Anodized aluminum alloy with nylon guide rollers
Horizontal shelf surfaces	25mm dark gray melamine-faced engineered wood
Integrated lighting	Recessed 4000K warm-white SMD LED strips
Edge banding	1mm ABS matching color edging on all exposed panel edges
Base plinth	18mm laminated engineered wood with moisture-resistant coating
Drawer slides	Full-extension soft-close ball bearing slides
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Left storage access	Two-panel sliding door system with horizontal travel, concealing full-height enclosed storage
Open display storage	8 open shelf compartments across 5 tiers, divided by vertical partitions
Concealed drawer storage	4 handleless push-to-open soft-close drawers arranged in two horizontal pairs
Integrated accent lighting	Recessed under-shelf LED strips illuminate all open shelf bays, hardwired for wall connection
Shelf adjustability	Adjustable shelf pins allow 32mm height increments for open compartments
Cable management	Pre-cut rear cable access ports for LED wiring and small device power
Soft-close mechanism	All drawers and sliding doors include soft-close dampers to prevent slamming
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Installed behind executive desks for book storage and corporate display of awards and decor
Open office reception area	Used as a feature display wall for company literature and decorative accents in lobby spaces
Private study room	Installed in home or corporate study spaces for combined book storage and concealed supply storage
Conference room storage	Mounted in meeting rooms to store reference materials, presentation supplies, and company branding items
Luxury residential living space	Used as a premium display cabinet for collectibles, books, and media in modern residential interiors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic and office storage furniture, applicable for structural load testing
EN 62471:2008	Photobiological safety of LED lighting products, applicable for integrated strip light safety

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and finish quality acceptance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, minimum E1 grade required for panel materials
GB 7000.204-2008	Safety requirements for built-in furniture lighting systems, applicable to integrated LED components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality acceptance;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for panel materials;
3. GB 7000.204-2008: Safety requirements for built-in furniture lighting systems, applicable to integrated LED components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DIS-CAB-2400SL-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DIS-CAB-2400SL-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DIS-CAB-2400SL-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

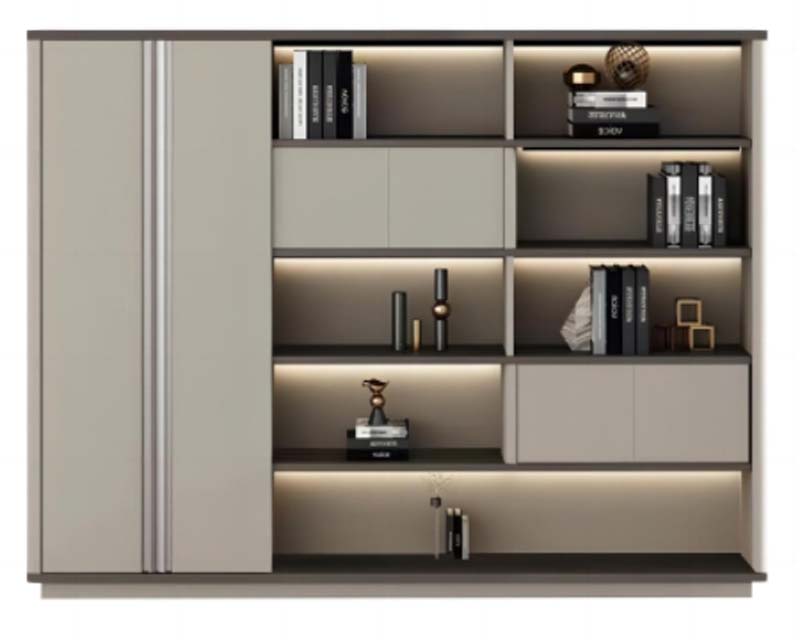

The Modern Illuminated Sliding Door Bookcase Display Cabinet is a contemporary, unbranded office display bookcase cabinet identified by model DIS-CAB-2400SL-LED, designed to balance open display and concealed storage with integrated functional lighting. Its visual form blends a structured, linear layout with a matte taupe lacquer finish on door fronts, paired with dark gray melamine-faced horizontal shelves, finished with color-matched edge banding on all exposed panel edges for a seamless, polished appearance. The cabinet is constructed from E1-grade engineered wood, with a particleboard carcass, MDF door and drawer fronts, anodized aluminum alloy sliding tracks with nylon guide rollers, a moisture-resistant laminated engineered wood base plinth, and full-extension soft-close ball bearing drawer slides. Recessed 4000K warm-white SMD LED strips are integrated into the unit, alongside durable hardware rated for 50000 sliding door open/close cycles and LED strips with a 30000-hour rated lifespan. Functionally, the unit combines three core storage zones: a left two-panel sliding door section with full-height enclosed storage, 8 open shelf compartments across 5 tiers divided by vertical partitions, and 4 handleless push-to-open soft-close drawers arranged in two horizontal pairs. All drawers and sliding doors are fitted with soft-close dampers to prevent slamming, while adjustable shelf pins enable 32mm height increments for open compartments to accommodate items of varying sizes. The recessed under-shelf LED strips illuminate all open shelf bays, hardwired for wall connection, and pre-cut rear cable access ports support tidy LED wiring and small device power routing. Each shelf supports 30 kg of uniform static load, with a recommended maximum total cabinet load of 320 kg; the unit weighs 165 kg net, with 25 mm thick carcass panels and shelves, 22 mm thick door fronts, and 9 mm thick back panels. This cabinet is well-suited for installation as an executive office backdrop behind desks for book storage and award display, as a feature wall in open office reception areas to showcase company literature and decor, as combined storage and display in private home or corporate studies, as reference and supply storage in conference rooms, or as a premium display piece for collectibles and media in luxury modern residential living spaces. For procurement, note that each unit ships in multiple cartons, with a reference assembly time of 40 minutes per set and a total packaged volume of 0.65 m³, requiring pre-planned space allocation for delivery and on-site assembly.

Modern Illuminated Sliding Door Bookcase Display Cabinet Specifications
