STG-SLD-24040

Code：QEHYBSV1
Request supplier quotes

Modern Multi-Compartment Office Storage Cabinet with Sliding Door and Color-Blocked Dividers Key Specifications 2026-08-04 17:09

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

STG-SLD-24040

1 active supplier(s) >>
CN汇帮家具SupplierYear 1Company Profile
Product supplierModern Multi-Compartment Office Storage Cabinet with Sliding Door and Color-Blocked Dividers，Particleboard
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions2400 x 400 x 2000 mm
Left open shelving unit width400 mm
Central sliding door panel width600 mm
Right storage section width1400 mm
Lower closed cabinet door height700 mm
Left side fixed shelf spacing320 mm
Interior brown divider shelf depth320 mm
Top shelf clearance height380 mm
Adjustable foot height20 mm
Sliding door panel thickness18 mm
Fixed shelf panel thickness18 mm
Side panel thickness25 mm
Left open section fixed shelf spacing320 mm
Interior terracotta divider shelf depth320 mm
Right section top open shelf clearance height380 mm
Carcass Panel Thickness25 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight range185 kg
Per fixed shelf static load capacity25 kg
Recommended maximum uniform total load300 kg
Adjustable foot leveling range15 mm
Shelf surface abrasion resistance300 cycles
Hardware cyclic durability10000 cycles
Recommended number of users12
Storage capacity for A4 binders80
Adjustable foot maximum vertical leveling range15 mm
Shelf surface abrasion resistance rating300 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer cabinet frame and main panels25 mm thick melamine-faced particleboard, white matte finish, sealed edge banding
Central sliding door panel18mm thick medium-density fiberboard with light beige vertical ribbed thermofoil finish
Lower right cabinet doors18mm thick melamine-faced particleboard, light grey matte finish, soft-close concealed hinges
Interior brown accent dividers and feature shelves18mm thick melamine-faced particleboard, warm terracotta matte finish, fixed dowel mounting
Left section brown feature shelf18mm thick melamine-faced particleboard, matching terracotta accent finish, fixed position in left open bay
Sliding door track hardwareCold-rolled steel with powder-coated white finish, top-hung sliding track with nylon guide rollers
Door hingesZinc-alloy concealed soft-close hinges, 105 degree opening angle
Leveling feetNylon base with steel threaded stem, chrome finish, adjustable height
Edge banding1mm thick PVC edge banding, color-matched to adjacent panels, hot-melt adhesive application
Internal shelf supportsMetal shelf pins with zinc plating, 5mm diameter, seated in pre-drilled cabinet holes
Outer cabinet frame and main carcass panels25 mm thick melamine-faced particleboard, white matte finish, 2mm PVC sealed edge banding
Lower right cabinet hinged doors18mm thick melamine-faced particleboard, light grey matte finish, fitted with soft-close concealed hinges
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Sliding door accessTop-hung central sliding door travels horizontally along steel track to conceal middle storage bay, no outward swing to save floor space
Mixed open and closed storageThree lower closed doors conceal dust-protected storage, while open upper and left bays provide quick-access storage and display space
Asymmetric cubby organizationInterior terracotta dividers create variable-sized open cubbies for sorting small items, books and decorative objects
Soft-close door operationLower hinged doors fitted with soft-close hinges to prevent slamming and reduce operational noise in office environments
Leveling adjustmentBase adjustable feet rotate to compensate for uneven floors, eliminating cabinet wobble and ensuring flush door alignment
Fixed shelf storage tiersLeft bay features 5 fixed horizontal shelves sized for vertical binder storage, providing consistent document organization
Top-surface displayFlat, level cabinet top supports placement of plants, decorative items or frequently used office objects
Flush finish integrationAll doors and panels sit flush with outer cabinet frame for a seamless modern aesthetic, no protruding hardware on visible front faces
Sliding door access operationTop-hung central sliding door travels 600mm horizontally along steel track to conceal middle storage bay, no outward swing to maintain 900mm minimum aisle circulation space
Dual-zone mixed storage layoutThree lower closed doors conceal dust-protected storage for less frequently used items, while open upper and left bays provide immediate access for frequently used documents and display pieces
Soft-close hinged door operationLower hinged doors fitted with soft-close hinges that engage 15 degrees from closed position to prevent slamming and reduce operational noise below 40dB in office environments
Floor leveling adjustmentBase adjustable feet rotate to provide 15mm of vertical adjustment to compensate for uneven floors, eliminating cabinet wobble and ensuring flush door and track alignment
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of packages4
Largest carton dimensions2450 x 450 x 120 mm
Total gross shipping weight210 kg
Total shipping volume (CBM)0.54
Assembly time120 minutes
20ft GP container loading quantity52 units
40ft HQ container loading quantity126 units
Packaging protection5mm thick EPE foam wrapping per panel, 5-layer corrugated carton outer, corner cardboard protectors
Number of shipping packages4
Largest shipping carton dimensions2450 x 450 x 120 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Open-plan office team storage zonesProvides centralized shared storage for documents, office supplies and display items for workgroups, with sliding door design saving circulation space
Executive office backdrop storageActs as a backdrop cabinet behind executive desks, combining display for awards and books with concealed storage for files and personal items
Meeting room reference material storageStores meeting documents, reference materials and presentation supplies along meeting room walls, with open shelves for quick access during sessions
Reception area display and storageFunctions as a reception backdrop to display company branding materials, brochures and decor, while lower closed doors store administrative supplies
Library or study room book storageAdjustable and fixed shelves accommodate books of varying sizes, with closed lower storage for less frequently used items
Co-working space shared storageDivided storage zones support individual user allocation in co-working environments, with durable surface finish suitable for high-frequency use
Quiet study or reference room book storageFixed and divided shelves accommodate books of varying sizes, with closed lower storage for archival materials, and 25kg per shelf load rating supporting full book loads
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 14073-2:2004 Office furniture - Storage furniture - Part 2: Safety requirementsApplicable safety standard for structural stability, load capacity and sharp edge requirements for commercial office storage cabinets
EN 312:2010 Particleboards - SpecificationsApplicable material standard defining performance grades for particleboard panels suitable for furniture construction
EN 13986:2004 Wood-based panels for use in construction - Characteristics, evaluation of conformity and markingApplicable standard for wood-based panel performance and emission classification for indoor furniture use
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furnitureApplicable as baseline acceptance standard for panel construction, dimensional tolerance, edge quality and structural stability for wooden office cabinets
GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panelsApplicable mandatory standard for formaldehyde emission limits, requiring E1 grade (≤0.124mg/m³) for indoor office use panels
GB/T 4897.3-2003 Particleboard - Part 3: Requirements for furniture useApplicable material standard for particleboard panels used in cabinet structure, defining minimum physical and mechanical property requirements
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable as baseline acceptance standard for panel construction, dimensional tolerance, edge quality and structural stability for wooden office cabinets;
2. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels: Applicable mandatory standard for formaldehyde emission limits, requiring E1 grade (≤0.124mg/m³) for indoor office use panels;
3. GB/T 4897.3-2003 Particleboard - Part 3: Requirements for furniture use: Applicable material standard for particleboard panels used in cabinet structure, defining minimum physical and mechanical property requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STG-SLD-24040

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STG-SLD-24040

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STG-SLD-24040Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

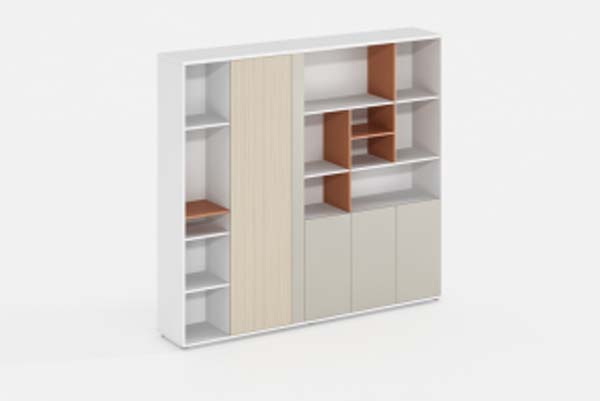

The Modern Multi-Compartment Office Storage Cabinet with Sliding Door and Color-Blocked Dividers (model STG-SLD-24040, unbranded) presents a streamlined full-height silhouette with a flush front profile and intentional color blocking for a cohesive modern aesthetic. Its layout is divided into three distinct front zones: a narrow left open shelving bay, a central full-height ribbed sliding door panel, and a wider right section that combines open upper cubbies with three equal-width lower hinged doors. Warm terracotta-colored laminated dividers create asymmetric, variable-sized open cubbies within the right upper section, adding subtle visual contrast against the matte white outer cabinet frame and light grey lower doors, with no protruding hardware to disrupt the seamless appearance. The cabinet’s outer carcass and side panels are constructed from thick melamine-faced particleboard with color-matched PVC edge banding for reinforced structural rigidity. The central thermofoil sliding door and interior fixed shelves use standard furniture-grade panel thickness to balance rigidity and load stability, while lower hinged doors are fitted with zinc-alloy concealed soft-close hinges. The top-hung sliding door runs on powder-coated cold-rolled steel track with nylon guide rollers, and hidden nylon-and-steel adjustable feet sit at the base to keep the cabinet plumb on uneven surfaces. Functionally, the unit balances quick access and concealed, dust-protected storage. The left bay holds five fixed shelves sized to fit standard A4 binders vertically for consistent document organization. The central sliding door operates without outward swing to preserve aisle circulation space, covering a middle storage bay for items that do not require constant access. The right section’s upper open cubbies are sized for books, decor, or large office supplies, while the lower soft-close doors reduce operational noise by preventing slamming, enclosing space for infrequently used items. The flat continuous top surface supports display of plants, decor, or frequently used objects, and the fixed shelf load rating supports standard office storage demands for shared team use. This cabinet suits a range of commercial and select residential spaces. It works well as centralized shared storage in open-plan office team zones, a streamlined backdrop for executive offices, wall-mounted reference storage in meeting rooms, a public-facing display and supply cabinet in reception areas, durable shared storage in co-working spaces, or book and archival storage in quiet study and reference rooms. For procurement, note that the unit ships flat in four separate packages with protective foam and corrugated carton wrapping to reduce transit damage risk, requiring two-person assembly. When planning bulk orders, confirm container loading quantities align with project shipping timelines, and verify board grade details via supplier bill of materials prior to final purchase to ensure alignment with project durability requirements.
