PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per open shelf static load capacity	25 kg
Net weight reference	75 kg
Storage volume (closed section)	620 L
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body panels	Particleboard or MDF with melamine laminate
Door panels	Wood-grain textured melamine-faced panel
Open shelf panels	18 mm thick wood-based panel
Edge banding	PVC edge sealer on panel edges
Door hinges	Concealed soft-close metal hinges
Back panel	Thin fiberboard back panel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display function	4-tier open shelves for decor and book display
Closed storage function	3-level door-enclosed storage for concealed items
Freestanding installation	Stands on flat floor with optional wall anchor
Modular combination compatibility	Can be paired with matching cabinet units

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room display and storage	Suitable for living room wall to display decor and store daily items
Study or home office storage	Suitable for study area to store books and office supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Applicable for domestic and kitchen storage furniture safety requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for wood furniture general technical requirements
GB 18584-2001	Applicable for formaldehyde emission limits for wood furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for wood furniture general technical requirements;
2. GB 18584-2001: Applicable for formaldehyde emission limits for wood furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TCSC-W1200-D400-H2200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TCSC-W1200-D400-H2200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TCSC-W1200-D400-H2200Open Export Tool

Quick Actions

Post an RFQ

Product Description

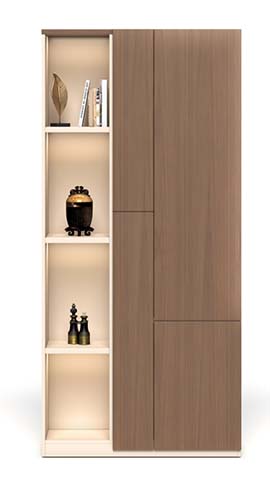

This tall side cabinet, model TCSC-W1200-D400-H2200, is an unbranded freestanding storage solution designed with a modern wood-grain aesthetic that balances visual openness and functional organization. Its design combines four tiers of open display shelving with three levels of door-enclosed closed storage, creating a layered layout that keeps frequently showcased items visible while concealing personal or less decorative belongings. The tall vertical profile makes use of vertical space without overwhelming a room’s footprint. Constructed from wood-based panels with a durable wood-grain laminate finish, the cabinet delivers consistent visual texture across all visible surfaces. Its carcass and shelves use 25 mm thick panels for structural stability, while door fronts measure 22 mm thick and open shelf panels are 18 mm thick. A 9 mm thin fiberboard back panel reduces overall weight while maintaining structural shape, and all panel edges are sealed with PVC edge banding to prevent moisture damage and create a polished look. Concealed soft-close metal hinges provide smooth, quiet operation, and the unit stands freely on flat floors with optional wall mounting hardware available for added stability. Practical functionality is central to the design: open shelves support display of decor, books, and personal mementos, while the enclosed 620-liter storage volume accommodates bulkier or private items. Each open shelf supports a static load of 25 kg, and distributed shelf load reaches 30 kg per shelf. Drawer slides, where applicable, hold 45 kg per pair and are rated for 50,000 use cycles, while hinges open to 165 degrees and are rated for 80,000 cycles. The cabinet is compatible with matching modular units, allowing users to expand storage configurations as needed. This cabinet fits seamlessly in living rooms, where it can line a wall to showcase decorative pieces and store daily essentials, and in studies or home offices, where it organizes books and office supplies. For procurement, note that units over 1200 mm in height require a minimum of two wall fixing points for anti-tip safety. Assembly takes 40 minutes per set, and the product ships in two cartons with a total gross weight of 100 kg and total packaging volume of 0.65 cubic meters. The net weight of the fully assembled unit is 75 kg.

Tall Side Cabinet with Open Display Shelves and Closed Storage Doors Specifications
