Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| left/right single door cabinet width | 600 mm each | |
| central section width | 1200 mm | |
| open shelf depth | 350 mm | |
| upper open shelf clear height per tier | 420 mm | |
| lower central cabinet door height | 720 mm | |
| integrated tapered base foot height | 80 mm | |
| horizontal panel thickness (top/shelves) | 25 mm | |
| carcass side panel thickness | 18 mm | |
| back panel thickness | 9 mm | |
| edge banding thickness | 2 mm | |
| door panel thickness | 20 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| product net weight | 145 kg | |
|---|---|---|
| uniform shelf static load capacity | 35 kg | |
| hinged door maximum static load | 20 kg | |
| recommended maximum stored content weight | 280 kg | |
| intended user count per unit | 1 person | |
| hinge opening and closing cycle rating | 80000 cycles | |
| drawer slide (if fitted) cycle rating | 50000 cycles | |
| surface abrasion resistance rating | 2000 revolutions | |
| warranty period for cabinet structure | 5 years | |
| warranty period for hardware components | 10 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| carcass panels | E0-grade medium density fiberboard with walnut grain paint finish | |
|---|---|---|
| door panels | Engineered wood core with vertical fluted walnut veneer overlay | |
| trim and edge details | Solid walnut wood molded rounded edge trim | |
| base plinth and feet | Solid hardwood tapered integrated feet with curved plinth | |
| hinge hardware | Cold-rolled steel soft-close concealed hinges | |
| lock components (if fitted) | Zinc alloy keyed cam locks for closed compartments | |
| back panel | 9mm thick plywood with matching walnut finish backing | |
| shelf panels | 25mm thick particleboard core with walnut laminate overlay | |
| surface coating | Matte UV-cured polyurethane paint finish | |
| edge banding | 2mm thick PVC edge banding applied with PUR adhesive | |
| anti-tip hardware | Steel wall anchor brackets with expansion screws | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

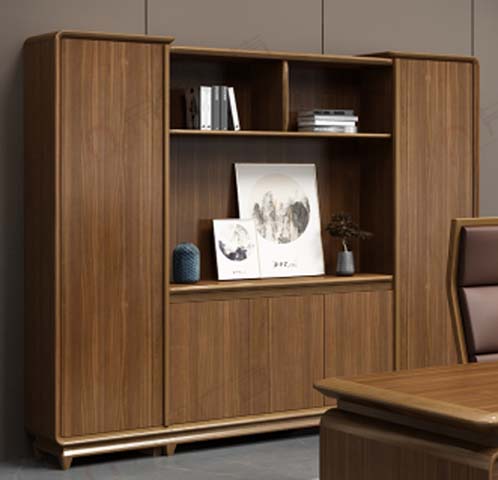

| upper central open shelving | Two-tier divided open storage for displayed books, decor and reference files | |
|---|---|---|
| left tall closed cabinet | Full-height single hinged door with internal adjustable shelves for concealed file storage | |
| right tall closed cabinet | Full-height single hinged door with internal adjustable shelves for concealed file storage | |
| lower central closed storage | Three vertical hinged doors covering lower compartment for bulk office supply storage | |
| hinge operation | Soft-close 110-degree opening concealed hinges with no-slam damping | |
| shelf adjustability | Shelf pins allow 32mm incremental height adjustment for internal shelves | |
| locking capability | Keyed locks fitted to all closed door compartments for secure document storage | |
| wall anchoring | Two steel anti-tip anchors secure cabinet to wall to prevent forward tipping | |
| base clearance | 80mm elevated base allows cleaning access and floor cable routing beneath unit | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| executive private office | Wall-mounted behind matching executive desk as background storage and display unit | |
|---|---|---|
| manager/Director office | Stores confidential files, reference books and displayed awards or decor | |
| conference room storage | Holds meeting materials, presentation supplies and decorative items | |
| high-end home office study | Functions as a full-height bookcase and document storage for residential executive suites | |
| recommended companion furniture | Paired with matching walnut executive desk, leather executive chair and visitor seating set |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 312:2010 | Particleboard performance classification for load-bearing furniture use | |
| EN 622-5:2009 | MDF board requirements for dry-zone interior furniture applications |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance and durability standard for office use |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E0 grade required for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specification for furniture structural and shelf use | |
| GB/T 11718-2021 | Medium density fiberboard specification for cabinet carcass and door panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet structural performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E0 grade required for indoor office use; 3. GB/T 4897.3-2015: Particleboard specification for furniture structural and shelf use; 4. GB/T 11718-2021: Medium density fiberboard specification for cabinet carcass and door panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
