PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight range	165 kg
Fixed shelf load capacity	30 kg per shelf level
Display compartment count	8 open cubbies
Closed door count	7 doors
Binder storage capacity	180 standard 75 mm binders
Warranty reference	5 years
Color option count	2 visible colors
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Case panels	18 mm engineered-wood boards with warm taupe-grey matte laminate or melamine facing
Door fronts	18 mm engineered-wood substrate with matte off-white thermofoil, laminate or painted surface
Back panel	9 mm hardboard, MDF or engineered-wood back panel recessed into the case
Edge treatment	Matching PVC or ABS edge banding on exposed shelf and door edges
Base plinth	18 mm engineered-wood plinth in taupe-grey finish with floor-level support rail
Door hinges	Concealed European-style cabinet hinges, 2 units per door

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display storage	Three rows of open cubbies provide immediate access to books, binders and decorative objects without door interference.
Concealed storage	Five lower slab doors conceal clutter and archive items while maintaining a continuous clean front.
Right tall storage	The full-height right cabinet uses two stacked doors for brooms, tall files, adjustable shelves or locked office materials.
Wall safety anchoring	The freestanding case should be fixed to a structural wall with two anti-tip brackets to resist forward overturning.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	180 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office and manager workspace	Suitable behind or beside a desk for books, awards, samples and concealed office materials, combining display with tidy storage.
Meeting room or collaborative area	The 3.2 m width supports shared reference materials and decor while closed lower doors reduce visual clutter.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121:2013	Applies to safety, strength, durability and stability requirements for non-domestic storage cabinets
EN 16122:2012	Applies to test methods for strength, durability and stability of domestic and non-domestic storage furniture
EN 717-1:2004	Applies to formaldehyde release determination by chamber method for wood-based panels
EN 14073-2:2004	Applies to safety requirements for office storage furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2012	Applies to storage cabinets, shelving, locks, doors, stability and load performance in commercial environments

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	Applies to dimensional tolerances, materials, workmanship and structural quality of wooden furniture cabinets
GB/T 10357.5-2011	Applies to cabinet strength and durability test methods for shelves, doors and structural loading
GB 18580-2017	Applies to formaldehyde emission limits for engineered-wood components used in indoor furniture
GB/T 28202-2020	Applies to hardware accessories used on furniture, including hinges and connecting fittings

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: Applies to dimensional tolerances, materials, workmanship and structural quality of wooden furniture cabinets;
2. GB/T 10357.5-2011: Applies to cabinet strength and durability test methods for shelves, doors and structural loading;
3. GB 18580-2017: Applies to formaldehyde emission limits for engineered-wood components used in indoor furniture;
4. GB/T 28202-2020: Applies to hardware accessories used on furniture, including hinges and connecting fittings;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FBK-3200-6DOOR-OPEN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FBK-3200-6DOOR-OPEN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FBK-3200-6DOOR-OPENOpen Export Tool

Quick Actions

Post an RFQ

Product Description

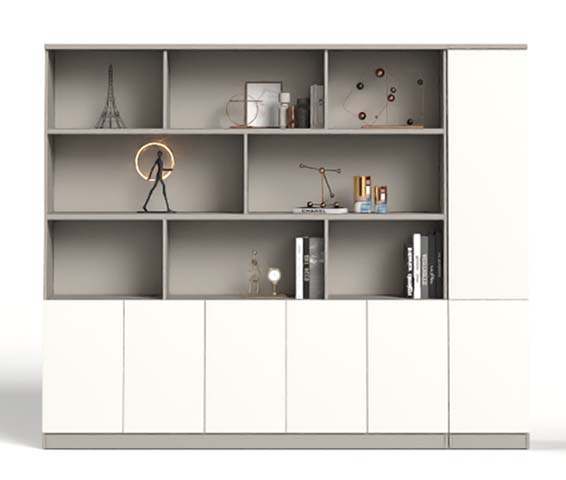

The Floorstanding Open and Closed Storage Bookcase is a modern rectangular storage system with a strong horizontal presence. Warm taupe-grey open shelving is paired with matte off-white cabinet doors and a matching engineered-wood plinth, creating a clean, organized appearance suited to professional interiors. Its layout combines open display, lower concealed storage, and a full-height right cabinet, balancing accessible shelving with a tidy front elevation. The 3200 x 400 x 2000 mm bookcase is built as a floorstanding cabinet with a recessed 9 mm hardboard, MDF, or engineered-wood back panel. Case panels, door fronts, and the base plinth use 18 mm engineered-wood boards, while the supplied specification also lists 25 mm carcass panels and shelves and 22 mm door or drawer fronts. Exposed shelf and door edges are protected by matching PVC or ABS edge banding. The seven doors use concealed European-style hinges, with two hinges per door, and the plinth includes a floor-level support rail. The unit has two visible colors. Three rows of open cubbies provide eight display compartments for books, binders, awards, decorative objects, and frequently used reference items. Five lower slab doors conceal clutter and archive materials, while the right-hand tall cabinet uses two stacked doors for brooms, tall files, adjustable shelving, or secured office materials. Fixed shelves support 30 kg per shelf level, and the configuration can hold 180 standard 75 mm binders. Because this is a tall freestanding case, installation should include fixing it to a structural wall with two anti-tip brackets to help prevent forward overturning. The bookcase is well suited to executive offices and manager workspaces, where it can sit behind or beside a desk for both presentation and concealed office storage. It also works in meeting rooms and collaborative areas, where its 3.2-meter width can accommodate shared materials and decor while closed doors reduce visual clutter. Procurement planning should account for delivery in 2 cartons, a total gross weight of 180 kg, a packaging volume of 0.65 cubic meters per set, and a reference assembly time of 40 minutes per set. The product is unbranded, model FBK-3200DOOR-OPEN, and carries a 5-year warranty reference. Buyers should confirm the final board and door surface options, site access, wall construction, and professional installation requirements before purchase.

Floorstanding Open and Closed Storage Bookcase Specifications
