Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

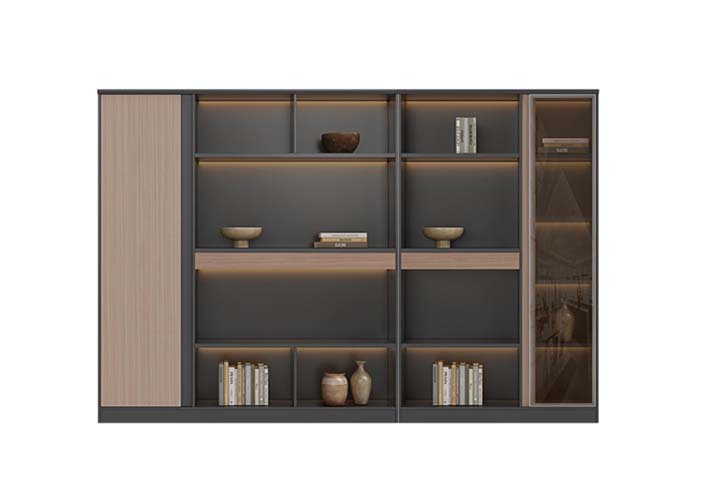

| Overall cabinet dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| Left solid door compartment width | 500 mm | |
| Central open grid section width | 1200 mm | |
| Right glass door compartment width | 400 mm | |
| Middle large open shelf clearance height | 390 mm | |
| Upper small open cubby clearance height | 250 mm | |
| Lower small open cubby clearance height | 250 mm | |
| Horizontal wood accent trim thickness | 25 mm | |
| Tinted glass door panel thickness | 5 mm | |
| Wood panel carcass thickness | 19 mm | |
| Back panel thickness | 4 mm | |
| Edge banding thickness | 1 mm | |
| Adjustable leveling foot height adjustment range | 15 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single open shelf static load capacity | 20 kg | |
|---|---|---|
| Total cabinet gross weight | 110 kg | |
| Anti-tip wall anchor load rating | 50 kg | |
| LED strip power consumption | 12 W per meter | |
| LED service life | 30000 hours | |
| Hinge cycle rating | 100000 open/close cycles | |
| Recommended maximum number of stored hardcover books | 180 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and internal backing panels | E1-grade engineered wood with matte dark charcoal scratch-resistant laminate finish | |
|---|---|---|
| Left solid door and horizontal accent trims | Engineered wood substrate with light oak grain wood veneer, matte clear coat | |
| Right display compartment door | 5mm tinted tempered glass with slim dark metal frame | |
| Accent lighting components | Low-voltage warm white LED strips integrated into underside of wood trim panels | |
| Hardware components | Zinc alloy concealed hinges, metal shelf support pegs, steel anti-tip brackets, plastic adjustable leveling feet | |
| Shelf surfaces | 19mm thick laminated engineered wood with 1mm matching PVC edge banding |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Full-height left solid door and right glass door open via concealed hinges to enclosed storage; 110 degree opening angle for easy access | |
|---|---|---|
| Shelf adjustability | Open and enclosed compartment shelves support 32mm pitch height adjustment via metal support pegs to accommodate varied item sizes | |
| LED lighting operation | Integrated under-trim LED strips activate via wall or touch switch to illuminate open display shelves, with dimmable output for ambient display effect | |
| Stability adjustment | Bottom-mounted adjustable leveling feet compensate for uneven floor surfaces, while included anti-tip brackets secure the cabinet to wall studs to prevent tip-over | Standard safety feature for tall freestanding office storage units |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office back wall | Provides mixed open display for awards, books and decor plus concealed storage for documents, matching professional executive office aesthetics | |
|---|---|---|
| Open office collaboration zone | Serves as a space divider and display unit for company literature, team awards and decorative objects, with integrated lighting enhancing ambient atmosphere |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture, applicable to structural load and stability testing | |
|---|---|---|
| EN 12521:2015 | Safety, strength and durability requirements for commercial office furniture storage units | |
| EN 62471:2008 | Photobiological safety for LED lighting products, applicable to integrated strip light emission safety |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel construction and dimensional tolerance checks | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to E1-grade engineered wood substrate formaldehyde emission limits | |
| GB 15763.2-2005 | Safety glazing materials for building, applicable to tempered glass door safety performance verification | |
| GB 7000.201-2008 | Safety requirements for fixed general purpose luminaires, applicable to integrated LED strip lighting safety |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel construction and dimensional tolerance checks; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to E1-grade engineered wood substrate formaldehyde emission limits; 3. GB 15763.2-2005: Safety glazing materials for building, applicable to tempered glass door safety performance verification; 4. GB 7000.201-2008: Safety requirements for fixed general purpose luminaires, applicable to integrated LED strip lighting safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
