PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 400 × 2400 mm
Overall cabinet size	3200 x 400 x 2400 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net cabinet weight	230 kg
Display shelf distributed load	25 kg per shelf
Lower cabinet shelf distributed load	35 kg per shelf
Top surface distributed load	40 kg per metre
Door hinge load rating	35 kg per pair
LED strip service life	25,000 hours
Seismic or anti-tip wall anchorage	2 anchor points per 1600 mm run
Recommended maximum stored load	220 kg total
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural panels	18 mm wood-composite board with melamine faces for doors, sides, and partitions
Horizontal shelves	25 mm melamine-faced composite board with edge-banded front edges
Brown door finish	Vertical walnut-woodgrain melamine or laminate finish on handleless doors
Cream door and interior finish	Warm off-white melamine finish on upper doors, interiors, and shelf surfaces
Back panel	9 mm composite back panel finished in cream melamine
Hardware	Concealed hinges, shelf supports, wall anchors, and push-to-open or touch-latch hardware

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display storage	Fourteen visible open shelf compartments provide book, decor, and framed-object display with vertical partitions preventing lateral load transfer
Concealed storage	Eleven closed door panels conceal upper, lower, and tall-side storage for clutter control and dust protection
Integrated display lighting	A continuous warm LED strip washes the central upper shelf and requires a low-voltage driver and accessible switched power
Wall-mounted stability system	Full-height units should be secured to the wall with anti-tip brackets while the 80 mm plinth distributes floor load

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office or manager workspace	Provides full-wall filing, awards, books, and concealed equipment storage behind a coordinated display wall
Premium residential study or living room	Combines open decor shelving, warm accent lighting, and hidden storage for a clean built-in appearance

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture safety and stability	EN 16122 storage furniture structural strength and stability requirements
Formaldehyde emissions	EN 13986 wood-based panels formaldehyde class E1 requirement
Surface wear assessment	EN 14354 melamine-coated panel surface performance reference

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Panel formaldehyde control	GB/T 39600 artificial panel formaldehyde emission classification, E1 or E0 acceptance target
Furniture storage structural test	GB/T 10357.5 strength and durability test methods applicable to shelves and cabinets
Furniture dimensional inspection	GB/T 3324 general technical specifications for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Panel formaldehyde control: GB/T 39600 artificial panel formaldehyde emission classification, E1 or E0 acceptance target;
2. Furniture storage structural test: GB/T 10357.5 strength and durability test methods applicable to shelves and cabinets;
3. Furniture dimensional inspection: GB/T 3324 general technical specifications for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FWB-MIX-3200-2400-400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FWB-MIX-3200-2400-400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FWB-MIX-3200-2400-400Open Export Tool

Quick Actions

Post an RFQ

Product Description

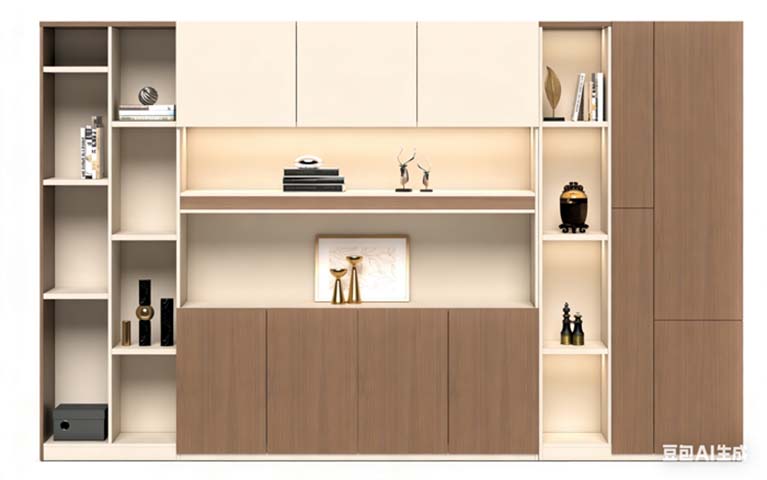

The Full-Wall Mixed Open and Closed Storage Cabinet with Display Shelving is a modern full-height storage system designed to combine presentation space with concealed storage. Model FWB-MIX-3200-400 is supplied unbranded, giving commercial and residential projects a coordinated built-in look without prominent manufacturer marking. Its overall layout stretches across the wall with a balanced mix of open compartments, closed doors, and tall storage sections, creating a structured display-and-storage feature rather than a standalone cabinet. Visually, the design pairs vertical walnut-woodgrain door fronts with warm off-white upper doors, interiors, shelf surfaces, and back panels. The handleless door treatment supports clean lines, while the continuous warm LED strip across the central upper shelving adds focused accent illumination for books, objects, and framed items. The cabinet is built from wood-composite panels with melamine faces. Structural doors, sides, and partitions use 18 mm board, while horizontal shelves and the main carcass use 25 mm board. Door and drawer fronts are 22 mm thick, and the cream-finished back panel is 9 mm thick. Front shelf edges are edge-banded, and concealed hinges, shelf supports, push-to-open or touch-latch hardware, wall anchors, and metal shelf hardware complete the construction. Fourteen visible open shelf compartments provide display space, with vertical partitions helping prevent lateral load transfer. Eleven closed door panels conceal upper, lower, and tall-side storage, helping control clutter and protect stored items from dust. The lower shelves are suited to heavier items than the display shelves, while the top surface offers limited distributed-load capacity. Each pair of hinges is rated for 35 kg. Lighting operation depends on a low-voltage driver and accessible switched power, and the LED strip has a stated service life of 25,000 hours. Full-height units should be secured to the wall with anti-tip brackets. The anchorage schedule calls for two anchor points per 1600 mm run, and the 80 mm plinth helps distribute floor load. This makes professional wall assessment and secure fixing important during installation, particularly in high-use commercial settings. The system is well suited to executive offices and manager workspaces requiring filing, books, awards, and equipment storage behind a polished feature wall. It also fits premium residential studies and living rooms where open decor display, warm lighting, and hidden storage are desired. Procurement planning should account for a 230 kg net cabinet weight, wall construction, power provision, assembly access, and onsite fixing. The reference packaging indicates one set split across cartons, with packaging volume around 0.65 cubic metres and a reference assembly time of 40 minutes per set; buyers should confirm final carton count and delivery details with the supplier before scheduling installation.
