Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 800 x 400 x 2000 mm | |
|---|---|---|
| Sliding door panel width | 400 mm | |
| Open shelf section width | 400 mm | |
| Number of fixed open shelves | 4 pcs | |
| Individual open shelf compartment height | 360 mm | |
| Closed compartment internal depth | 370 mm | |
| Top frame thickness | 30 mm | |
| Base plinth height | 50 mm | |
| Side panel thickness | 18 mm | |
| Shelf panel thickness | 18 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per fixed open shelf static load capacity | 15 kg | |
|---|---|---|
| Unit net weight | 55 kg | |
| Recommended maximum stored item depth on open shelves | 350 mm | |
| Floor load distribution footprint | 0.32 m2 | |
| Recommended maximum stored item depth | 350 mm | |
| Sliding door roller cycle life | 50000 cycles | |
| Anti-tip wall connector load rating | 50 kg | |
| Surface abrasion resistance rating | Class 2 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet carcass panels | 18mm thick melamine-faced particleboard, dark charcoal matte finish | |
|---|---|---|
| Sliding door panel | 18mm thick MDF with vertical fluted texture surface, matching dark charcoal finish | |
| Fixed open shelves | 18mm thick melamine-faced particleboard, matching dark charcoal finish | |
| Back panel | 5mm thick hardboard, dark grey finish | |
| Sliding door track hardware | Powder-coated steel top and bottom tracks, nylon guide rollers | |
| Edge banding | 1mm thick PVC edge banding, color-matched to dark charcoal finish | |
| Base plinth | 18mm thick melamine-faced particleboard, matching dark charcoal finish | |
| Surface finish abrasion resistance | Class 2 (300 cycles) | |
| Fixed open and internal shelves | 18mm thick melamine-faced particleboard, matching dark charcoal finish | |
| Anti-tip hardware | Zinc-plated steel wall brackets with steel mounting screws | |
| Assembly hardware | Zinc-plated steel cam lock connectors, wood dowels and machine screws | |
| Adjustable foot pads | Nylon base leveling feet with 10mm adjustment thread |
Adjustment / rotation / tilt / mobility / storage features

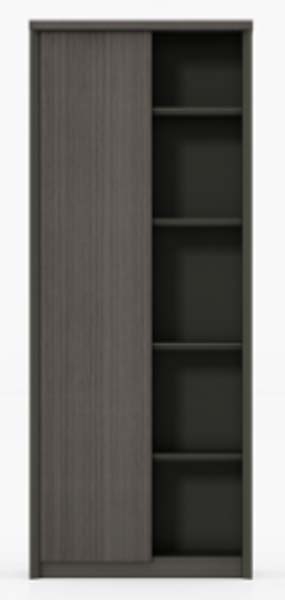

| Sliding door operation | Single panel horizontal sliding door glides on top and bottom tracks to fully cover or expose the left 50% of the cabinet internal storage space, no outward swing clearance required | |
|---|---|---|
| Open shelf storage | Right side 5-tier open shelving provides immediate access to frequently used items, display objects or reference materials without door operation | |
| Closed concealed storage | Left side compartment behind sliding door provides hidden storage for items not intended for public view, protecting contents from direct dust exposure | |
| Fixed shelf configuration | All internal open shelves are permanently fixed at equal vertical spacing, providing rigid structural support for the carcass and preventing shelf sag under rated load | |
| Freestanding installation | Unit stands independently on its integrated base plinth without requiring wall anchoring for standard use, wall anti-tip hardware recommended for high-traffic or child-accessible spaces | |
| Door retention | Sliding door holds securely in fully open or fully closed positions without drift, nylon rollers provide smooth, low-noise operation | |
| Leveling adjustment | Base nylon foot pads support 10mm vertical height adjustment to compensate for uneven floor surfaces, eliminating rocking during use | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 pc | |
|---|---|---|
| Shipping carton dimensions | 2050 x 450 x 120 mm | |
| Gross shipping weight | 62 kg | |
| Shipping volume per unit | 0.111 CBM | |
| Required assembly time | 45 minutes | |
| 20ft GP container loading quantity | 240 pcs | |
| 40ft HQ container loading quantity | 610 pcs | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
| Home office workspace use | Placed alongside a desk to store files, office supplies, reference books and display decor, with open shelves for frequently accessed items and closed storage for less used materials | |
|---|---|---|
| Living room media and display use | Used as a tall display and storage unit in living areas to hold books, decorative objects, media accessories and concealed clutter, the fluted door adds modern textural design interest | |
| Bedroom wardrobe supplemental storage | Positioned in a bedroom to store folded clothing, accessories, linens and personal items, sliding door eliminates the need for swing clearance in tight bedroom layouts | |
| Small commercial office break room use | Installed in office break rooms or pantries to store supplies, disposable goods, small appliances and employee personal items, easy-clean melamine surface resists common spills and stains | |
| Entryway hallway storage | Placed in entry foyers or hallways to store shoes, bags, outerwear accessories and entryway essentials, narrow 400mm depth does not obstruct narrow hallway circulation | |
| Student dormitory storage use | Used in student dorm rooms to store textbooks, school supplies, clothing and personal items, compact 800mm width fits small dormitory floor plans while providing high-capacity vertical storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 Furniture - Domestic and kitchen storage units and worktops - Safety requirements and test methods | Applicable as acceptance reference for structural stability, shelf load capacity, edge safety and anti-tip performance for indoor storage use | |
|---|---|---|
| EN 13986:2004+A1:2015 Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking | Applicable as reference for panel material mechanical properties and formaldehyde emission performance for engineered wood components | |
| EN 312:2010 Particleboards - Specifications | Applicable as reference for particleboard load-bearing performance and moisture resistance for dry indoor use |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable as acceptance reference for dimensional tolerance, panel edge treatment, structural stability and surface finish quality of this wooden storage cabinet | |
|---|---|---|
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products | Applicable as acceptance reference for formaldehyde emission limits, require E1 grade (≤0.124mg/m3) for all engineered wood panels used | |
| GB/T 4897.3-2015 Particleboard for general use | Applicable as acceptance reference for particleboard mechanical strength and dimensional stability for carcass and shelf components |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable as acceptance reference for dimensional tolerance, panel edge treatment, structural stability and surface finish quality of this wooden storage cabinet; 2. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products: Applicable as acceptance reference for formaldehyde emission limits, require E1 grade (≤0.124mg/m3) for all engineered wood panels used; 3. GB/T 4897.3-2015 Particleboard for general use: Applicable as acceptance reference for particleboard mechanical strength and dimensional stability for carcass and shelf components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
