PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 400 × 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight	260 kg
Static load per fixed shelf	25 kg
Static load per drawer	15 kg
Top panel distributed load	40 kg
Open display compartments	13 compartments
Closed storage doors	10 door fronts
Drawers	2 drawers
LED illuminated zones	4 zones
Recommended wall anchorage load rating	80 kg pull-out resistance per anchor pair
Suggested structural service life	10 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcase panels	25 mm wood-composite board with dark wood-grain melamine surface and sealed exposed edges
Door and drawer fronts	18 mm matte cream panel with flush slab construction and dark edge reveal
Back panel	9 mm dark melamine-backed composite panel set into the rear frame
Support feet	Tapered metal legs with dark body and brass-tipped finish, fitted at exposed front corners
Drawer runners	Side-mounted ball-bearing or roller runners sized for a 220 mm drawer front and 350 mm cabinet depth
LED lighting	Warm-white recessed LED strip installed under horizontal shelves, with diffused downward illumination

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed display and concealed storage	Open shelves provide 13 display zones while paired doors and two tall doors hide files, crockery, or general storage
Drawer organization	Two stacked central drawers with individual fronts provide separated storage for documents, stationery, or media accessories
Integrated shelf lighting	Four warm LED zones illuminate upper and lower open compartments without occupying display depth
Floor-standing installation with anti-tip restraint	The cabinet stands on a plinth and metal feet and should be wall-anchored through rear uprights or top hanging brackets

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packaging volume	2.30 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office or manager workspace	Suitable behind or beside a desk for books, awards, samples, binders, and concealed office storage in a 3600 mm wall run.
Premium reception or lounge display wall	Warm LED shelves and closed cream doors suit curated decorative display while hiding operational storage.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BC-LED-COMBO-3600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BC-LED-COMBO-3600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BC-LED-COMBO-3600Open Export Tool

Quick Actions

Post an RFQ

Product Description

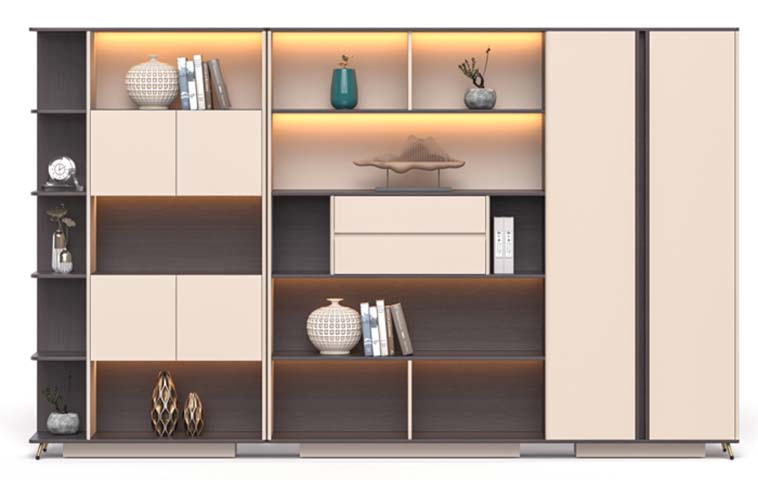

The Combination Display Bookcase with LED Shelves and Tall Storage Doors, model BC-LED-COMBO-3600, offers a structured modern storage wall for settings that require both visible presentation and concealed organization. Its two-tone appearance pairs a dark wood-grain interior with matte cream doors and drawers, creating a visual contrast between open display space and closed cabinet fronts. Tapered metal support feet with dark bodies and brass-tipped finishes lift the exposed front corners, while flush slab fronts with dark edge reveals reinforce the clean, contemporary profile. The layout combines thirteen open display compartments with ten closed door fronts and two centrally stacked drawers. Open shelves provide room for books, decorative objects, awards, samples, or curated accessories, while paired doors and tall door sections conceal files, crockery, operational items, or general storage. The individual drawer fronts support separate organization for documents, stationery, and media accessories. Warm-white recessed LED strips are positioned beneath horizontal shelves to cast diffused downward illumination. Four LED zones brighten upper and lower open compartments without taking space from the display depth. Construction uses wood-composite panels with dark wood-grain melamine surfaces and sealed exposed edges. The carcass and fixed shelves are 25 mm thick, while the back panel is 9 mm and set into the rear frame. Door and drawer fronts are formed with matte cream panels and a flush slab style. Side-mounted ball-bearing or roller runners are fitted to the drawers. The unit has a net weight of 260 kg and is designed for floor-standing installation on its plinth and metal feet, with wall anchoring required through the rear uprights or top hanging brackets for anti-tip restraint. Rated static capacity is 25 kg per fixed shelf, 15 kg per drawer, and 40 kg distributed load on the top panel. These capacities make the bookcase best suited to controlled interior use where display items and stored contents can be distributed appropriately. The tall, wide composition is suited to an executive office or manager workspace, where it can sit behind or beside a desk within a 3600 mm wall run for binders, books, awards, samples, and hidden office storage. It also works as a premium reception or lounge display wall, using warm lighting and cream cabinet fronts to present decorative pieces while keeping service items out of view. Procurement planning should account for the multi-carton delivery format, substantial finished weight, and assembly requirement. The supplied reference assembly time is 40 minutes per set. Buyers should also plan for secure wall fixing, electrical access or routing for the integrated LED zones, and enough circulation space for loading and installation. The unbranded design makes it suitable for projects where a coordinated modern look is prioritized over a visible manufacturer label.
