PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Base foot height	50 mm
Bottom closed cabinet compartment internal height	700 mm
Bottom individual door width	400 mm
Drawer front height	200 mm
Small open cubby internal dimensions	280 x 350 x 380 mm
Wide top right open cubby width	600 mm
Open shelf clearance height (upper tiers)	300 mm
Structural frame member thickness	25 mm
Side panel thickness	25 mm
Back panel thickness	18 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	115 kg
Per-shelf static load capacity (open cubbies)	40 kg
Anti-tip connector load rating	100 kg
Door hinge open angle	110 degrees
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Surface abrasion resistance	2000 revolutions
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	25mm thick E0-grade melamine-faced chipboard
Structural framing and side/back panels	Dark gray matte melamine laminated engineered wood
Drawer and door fronts	Light oak-effect matte melamine finish over 18mm MDF
Edge banding	1mm thick PVC edge banding matched to panel color
Drawer slides	Cold-rolled steel full-extension ball-bearing slides
Door hinges	Zinc-plated steel concealed soft-close hinges
Base support feet	Injection-molded PP plastic adjustable leveling feet
Back panel	18mm thick dark gray melamine hardboard
Cabinet interior panels	Light gray melamine laminated engineered wood
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lower cabinet access	Three hinged doors open to full-width enclosed storage for bulk items
Drawer storage	Four stacked soft-close drawers for small office supplies and document organization
Open display storage	Nine varied-size open cubbies for displayed materials, books and decorative items
Leveling adjustment	Adjustable base feet compensate for uneven floor surfaces to keep unit stable
Anti-tip safety	Wall-mounted anti-tip bracket secures unit to prevent forward tipping
Door operation	Concealed hinges allow doors to open fully without adjacent panel obstruction
Drawer operation	Full-extension slides allow full drawer access for easy retrieval of stored contents
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office partitions	Functions as a low-height space divider with accessible storage for work teams
Manager office storage	Combines document concealment and display space for books and awards
Reception area display	Provides branded material display and concealed storage behind reception desks
Co-working space storage	Serves shared storage for supplies, reading materials and personal items
Break room organization	Stores tableware, reading materials and pantry supplies in open and closed spaces
Recommended configuration	Pair with matching executive desks and filing cabinets for coordinated office layouts

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable for safety and strength requirements of office storage furniture
EN 312:2010	Applicable for performance requirements of particleboard used in furniture
EN 12720:2009+A1:2013	Applicable for surface resistance to cold liquids for furniture finishes

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Applicable for safety and performance of office storage furniture units
ANSI/BIFMA e3-2019e	Applicable for furniture sustainability and material content evaluation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden office furniture
GB/T 4897.3-2003	Applicable for particleboard (MFC) used in furniture load-bearing structures
GB 18580-2017	Applicable for formaldehyde emission limits for wood-based panel products
GB/T 10357.5-2011	Applicable for strength and durability testing of storage furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden office furniture;
2. GB/T 4897.3-2003: Applicable for particleboard (MFC) used in furniture load-bearing structures;
3. GB 18580-2017: Applicable for formaldehyde emission limits for wood-based panel products;
4. GB/T 10357.5-2011: Applicable for strength and durability testing of storage furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-DISP-12040-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-DISP-12040-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-DISP-12040-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

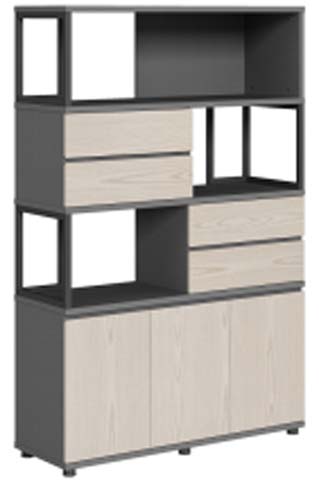

The Two-Tone Freestanding Office Display Storage Cabinet is a modern mixed-storage unit balancing open display and concealed organization for professional and select residential spaces. Its visual design pairs dark gray matte structural framing, side panels, and back panels with light oak-effect drawer and door fronts, creating a clean two-tone grid aesthetic that fits contemporary interior schemes. The layout arranges storage vertically: the lower section holds three hinged doors enclosing full-width bulk storage, with four stacked soft-close drawers positioned above the doors, while the upper portion features nine varied-size open cubbies, including a wider cubby on the top right, for displayed items.
Constructed from durable engineered wood, the cabinet uses 25mm thick E0-grade melamine-faced chipboard for its main carcass, 18mm MDF with light oak-effect melamine for drawer and door fronts, and dark gray melamine-laminated panels for framing. All edges are finished with 1mm color-matched PVC edge banding for a seamless look. Hardware includes cold-rolled steel full-extension ball-bearing drawer slides, zinc-plated steel concealed soft-close hinges that open to 110 degrees without adjacent panel obstruction, and injection-molded PP plastic adjustable leveling feet. The unit has a net weight of 115 kg, with open cubby shelves supporting a static load of 40 kg each, and drawer slides and door hinges rated for long-term repeated use, plus surface abrasion resistance for regular office wear.
Practical functions address daily office organization needs: the lower enclosed compartment holds bulk items, four soft-close drawers sort small supplies and documents, and varied open cubbies display books, awards, branded materials, or decorative pieces. Adjustable base feet compensate for uneven floors to maintain stability, while a wall-mounted anti-tip connector secures the unit to prevent forward tipping. Full-extension slides allow complete drawer access for easy content retrieval.
This cabinet suits a range of commercial spaces: it works as a low-height space divider in open plan offices, combined storage and display in manager offices, branded display and concealed storage in reception areas, shared storage in co-working spaces, and organized storage for tableware and supplies in break rooms. It may also pair with matching executive desks and filing cabinets for coordinated layouts, or serve as refined storage in home office settings.
For procurement, note the unit ships in multiple cartons, requires on-site assembly with a reference assembly time of 40 minutes per set, and must be secured to a wall with the included anti-tip bracket for safe use. Verify site dimensions can accommodate the unit’s full footprint, and confirm wall structure is suitable for anti-tip installation prior to setup.

Two-Tone Freestanding Office Display Storage Cabinet Specifications
