Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2400 x 400 x 1200 mm | |
|---|---|---|
| Total storage compartments | 18 units | |
| Single open cubby internal size | 380 x 350 x 340 mm | |
| Shelf board thickness | 25 mm | |
| Vertical side panel thickness | 18 mm | |
| Cubby insert panel thickness | 15 mm | |
| Leveling foot height adjustment range | 15 mm | |
| Base clearance under cabinet | 10 mm | |
| Back panel thickness | 9 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Product net weight | 88 kg | |
|---|---|---|
| Uniform shelf static load capacity | 25 kg per cubby | |
| Maximum total storage load | 220 kg | |
| Shelf deflection limit at rated load | 3 mm | |
| Recommended number of users | 12 people per unit | |
| Cam lock connector pull-out strength | 600 N | |
| Surface scratch resistance rating | 2 H | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Outer cabinet frame | E1 grade melamine faced particleboard, light oak wood grain finish | |
|---|---|---|
| Horizontal shelf surfaces | 25mm melamine particleboard, matching wood grain finish, sealed edge banding | |
| White cubby boxes and dividers | 15mm MDF with matte white polyurethane paint finish | |
| Terracotta accent dividers | 15mm MDF with matte terracotta polyurethane paint finish | |
| Back panel | 9mm melamine hardboard, light matching finish | |
| Leveling feet | Injection molded PA plastic with non-slip rubber base | |
| Edge banding | 1mm PVC edge trim on all exposed panel edges, color matched to panel finish | |
| Connector hardware | Zinc plated steel cam lock and dowel connectors | |
| Anti-tip hardware | 1.5mm thick steel wall anchor bracket with 2m nylon restraint strap, zinc plated finish | |
| Foot pads | 0.5mm thick non-woven fabric pads adhered to base of leveling feet to prevent floor scratching | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features

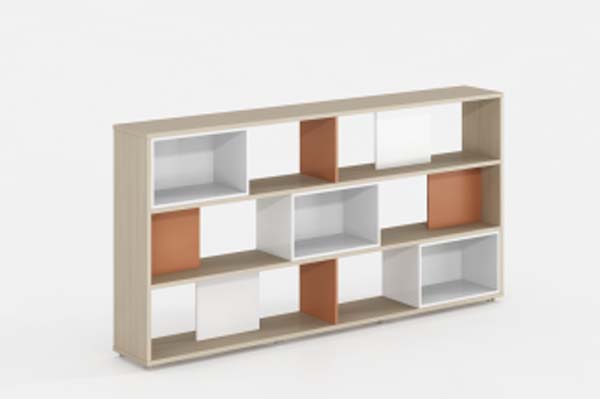

| Storage configuration | Staggered mixed height open cubby layout with semi-enclosed box inserts, no hinged doors or drawers | |
|---|---|---|
| Floor leveling | 4 corner mounted adjustable screw feet, rotated by hand to adjust height for uneven floors | |
| Storage flexibility | Fixed shelf configuration, pre-positioned divider inserts cannot be repositioned after assembly | |
| Wall anchoring compatibility | Pre-drilled holes in back panel for anti-tip wall anchor strap installation, suitable for high traffic office areas | |
| Cable management | Open compartment design allows loose cable routing for small desk devices placed on shelves, no dedicated grommets | |
| Surface maintenance | Melamine and painted surfaces can be wiped clean with neutral detergent, no special coating maintenance required | |
| Wall anchoring | 2 pre-drilled holes in upper back panel for anti-tip wall anchor installation, rated to resist 200N horizontal pull force, suitable for high traffic office areas with pedestrian movement | |
| Cable routing | Open compartment design allows loose 6mm diameter cable routing between adjacent cubbies for small desk devices placed on shelves, no dedicated cable grommets or closed channels | |
| Load distribution | Fixed horizontal shelves distribute load evenly across vertical side panels, no overhang loading allowed past 50mm from shelf edges, concentrated loads must be placed within 100mm of shelf center | |
| Assembly compatibility | All panels use universal cam lock connections, no custom drilling required for standard assembly, compatible with standard 4mm hex key tools | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 2 cartons | |
|---|---|---|
| Main carton dimensions | 2450 x 450 x 120 mm | |
| Accessory carton dimensions | 850 x 420 x 200 mm | |
| Total shipping gross weight | 98 kg | |
| Total shipping volume | 0.20 CBM | |
| On-site assembly time | 60 minutes | |
| 20ft GP container loading quantity | 88 units | |
| 40ft HQ container loading quantity | 220 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Open plan office partition storage | Placed between workstations as low height divider, provides shared document and supply storage without blocking sight lines | |
|---|---|---|
| Office reception display storage | Positioned behind reception desks for brochure display, corporate material storage and decorative item placement | |
| Education and training room storage | Used in training centers or classrooms for shared book, stationery and training material storage | |
| Home office storage | Placed in home workspaces for book, file and office equipment storage, matching light neutral decor schemes | |
| Coworking space shared storage | Deployed in flexible coworking areas for member document, personal item and office supply storage | |
| Library and breakout area storage | Installed in office breakout zones or small public libraries for book, magazine and shared amenity storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops, safety requirements including stability and strength for freestanding cabinets | |
|---|---|---|
| EN 312:2010 | Particleboard specifications, applicable for structural panel load bearing performance requirements | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction use, formaldehyde emission class E1 requirement for indoor environments |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel dimensional tolerance, edge quality and structural stability testing | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement for indoor office use, 0.124mg/m3 limit | |
| GB/T 4897.3-2015 | Particleboard for furniture use, applicable for structural shelf and side panel material strength requirements | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, applicable for shelf load, structural stability and durability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel dimensional tolerance, edge quality and structural stability testing; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement for indoor office use, 0.124mg/m3 limit; 3. GB/T 4897.3-2015: Particleboard for furniture use, applicable for structural shelf and side panel material strength requirements; 4. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for shelf load, structural stability and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
