Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 1200 x 400 x 2000 mm | |
|---|---|---|
| upper glazed section height | 1300 mm | |
| lower solid door section height | 650 mm | |
| base plinth height | 50 mm | |
| internal upper shelf depth | 360 mm | |
| adjustable shelf spacing upper section | 320 mm | |
| internal lower compartment height | 600 mm | |
| glass door thickness | 10 mm | |
| main cabinet panel thickness | 25 mm | |
| internal shelf thickness | 20 mm | |
| vertical pull handle length | 120 mm | |
| edge band thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| unit net weight | 85 kg | |
|---|---|---|
| static load per upper shelf | 30 kg | |
| static load per lower compartment shelf | 40 kg | |
| overall cabinet total static load | 150 kg | |
| hinge/door slide cycle rating | 500000 operations | |
| coating surface hardness | 3H | |
| tempered glass impact resistance | 5 times standard annealed glass | |
| anti-tip fastener quantity | 2 units | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

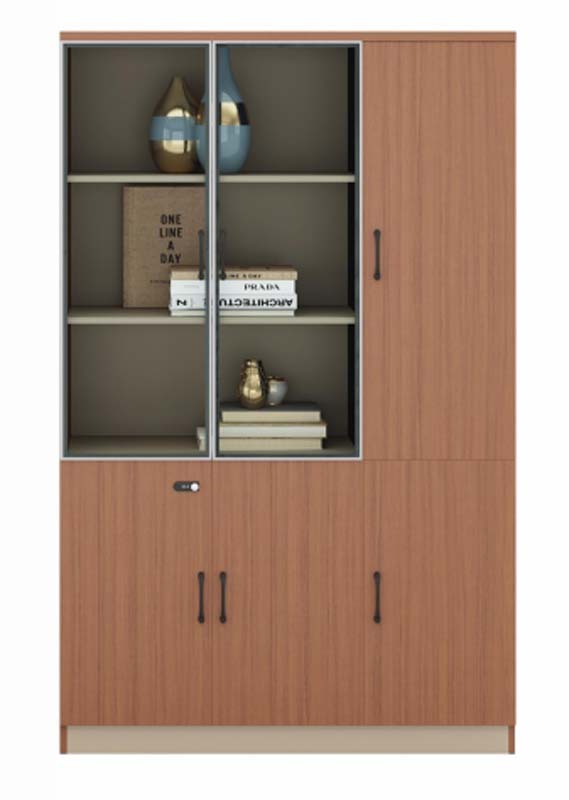

| main cabinet carcass | E1 grade engineered wood with walnut wood grain melamine finish | |
|---|---|---|
| upper sliding doors | Clear tempered glass with polished silver aluminum trim frame | |
| lower cabinet doors | Walnut grain engineered wood matching carcass finish | |
| internal shelves | Light taupe engineered wood panels, adjustable via shelf pin holes | |
| internal back panel | Taupe hardboard backing with smooth matte finish | |
| door pulls | Dark powder-coated solid metal vertical bar handles | |
| lower section lock | Integrated keyed cylinder lock securing all lower doors | |
| door slides/hinges | Cold-rolled steel hardware with anti-corrosion coating | |
| base plinth | Light beige engineered wood kickboard with matte finish | |
| edge banding | Matching walnut PVC edge tape on all exposed panel edges | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
| upper door operation | Two frameless sliding glass doors for horizontal opening, no protruding swing clearance | |
|---|---|---|
| lower door operation | Three hinged solid wood doors, secured by single central key lock | |
| upper shelf adjustability | Three shelf positions with 32mm spaced pin holes for height customization | |
| lower storage configuration | One fixed horizontal shelf dividing lower section into two enclosed storage zones | |
| storage zone separation | Upper dust-sealed glazed zone for display, lower locked zone for confidential file storage | |
| anti-tip protection | Wall anchor brackets included to prevent forward tipping when fully loaded | |
| door alignment | Pre-installed adjustable hinge/slide tension screws for gap alignment | |
| surface maintenance | Stain-resistant melamine finish wipes clean with standard office cleaning agents | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| private executive office | Provides lockable file storage and book/display space behind executive desks | |
|---|---|---|
| open plan work area | Serves as shared document storage and display unit for team work zones | |
| home office study | Stores books, work files and decorative items for remote work setups | |
| meeting room ancillary storage | Holds meeting materials, reference documents and display decor adjacent to conference tables | |
| reception back-of-house area | Stores office supplies and reference materials out of guest sight in locked lower section |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable to safety requirements for office storage furniture | |
|---|---|---|
| EN 12150-1:2015 | Applicable to tempered soda-lime silicate glass used in cabinet doors | |
| EN 312:2010 | Applicable to particleboard performance requirements for furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable to storage furniture performance and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 4897.3-2003 | Applicable to particleboard used for furniture structural components | |
| GB 18584-2001 | Applicable to formaldehyde emission limits for interior wooden furniture | |
| GB/T 9966.5-2001 | Applicable to impact resistance testing for glass door panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office furniture; 2. GB/T 4897.3-2003: Applicable to particleboard used for furniture structural components; 3. GB 18584-2001: Applicable to formaldehyde emission limits for interior wooden furniture; 4. GB/T 9966.5-2001: Applicable to impact resistance testing for glass door panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
