PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	78 kg
Recommended total static load	120 kg
Upper shelf load per level	20 kg distributed load
Lower compartment load	60 kg distributed load
Top surface load	25 kg distributed load
Storage capacity	0.112 cubic m in the lower enclosed zone
Binder capacity	48 standard 75 mm binders
Recommended wall-anchor restraint load	80 kg pull-over resistance
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Lower door construction	18 mm wood-grain engineered board doors with vertical linear grain and melamine-style wear surface
Upper door construction	Framed paired doors with 5 mm transparent tempered-glass panels and light-colored edge frame
Cabinet carcass	25 mm light neutral engineered-board side panels, top, bottom, and center dividers
Internal shelves	20 mm board shelves with matching light edge banding, arranged in two fixed horizontal rows
Back panel	5 mm hardboard or engineered-board back panel set into a rabbeted cabinet body
Lock and hardware	Black-face key lock with metal cylinder and paired-door linkage, plus concealed hinges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper display access	Two hinged glass-front doors provide access to six visible display compartments separated by two shelf rows
Lower concealed storage	Two hinged wood-grain doors conceal a full-width archive and supply compartment behind a central lock
Central locking system	Key lock mounted on the center stile locks both lower doors through an internal shoot or connecting rod
Anti-tip installation	Wall anchor required at upper rear panel for a 2000 mm tall freestanding cabinet loaded with books or binders

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Manager or administrative office	Suitable for displaying books and awards behind glass while securing documents and supplies in the lower locker
Meeting room or reception back wall	Provides 2000 mm vertical storage and a light wood-glass appearance for shared materials and presentation items

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2 office storage safety	Applicable safety reference for freestanding office storage cabinets, including stability and safe use
EN 14073-3 lock and stability testing	Reference for locks, doors, structural stability, and shelf performance in office storage systems
EN 12150-1 toughened glass	Material reference if the upper door panels are supplied as safety tempered glass
EN 717-1 board emission	Formaldehyde release reference for wood-based panels used in enclosed office furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional fit	General technical requirements for wooden furniture applicable to panel dimensions, workmanship, and stability verification
GB/T 3325 metal hardware fit	Applicable acceptance reference for metal lock, hinges, and connecting hardware used on wooden furniture
GB 18580 emission testing	Formaldehyde emission limit reference for engineered-wood boards used in indoor cabinet construction
GB/T 10357.5 stability test	Cabinet stability and floor-standing furniture strength reference when validating anti-tip performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional fit: General technical requirements for wooden furniture applicable to panel dimensions, workmanship, and stability verification;
2. GB/T 3325 metal hardware fit: Applicable acceptance reference for metal lock, hinges, and connecting hardware used on wooden furniture;
3. GB 18580 emission testing: Formaldehyde emission limit reference for engineered-wood boards used in indoor cabinet construction;
4. GB/T 10357.5 stability test: Cabinet stability and floor-standing furniture strength reference when validating anti-tip performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ODF-GD800-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ODF-GD800-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ODF-GD800-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

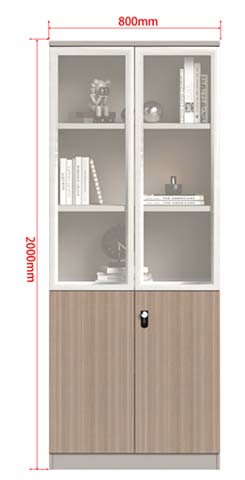

The Tall Two-Door Glass and Wood Office Storage Cabinet, model ODF-GD2000is a full-height storage solution with a balanced presentation of visible display space and concealed archival storage. Its upper section features paired hinged doors framed with light-colored edges and fitted with transparent tempered-glass panels, revealing six compartments arranged across two fixed horizontal shelf rows. Below, two wood-grain engineered board doors with a vertical linear grain conceal a full-width storage compartment, creating a clear visual distinction between the lighter upper display zone and the warmer lower locker area. The central stile carries a black-face key lock, giving the front a tidy, symmetrical layout suited to professional interiors. The cabinet is unbranded and presents a light wood-glass appearance appropriate for settings where a neutral, organized look is preferred. Construction uses a light neutral engineered-board carcass for the side panels, top, bottom, and center dividers, with a 25 mm panel thickness. The lower doors are built from 18 mm wood-grain engineered board with a melamine-style wear surface, while the upper doors use 5 mm tempered glass within framed paired doors. Internal shelves are 20 mm board with matching light edge banding, and the back panel is set into a rabbeted cabinet body. Black-face key locking hardware with a metal cylinder, paired-door linkage, and concealed hinges completes the functional specification. The cabinet weighs 78 kg net and is supplied as a set with reference packaging split across cartons; procurement planning should allow for assembly time of 40 minutes per set and packaged gross weight of 100 kg per set. Functionally, the glass-front upper section supports display and quick visual identification of books, awards, presentation items, and shared reference materials. The lower locked compartment is designed for documents, supplies, and archive storage, with a central locking system that secures both lower doors through an internal shoot or connecting rod. Rated storage information includes a 120 kg recommended total static load, a 20 kg distributed load per upper shelf level, a 60 kg distributed load in the lower compartment, and a 25 kg distributed load on the top surface. The lower enclosed zone offers 0.112 cubic m of capacity and can hold 48 standard 75 mm binders. This cabinet is well suited to manager and administrative offices, where displayed items can be kept visible while confidential documents and daily supplies remain secured. It also works on a meeting room or reception back wall, combining tall storage with a refined glass-and-wood presence. Because the freestanding cabinet is 2000 mm tall and may be loaded with books or binders, wall anchoring at the upper rear panel is required. Buyers should also confirm delivery access, assembly coordination, and load distribution against intended use.

Tall Two-Door Glass and Wood Office Storage Cabinet Specifications
