PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Shelf uniform load capacity	30 kg per shelf
Total cabinet static load	150 kg
Net weight	48 kg
Storage volume (upper glass section)	0.13 m³
Lower closed storage volume	0.39 m³
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body panels	Particleboard or MDF with woodgrain melamine finish
Glass doors	Tempered clear glass with aluminum frame
Door lock	Metal cam lock with key
Shelves	16 mm wood-based panel with matching melamine edge
Kickboard	PVC or wood-based plinth in light tone
Door hinges	Concealed metal cup hinges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Display and closed storage combination	Upper glass section for display, lower solid doors for confidential storage
Lockable lower compartment	Keyed cam lock secures all three lower doors
Adjustable shelving in upper section	Three shelves per glass bay with height adjustability
Freestanding installation	Floor-placed cabinet with kickboard, no wall fixing required for normal use

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office suite	Matches modern wood-tone executive desks for file and display storage
Open-plan office filing area	Provides both reference display and locked document storage for teams

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Applicable for office storage furniture strength, durability and stability
EN 14073-2:2004	Applicable for safety requirements and test methods for office storage furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2020	Applicable for storage systems performance and safety evaluation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for wood-based panel furniture dimensional tolerance and appearance inspection
GB 18584-2001	Applicable for formaldehyde emission limit of wood-based panel furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for wood-based panel furniture dimensional tolerance and appearance inspection;
2. GB 18584-2001: Applicable for formaldehyde emission limit of wood-based panel furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FC-WG-3D1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FC-WG-3D1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FC-WG-3D1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

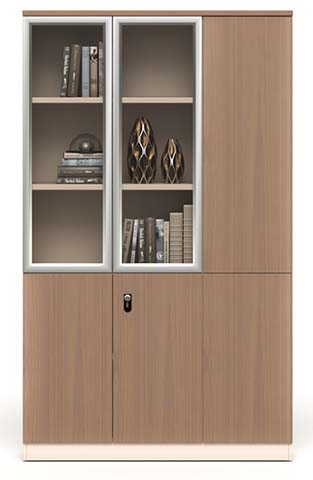

The 3-Door Combination File Cabinet with Glass Upper Section, model FC-WG-3D1800, is an unbranded freestanding storage solution that balances display functionality with secure, closed storage. Its visual form features a woodgrain-finished cabinet body paired with clear tempered glass upper doors set in sleek aluminum frames, creating a polished, modern silhouette that fits seamlessly into contemporary spaces. The layout divides the cabinet vertically: the upper section houses glass-fronted bays, while the lower section consists of three solid woodgrain doors, with a light-toned kickboard at the base for a finished, floor-level appearance. Constructed from wood-based panels with a durable woodgrain melamine finish, the cabinet’s main body uses 25 mm thick carcass panels, 22 mm thick door fronts, and 9 mm back panels for structural stability. Upper glass doors are framed in aluminum and fitted with concealed metal cup hinges for smooth operation, while the lower doors are secured by a keyed metal cam lock. Interior shelves, made of 16 mm wood-based panel with matching melamine edging, support uniform loads of 30 kg each, and the drawer slides (for compatible storage components) handle 45 kg per pair with a 50,000-cycle service life. The total cabinet static load reaches 150 kg, with a net weight of 48 kg, and offers 0.13 m³ of upper glass display volume and 0.39 m³ of lower closed storage volume. Functionally, the cabinet combines display and confidential storage: the upper glass section showcases reference materials, decor, or curated items, while the lockable lower compartment secures sensitive documents and office supplies. All three lower doors lock via a single keyed cam lock for convenience. The upper glass bays include three height-adjustable shelves per bay, allowing users to customize storage to accommodate items of varying sizes. As a freestanding unit with a kickboard, it requires no wall fixing for normal use, offering flexible placement. This file cabinet is well-suited for executive office suites, where it pairs with modern wood-tone executive desks to support file organization and display storage. It also works effectively in open-plan office filing areas, providing teams with accessible reference display space alongside locked document storage. For procurement planning, note that each set ships in 2 cartons (with a reference packaged gross weight of 100 kg per set across 3 cartons and total packaging volume of 0.65 m³), and reference assembly time is 40 minutes per set. No additional wall mounting hardware is needed for standard installation, making it a straightforward addition to most workspaces.

3-Door Combination File Cabinet with Glass Upper Section Specifications
