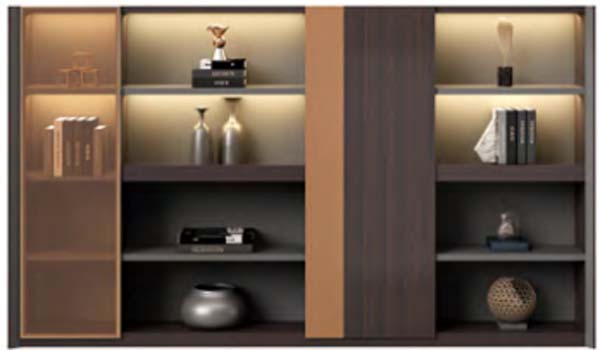

Product supplierDark Walnut LED-Lit Mixed Storage Display Bookcase with Vertical Accent Panel, 16mm thick engineered wood board with dark walnut melamine finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 420 × 2000 mm | |
|---|---|---|
| Open shelf compartment internal height | 380 mm | |
| Open shelf compartment internal depth | 380 mm | |
| Left frosted glass door compartment width | 400 mm | |
| Central vertical accent panel width | 120 mm | |
| Central solid door panel width | 480 mm | |
| Right open shelf bank width | 700 mm | |
| Open shelf panel thickness | 25 mm | |
| Carcass side panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Edge band thickness | 2.5 mm | |
| Frosted glass door thickness | 5 mm | |
| LED strip recessed groove width | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 118 kg | |
|---|---|---|
| Per shelf static load capacity | 25 kg | |
| Total cabinet storage capacity | 720 L | |
| Recommended maximum display load for open shelves | 20 kg per shelf | |
| LED strip rated lifespan | 30000 hours | |
| Hinge cycle rating for doors | 80000 open/close cycles | |
| Anti-tip anchoring load rating | 100 kg pull force | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main carcass panels | 16mm thick engineered wood board with dark walnut melamine finish | |
|---|---|---|
| Left compartment door | 5mm frosted tinted tempered glass with matte metal trim | |
| Central door panel | Engineered wood panel with matching dark walnut matte finish, vertical wood grain | |
| Vertical divider accent panel | Engineered wood panel with warm matte brown finish | |
| Shelf surfaces | 25mm thick engineered wood with scratch-resistant melamine top layer | |
| Hardware components | Matte dark grey metal hinges, anchors and trim pieces | |
| Integrated lighting | 12V low-voltage recessed LED light strips mounted along front shelf edges | |
| Back panel | 9mm thick engineered wood board with dark matching finish | |
| Edge sealing | 2.5mm thick color-matched PVC edge banding on all exposed panel edges | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| LED shelf lighting | Recessed warm white LED strips illuminate all open display shelves, operated by wall plug | |
|---|---|---|
| Frosted glass door storage | Left section closed frosted glass door provides dust protection for stored items while maintaining visibility | |
| Solid door concealed storage | Central solid wood door hides stored items from view for clutter-free appearance | |
| Open display shelving | Right and left-of-accent open shelves offer immediate access to display books and decorative objects | |
| Anti-tip safety feature | Wall anchoring hardware secures tall cabinet to wall to prevent forward tipping | |
| Adjustable shelf position | Shelf support holes allow repositioning of shelves to accommodate items of varying heights | |
| Soft-close door mechanism | Hinges provide silent, slow closing to prevent slamming and reduce wear | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room accent wall | Suitable as full-height display wall for books, art and collectibles behind a seating area | |
|---|---|---|
| Home office library storage | Provides organized storage for reference books, documents and office decor in home workspaces | |
| Modern study space | Fits as a built-in look storage unit for displaying academic materials and personal decor | |
| Executive office reception display | Appropriate for displaying corporate awards, publications and decorative objects in reception zones | |
| Luxury apartment dining room side storage | Works as a full-height display unit for tableware, decor and bar items adjacent to dining areas |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture and countertops | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for domestic storage furniture | |
| EN 62471:2008 | Photobiological safety for LED lighting products used in indoor furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural integrity and finish quality checks | |
|---|---|---|
| GB/T 15102-2017 | Melamine faced board for furniture, applicable for surface abrasion and stain resistance verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor use | |
| GB 7000.204-2008 | Safety requirements for built-in LED lighting fixtures used in furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural integrity and finish quality checks; 2. GB/T 15102-2017: Melamine faced board for furniture, applicable for surface abrasion and stain resistance verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor use; 4. GB 7000.204-2008: Safety requirements for built-in LED lighting fixtures used in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
