Name: Modern Two-Tone Display Cabinet Pair
Brand: XIANGSHI
SKU: U0GJUH

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 350 × 2000 mm
Open shelf section width	320 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single cabinet net weight	65 kg
Open shelf uniform load capacity	30 kg per shelf
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer frame and base	Light beige engineered wood with matte laminate finish
Door panel	Dark gray wood-grain textured engineered wood with raised edge frame
Open shelf interior	Light gray matte laminate over particleboard
Top decorative bars	Black powder-coated cylindrical metal bars
Shelf construction	Double-sided laminated particleboard with PVC edge banding
Back panel	Thin hardboard backing with light gray finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Asymmetrical layout with 1 tall closed door, 3 open middle shelves, top display niche and bottom open bay
Top section function	Open decorative display with vertical slat visual divider
Freestanding installation	Stands independently on rectangular plinth base, optional wall anchor for tip resistance
Modular pairing	Two identical mirrored units form a symmetrical display wall system

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room display wall	Pair of units forms a symmetrical media or display wall for residential living spaces
Entryway partition and storage	Single unit works as a semi-transparent entry divider with concealed and open storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture - stability	EN 14749:2016 applicable for storage units
Wood-based panels formaldehyde	EN 13986:2004 E1 class recommended

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Storage furniture stability	ANSI/BIFMA X2020reference applicable

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel formaldehyde emission	GB/T 39600E1 grade recommended
Cabinet stability requirement	GB/T 10357.4applicable

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel formaldehyde emission: GB/T 39600E1 grade recommended;
2. Cabinet stability requirement: GB/T 10357.4applicable;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-2T-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-2T-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-2T-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

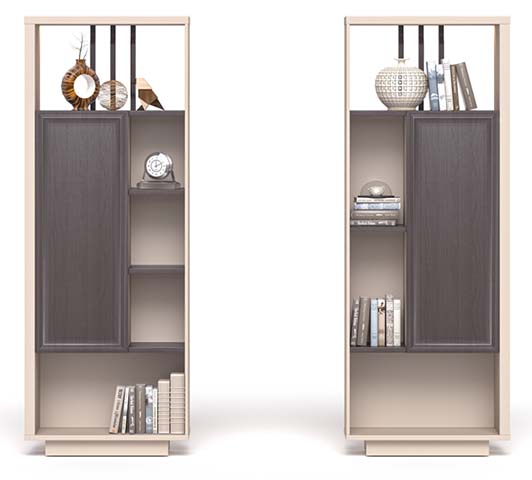

The XIANGSHI Modern Two-Tone Display Cabinet Pair, model DC-2T-01, is a freestanding storage and display solution defined by its balanced contemporary aesthetic and flexible modular design. Sold as a set of two identical mirrored units, the pair forms a symmetrical display wall system when placed together, while each individual cabinet features an asymmetrical internal layout that blends concealed and open storage. Each unit includes one tall closed door, three open middle shelves, a top display niche, and a bottom open bay, with the top section fitted with a vertical slat visual divider that adds subtle visual depth to decorative displays. Constructed primarily from particleboard, the cabinet uses engineered wood components with targeted finish treatments to achieve its two-tone look. The outer frame and base feature a light beige matte laminate finish, while the door panel is made of dark gray wood-grain textured engineered wood with a raised edge frame. The open shelf interior is finished with light gray matte laminate over particleboard, and the shelves themselves are double-sided laminated particleboard with PVC edge banding. Thin hardboard with a light gray finish forms the back panel, and black powder-coated cylindrical metal bars serve as top decorative accents. Key panel thicknesses include a 25 mm carcass panel, 25 mm shelf, 22 mm door front, and 9 mm back panel, with each single cabinet weighing 65 kg. Functionally, the cabinet delivers reliable storage performance: each open shelf supports a uniform distributed load of 30 kg, while the drawer slides (supporting 45 kg per pair) are rated for 50,000 cycles, and the 165° opening hinges are rated for 80,000 cycles. The unit stands independently on a rectangular plinth base, with optional wall anchoring available for tip resistance; units over 1200 mm in height require at least 2 wall fixing points for stability. The modular mirrored design allows the pair to function as a cohesive media or display wall in residential living rooms, while a single unit can serve as a semi-transparent entryway partition that combines concealed and open storage for entry spaces. For procurement planning, each set ships in 2 cartons, with a total gross weight of 100 kg and total packaging volume of 0.65 m³. Assembly takes 40 minutes per set. The recommended warranty coverage includes 5 years for the carcass, 3 years for hardware components, and 2 years for the finish.
