PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Upper shelf uniform load capacity	30 kg per shelf
Net weight reference	65 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body panels	16mm melamine-faced particle board
Upper door panels	5mm tempered glass with aluminum frame
Lower door panels	18mm melamine-faced MDF
Shelves	16mm melamine particle board, adjustable
Lock hardware	Zinc alloy cam lock with key
Base plinth	PVC or ABS edge-banded particle board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Display storage (upper section)	Glass-fronted shelves for books, decor, or reference materials
Secure storage (lower section)	Lockable solid doors for confidential files and personal items
Adjustable shelving	Shelves can be repositioned to accommodate different item heights
Dust protection	Closed-door design reduces dust accumulation on stored items

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate office spaces	Suitable for open-plan offices, executive offices, and file rooms
Libraries and study areas	Ideal for storing reference books, media, and personal items \| Glass section allows display of collections while keeping items protected

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable for office storage furniture safety and stability requirements
EN 312-1:2019	Applicable for particle board material performance specifications

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2020	Applicable for office storage furniture performance testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for wood-based panel furniture general technical requirements
GB 18584-2001	Applicable for formaldehyde emission limits for interior furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for wood-based panel furniture general technical requirements;
2. GB 18584-2001: Applicable for formaldehyde emission limits for interior furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-GD-0820

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-GD-0820

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-GD-0820Open Export Tool

Quick Actions

Post an RFQ

Product Description

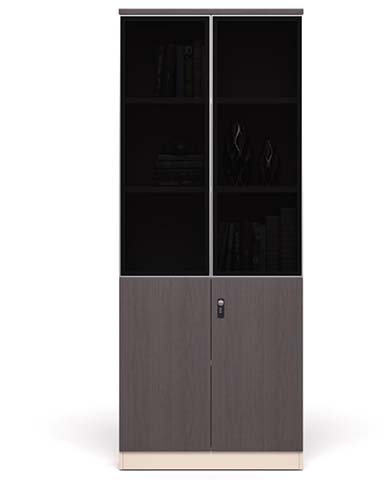

2-Door Office Storage Cabinet with Glass Upper Section This unbranded model OFC-GD-0820 file cabinet presents a modern tall profile that balances open display and concealed organization. Its visual layout divides the full-height structure into two distinct zones: a glass-fronted upper portion and a solid-door lower section, creating a streamlined, functional silhouette suited to contemporary work and study environments. Constructed with a wood-based panel frame and paired with tempered glass doors and metal hardware, the cabinet delivers durable, daily-use performance. The cabinet body uses 16mm melamine-faced particle board, while lower door panels feature 18mm melamine-faced MDF for added rigidity. Upper doors combine 5mm tempered glass with slim aluminum frames, and adjustable shelves are made from 16mm melamine particle board. A zinc alloy cam lock with keys secures the lower storage zone, and the base plinth uses PVC or ABS edge-banded particle board for abrasion resistance. Carcass panels measure 25mm thick, back panels 9mm, door and drawer fronts 22mm, and shelves 25mm, contributing to a net reference weight of 65 kg. Drawer slides support 45 kg per pair and are rated for 50000 cycles, while hinges open to 165° and are rated for 80000 cycles. Each shelf holds a uniform distributed load of 30 kg. Practical functionality spans both storage zones. The upper glass-fronted shelves provide display storage for books, decor, or reference materials, with clear visibility paired with dust protection from the closed-door design. The lockable lower solid doors offer secure storage for confidential files and personal belongings. Shelves are fully adjustable to accommodate items of varying heights, letting users customize internal space to specific storage needs. This cabinet fits seamlessly into corporate office spaces including open-plan offices, executive offices, and file rooms. It also works well in libraries and study areas, where the glass section can showcase collections while keeping contents protected from dust and damage. For procurement, units above 1200mm in height require at least 2 wall fixing points for anti-tip safety. Each set ships in 2 cartons with a reference gross weight of 100 kg, total packaging volume of 0.65 m³, and an assembly time of 40 minutes per set. The recommended warranty coverage includes 5 years for the carcass, 3 years for hardware, and 2 years for the finish.
