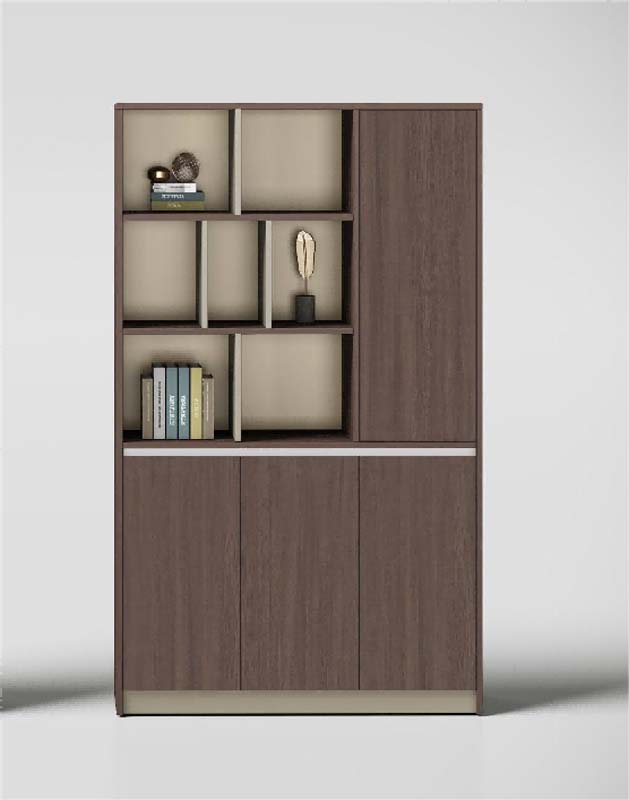

Product supplierModern Freestanding Office Display and Storage Cabinet, 18mm thick E1 grade particleboard, dark walnut wood-grain laminate finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 400 × 1800 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit weight | 85 kg | |
|---|---|---|
| Per-shelf static load capacity | 25 kg | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Anti-tip anchoring load rating | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| External cabinet panels | 18mm thick E1 grade particleboard, dark walnut wood-grain laminate finish | |
|---|---|---|
| Open cubby back panels | 5mm thick MDF, matte light beige laminate finish | |
| Vertical shelf dividers | 18mm thick particleboard, matching light beige laminate finish | |
| Horizontal accent trim | 1mm thick brushed PVC, silver metallic finish | |
| Door hinges | Cold-rolled steel, soft-close concealed 110-degree opening | |
| Base plinth | 18mm thick particleboard, light beige laminate finish | |
| Shelf surfaces | 18mm thick particleboard, dark walnut laminate edge banding | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper open storage | 6 divided cubby compartments for display and frequently accessed items | |
|---|---|---|
| Lower enclosed storage | 3 front-facing hinged doors concealing adjustable interior shelf space | |
| Full-height right compartment | Single tall door covering vertical storage spanning upper and lower right sections | |
| Soft-close door mechanism | Doors close with dampened motion to prevent slamming and reduce noise | |
| Adjustable interior shelves | Lower compartments support shelf height adjustment at 32mm increments | |
| Floor-standing installation | Freestanding unit requiring wall anti-tip anchoring for safety | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office placement | Positioned behind or beside executive desks for document and decor storage | |
|---|---|---|
| Open office filing zone | Used for shared team document storage and display in open plan areas | |
| Reception area display | Placed in reception or lounge areas to display decor and informational materials | |
| Small meeting room storage | Installed in meeting rooms to store supplies, documents and meeting materials | |
| Home office use | Suitable for home office storage combining book display and concealed supply storage |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office storage safety requirements | EN 14073:2004 | |
|---|---|---|
| Furniture surface resistance | EN 12720:2009+A1:2013 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Storage unit performance | ANSI/BIFMA X2019 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Panel formaldehyde emission | GB/T 18580E1 grade | |
|---|---|---|
| Furniture mechanical stability | GB/T 10357.4 | |
| Cabinet door durability | GB/T 10357.5 |
Standardized tender description text
This product must meet the following technical requirements: 1. Panel formaldehyde emission: GB/T 18580E1 grade; 2. Furniture mechanical stability: GB/T 10357.4; 3. Cabinet door durability: GB/T 10357.5; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
