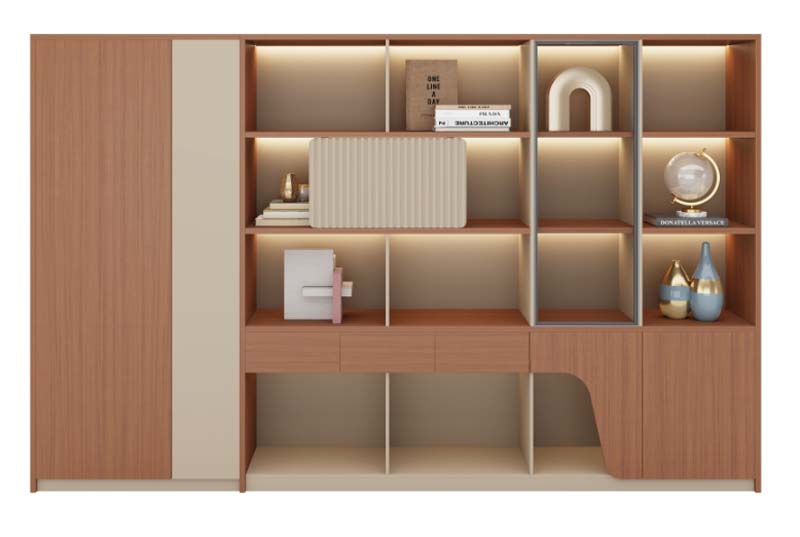

Product supplierTwo-Tone Walnut & Beige LED Lit Office Display Storage Bookcase, 18mm melamine-faced particleboard with walnut wood grain finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Left sliding door section width | 700 mm | |
| Middle-right open display section width | 1700 mm | |
| Upper open shelf tier height | 350 mm | |
| Middle open shelf tier height | 350 mm | |
| Lower drawer height | 180 mm | |
| Lower open shelf height | 420 mm | |
| Open shelf depth | 350 mm | |
| Enclosed cabinet internal depth | 380 mm | |
| Curved cutout open bay width | 400 mm | |
| Glass-framed display niche width | 300 mm | |
| Kickboard height | 50 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Open shelf static load capacity | 25 kg per shelf | |
|---|---|---|
| LED strip operational lifespan | 50000 hours | |
| Hinge/slide cycle rating | 80000 open/close cycles | |
| Net product weight | 170 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and door panels | 18mm melamine-faced particleboard with walnut wood grain finish | |
|---|---|---|
| Beige accent panels | 18mm matte light beige melamine engineered wood | |
| Shelf panels | 18mm melamine-faced engineered wood, walnut top surface with beige inner liner | |
| Edge banding | 2mm PVC edge banding on all exposed panel edges | |
| Drawer slides | Cold-rolled steel full-extension ball-bearing slides | |
| Sliding door hardware | Aluminum alloy top/bottom track system with nylon rollers | |
| LED lighting strips | Recessed 24V warm white LED strips mounted on upper shelf front edges | |
| Display niche frame | Grey powder-coated aluminum alloy frame | |
| Back panel | 5mm MDF backing panel with matte beige finish | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left sliding door storage | Horizontal sliding door conceals full-height closed storage for documents and supplies, no protruding swing clearance required | |
|---|---|---|
| Integrated shelf lighting | Warm white recessed LED strips illuminate all upper open display tiers, switch-controlled for accent lighting | |
| Three lower drawers | Three equal-width horizontal drawers on full-extension slides provide concealed storage for office supplies and small files | |
| Asymmetric lower open shelving | Right lower section includes curved cutout open bay for decorative display, three open bays separated by vertical dividers | |
| Fixed open display shelves | Upper open shelves are fixed at uniform heights for books, decor and awards, no adjustment required for office background use | |
| Glass-framed accent niche | Grey framed enclosed display shelf provides dust-resistant space for highlighted decorative items | |
| Wall anchoring provision | Two pre-installed anti-tip brackets secure cabinet to wall to prevent tipping in high-traffic office areas | |
| Cable management provision | Hidden routing channel behind shelves supports power supply for integrated LED lighting | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office background wall | Installed behind executive desk for document storage and corporate display of awards and decor | |
|---|---|---|
| Meeting room display storage | Used along meeting room walls to store reference materials and display company cultural items | |
| Reception area display | Positioned behind reception desk to showcase brand artifacts, reading materials and decorative objects | |
| Private study / home office | Installed as full-wall storage for books, work documents and personal collectibles | |
| Open office file storage zone | Used to partition open office areas while providing centralized document storage and display |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable for tip resistance and load testing | |
|---|---|---|
| EN 312:2010 | Specification for particleboard, applicable for panel structural performance requirements | |
| EN 62471:2008 | Photobiological safety of LED lighting products, applicable for integrated shelf light safety |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel construction and dimensional tolerance acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, minimum E1 grade required for indoor office use | |
| GB/T 4897.3-2003 | Specification for particleboard used in furniture construction, applicable for core material performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel construction and dimensional tolerance acceptance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, minimum E1 grade required for indoor office use; 3. GB/T 4897.3-2003: Specification for particleboard used in furniture construction, applicable for core material performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
