PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static self-weight reference	118 kg
Open shelf load capacity	25 kg per shelf
Recommended wall-anchor load	80 kg pull resistance
Seating or climbing capacity	0 kg
Color option count	2 visible finishes
Open shelf loading depth	360 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer frame and shelves	Wood-composite furniture board with grey matte melamine facing and 25 mm exposed panels
Back panel	9 mm wood-composite backing panel with grey finish
Lower doors	Five flat warm-white melamine-faced panel doors with concealed seams
Door hardware	Concealed cup hinges with 105 degree opening and push-to-open or slim-handle front
Base and plinth	Grey melamine-faced composite base rail with continuous floor contact
Edge treatment	PVC or ABS edge banding on exposed shelf and door edges, 1 mm minimum thickness

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display storage	10 open compartments provide segmented display space across the left tower and three main shelf rows
Concealed lower storage	Five hinged doors conceal files, samples, or personal items across the full 2000 mm right-hand section
Asymmetric organization	A 400 mm four-level left tower separates narrow items from wider display bays
Fixed shelf layout	Horizontal shelves and vertical dividers form a fixed non-modular grid

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packed gross weight	132 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Suitable behind a manager desk for binders, awards, books, and decorative objects because it combines open display with concealed storage
Meeting and lounge storage	Suited to a conference room, reception lounge, or project showroom where display items remain visible while clutter is stored behind five lower doors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BK-OFS-2400-400-2000-5D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BK-OFS-2400-400-2000-5D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BK-OFS-2400-400-2000-5DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

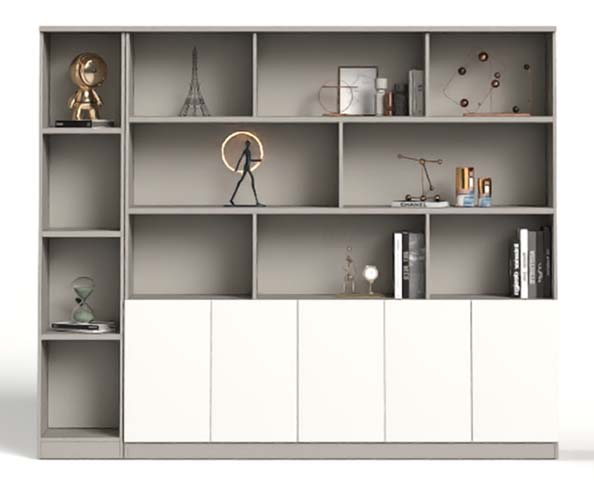

The Floor-Standing Open Display Bookcase with Five Lower Doors is a modern two-tone storage and display solution for professional interiors. Model BK-OFS-2400-2000D measures 2400 mm wide, 400 mm deep, and 2000 mm high, with an asymmetric layout that gives the piece a strong architectural presence. A narrow four-level left tower organizes compact objects, while the wider right-hand section uses three main open shelf rows above five full-width lower doors. Together, the fixed horizontal shelves and vertical dividers create ten open compartments and a clean, non-modular grid. Its grey matte melamine-faced wood-composite frame and open shelves provide a neutral backdrop, contrasted by five flat warm-white melamine panel doors with concealed seams. Exposed frame and shelf panels are 25 mm thick, while shelves are supported for distributed loading up to 30 kg per shelf, with a separate open-shelf load reference of 25 kg per shelf and 360 mm usable loading depth. The 9 mm grey-finished composite back panel completes the enclosure, and exposed shelf and door edges use PVC or ABS edge banding with a 1 mm minimum thickness. The grey melamine-faced composite base rail maintains continuous floor contact. The upper and side compartments keep books, awards, decorative pieces, and presentation items visible. Behind the five hinged lower doors, the full 2000 mm right-hand section conceals files, samples, personal items, and other items best kept out of view. Door hardware uses concealed cup hinges with a 105-degree opening, and the front may be specified with push-to-open operation or a slim-handle design. The product is offered in two visible finishes. This bookcase is well suited as an executive office backdrop behind a manager desk, where binders and objects can be displayed while working materials remain stored below. It also fits conference rooms, reception lounges, and project showrooms that require visible presentation space together with tidy concealed storage. It is not intended for seating or climbing, which carry a zero-kilogram capacity. A wall anchor with 80 kg pull resistance is recommended. Procurement planning should account for the 118 kg static self-weight, floor-standing installation, and fixed compartment configuration. Packing information includes a gross-weight reference of 132 kg across two cartons, with an alternate reference of 100 kg per set in three cartons; the stated packaging volume is 0.65 cubic metres per set. Assembly time is referenced at 40 minutes per set.

Floor-Standing Open Display Bookcase with Five Lower Doors Specifications
