OFC-DSP-2400W-BR-WL

Code：VU9S53V1
Request supplier quotes

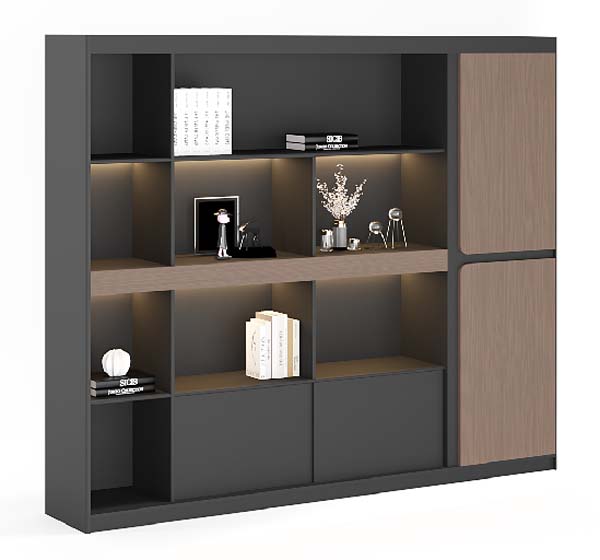

Modern Two-Tone Office Filing & Display Cabinet with Integrated LED Lighting Key Specifications 2026-08-04 15:02

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-DSP-2400W-BR-WL

1 active supplier(s) >>
CN汇帮家具SupplierYear 1Company Profile
Product supplierModern Two-Tone Office Filing & Display Cabinet with Integrated LED Lighting，Particleboard
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions2400 x 400 x 2000 mm
Left display section width1800 mm
Right enclosed door section width600 mm
Open shelf internal depth360 mm
Top open shelf internal height380 mm
Middle illuminated display shelf internal height400 mm
Lower open shelf internal height380 mm
Bottom open cubby internal height360 mm
Door panel thickness18 mm
Horizontal walnut accent strip thickness50 mm
Internal vertical divider thickness18 mm
Bottom base plinth height60 mm
Enclosed lower door section height380 mm
Lower door panel thickness18 mm
Right full-height door panel thickness18 mm
Back panel thickness5 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Assembled net weight range185 kg
Uniform shelf static load capacity30 kg per shelf
Integrated LED strip operating lifespan30000 hours
Recommended maximum storage capacity for standard A4 files180 files
Minimum operational clearance required in front of cabinet900 mm
Door hinge open/close cycle rating80000 cycles
Door hinge maximum opening angle110 degrees
Anti-tip connector load rating50 kg per connector
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Main structural panels18mm thick E1-grade melamine-faced particleboard, dark grey matte finish on frame, internal shelf surfaces and lower door panels
Accent and right door panels18mm thick melamine-faced particleboard, vertical walnut woodgrain finish
Back panel5mm thick hardboard dark grey matte finish, fixed to rear frame for structural rigidity
Shelf surfaces18mm melamine-faced particleboard, matching compartment finish with glued PVC edge banding on all exposed edges
Door hardwareMagnetic push-to-open latches, concealed European-style cabinet hinges with soft-close function
Integrated lighting components4000K warm white SMD LED strips recessed into the underside of each upper shelf, low-voltage 12V power supply
Base plinthSame dark grey melamine particleboard as main frame, sealed bottom edge to prevent moisture ingress
Edge banding1mm thick PVC edge banding color-matched to adjacent panel finish, hot-melt glued to all exposed panel edges
Main structural frame panels18mm thick E1-grade melamine-faced particleboard, dark grey matte finish on outer frame, internal shelf surfaces and lower door panels
Accent trim and right door panels18mm thick melamine-faced particleboard, vertical walnut woodgrain finish on horizontal divider and right full-height doors
Open shelf surfaces18mm melamine-faced particleboard, matching compartment finish with glued PVC edge banding on all exposed edges
Lower door hardwareMagnetic push-to-open latches, concealed European-style soft-close cabinet hinges
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Display storage functionMulti-tier open grid shelves with integrated warm LED lighting to illuminate displayed books, decor and awards, positioned at eye level for visibility
Concealed storage functionFour enclosed door compartments (two lower push-to-open dark grey doors, two right-side woodgrain doors) for hidden storage of files, supplies and personal items
Door operationPush-to-open soft-close doors require no external handles; press door surface to release magnetic latch, hinges close doors silently without slamming
LED lighting controlRecessed LED strips activate via hidden touch switch on cabinet side, with optional motion sensor activation for automatic illumination when approached
Storage partitioningFixed vertical and horizontal dividers create 8 separate open storage cubbies and 4 enclosed compartments to support organized storage of different item sizes
Floor installationFreestanding design requires no wall fixing for standard use, includes adjustable foot pads under base to level cabinet on uneven floors
Cable managementPre-cut 50mm diameter cable grommet in rear back panel of middle display shelf to route power for LED strips and small desktop devices
Surface resistanceMelamine panel surface is scratch and stain resistant, suitable for daily office use with standard cleaning products
Illuminated display storageMulti-tier open grid shelves with recessed under-shelf warm LED lighting to illuminate displayed books, decor and awards, with 3-level brightness adjustment via touch control
Concealed file storage6 enclosed compartments (2 lower dark grey push-to-open doors, 2 right-side woodgrain grip-edge doors, 2 lower middle dark grey doors) for hidden storage of files, office supplies and confidential documents
LED lighting operationRecessed LED strips activate via side-mounted touch switch, with 3 brightness levels (100%/60%/30%) and 30-minute automatic shutoff timer option for energy saving
Surface durabilityMelamine panel surface resists 2H pencil scratches and common office liquid stains (coffee, ink, water), cleanable with neutral detergent without finish damage
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages4
Largest carton dimensions2450 x 450 x 120 mm
Total shipping gross weight210 kg
Total shipping volume (CBM)0.62
On-site assembly time120 minutes
40ft HQ container loading quantity88 units
Assembly hardware kit contentsCam lock connectors, wood dowels, hinge sets, push-to-open latches, adjustable feet, LED driver, cable clips, assembly instructions
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive office backdropPositioned behind executive desks to store reference files, display awards and corporate decor, matching modern dark/woodgrain office desk collections
Open office team storage zoneInstalled in open plan office areas as shared team storage for documents, office supplies and display of team achievements
Conference room storage unitPlaced along conference room walls to store meeting materials, presentation supplies and decorative items, providing a professional backdrop for meetings
Manager private office storageUsed in private manager offices for combined open display of credentials and closed storage of confidential documents
Reception area display cabinetInstalled in corporate reception areas to display company brochures, awards and brand decor, creating a polished first impression for visitors
Executive office backdrop storagePositioned 100mm behind 2400mm wide executive desks to store reference files, display corporate awards and decorative items, matching modern dark/woodgrain executive desk collections
Open office shared storage zoneInstalled along open plan office partition walls as shared team storage for documents, office supplies and display of team achievements, with 900mm front clearance for multi-user access
Private manager office storageUsed in 20sqm private manager offices for combined open display of professional credentials and closed storage of confidential documents, handleless design maintaining a clean uncluttered aesthetic
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 14749:2016Safety and strength requirements for domestic and kitchen storage cabinets, applicable for shelf load, door durability and structural stability testing
EN 312:2010Specification for particleboard panels, applicable for panel structural grade and moisture resistance verification
EN 62471:2008Photobiological safety of LED light sources, applicable for blue light and eye safety verification of integrated LED strips
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable for panel thickness, edge banding, structural stability and finish quality verification
GB 18580-2017Formaldehyde emission limits for wood-based panels, E1 grade requirement of ≤0.124mg/m³ for all particleboard components
GB/T 4897-2015Specification for particleboard used in furniture, applicable for panel density, internal bond strength and moisture resistance verification
GB 7000.204-2008Safety requirements for built-in LED lighting in furniture, applicable for low-voltage circuit and insulation safety verification
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel thickness, edge banding, structural stability and finish quality verification;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade requirement of ≤0.124mg/m³ for all particleboard components;
3. GB/T 4897-2015: Specification for particleboard used in furniture, applicable for panel density, internal bond strength and moisture resistance verification;
4. GB 7000.204-2008: Safety requirements for built-in LED lighting in furniture, applicable for low-voltage circuit and insulation safety verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-DSP-2400W-BR-WL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-DSP-2400W-BR-WL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-DSP-2400W-BR-WLOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The HUIBANG Modern Two-Tone Office Filing & Display Cabinet with Integrated LED Lighting, model OFC-DSP-2400W-BR-WL, is a commercial-grade storage and display solution built for professional workspace use. Its visual design features a sleek two-tone finish: the mn frame, internal shelves, and lower door panels carry a dark grey matte surface, while horizontal accent trim and full-height right-side doors feature a vertical walnut woodgrn finish for warm, contemporary contrast. The layout splits into a wider left section with a 3-column open grid of tiered shelves, and a narrower right section with vertically stacked full-height doors; fixed dividers create distinct open cubbies and enclosed compartments for organized storage, with a rsed base plinth elevating the unit off the floor. Constructed from 18mm thick E1-grade melamine-faced particleboard for all primary structural and door panels, the cabinet uses 5mm thick hardboard for its rear panel, with color-matched PVC edge banding on all exposed edges to prevent wear. All doors operate via magnetic push-to-open latches pred with soft-close concealed hinges, eliminating protruding handles for a streamlined look. Recessed 4000K warm white SMD LED strips are fitted under upper shelves to illuminate display zones, controlled via a side-mounted touch switch with adjustable brightness levels and an automatic shutoff timer for energy efficiency. The freestanding unit includes adjustable foot pads for leveling on uneven floors, plus a pre-cut cable grommet in the middle shelf rear panel for clean cord routing. Its melamine surfaces resist common office scratches and liquid stns, suitable for regular cleaning with standard neutral detergents. Open shelves are sized to hold hardcover books, framed awards, decorative objects, and standard A4 files, while enclosed compartments provide concealed storage for confidential documents, office supplies, and small equipment. The cabinet fits a range of commercial spaces, including executive office backdrops behind desks, open-plan shared team storage zones, conference room wall units, private manager offices, and corporate reception areas for displaying brand materials and accolades; sufficient front clearance is required to allow full door opening and unobstructed access for multiple users. For procurement, note the cabinet ships flat-packed across multiple cartons, with on-site assembly by two trned installers requiring standard tools; loading capacities and hardware performance align with standard commercial office furniture specifications for this category. Final board grades and finish detls should be confirmed directly with the supplier prior to bulk orders, and wall-mounted anti-tip hardware is included for additional stability in high-traffic areas. The unit aligns with standard executive office cabinet scale, and its flat-pack design supports efficient bulk shipping for large workspace fit-out projects.
