PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2000 mm
Overall cabinet size	2400 x 400 x 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight	138 kg
Top surface distributed load	60 kg
Single adjustable shelf load	25 kg
Lower cabinet shelf distributed load	30 kg
Open shelf total storage load	175 kg
Lower cabinet total storage load	100 kg
Anti-overturning restraint requirement	2 wall anchors
Door hinge cycle rating for procurement	50000 cycles
Shelf surface scratch-resistance target	2 N coating adhesion grade 1
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	Taupe matte melamine-faced particleboard or MDF panels with sealed exposed edges
Lower doors	Five white matte slab door panels with flush vertical gaps
Shelves and dividers	25 mm taupe melamine horizontal shelves and vertical partitions with edge banding
Back panel	9 mm thin panel backing in matching taupe finish
Base plinth	Continuous taupe recessed plinth with horizontal front profile
Door hardware	Concealed side-mounted hinges and push-to-open or slim-handle hardware

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display organization	Eight open compartments across three shelf rows provide visible storage for books, binders, and display objects
Concealed lower storage	Five white doors enclose the lower storage zone for files and materials not intended for display
Internal shelf arrangement	10 lower storage positions formed by five doors and two internal shelf levels
Floor-standing installation	The cabinet rests on a continuous plinth and requires levelling plus wall anchoring before loading

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packed carton dimensions	2460 x 460 x 180 mm for the two main panel cartons and 1250 x 460 x 160 mm for two hardware and door cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office storage and display	Suitable behind executive desks or in manager offices for binders, awards, books, and decorative objects
Meeting and reception areas	Fits reception lounges and collaboration zones where materials need concealed lower storage and curated upper display

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety and stability	EN 14749 applies to safety, strength, and durability requirements for domestic and non-domestic storage furniture
Surface performance	EN 12720 applies to resistance to cold liquids for furniture surfaces
Formaldehyde panel classification	EN 13986 applies to wood-based panels used in construction and interior fit-out

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Dimensional and structural acceptance	GB/T 3324:2017 applies to general technical requirements, dimensions, and workmanship for wooden furniture
Surface durability test	GB/T 4893.1 applies to wet-heat resistance tests for furniture surfaces
Formaldehyde emission	GB 18580 applies to formaldehyde emission from interior-decoration wood-based panels
Stability verification	GB/T 10357.7 applies to furniture floor stability and overturning tests

Standardized tender description text

This product must meet the following technical requirements:
1. Dimensional and structural acceptance: GB/T 3324:2017 applies to general technical requirements, dimensions, and workmanship for wooden furniture;
2. Surface durability test: GB/T 4893.1 applies to wet-heat resistance tests for furniture surfaces;
3. Formaldehyde emission: GB 18580 applies to formaldehyde emission from interior-decoration wood-based panels;
4. Stability verification: GB/T 10357.7 applies to furniture floor stability and overturning tests;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FB-CAB-2400-400-2000-5D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FB-CAB-2400-400-2000-5D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FB-CAB-2400-400-2000-5DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

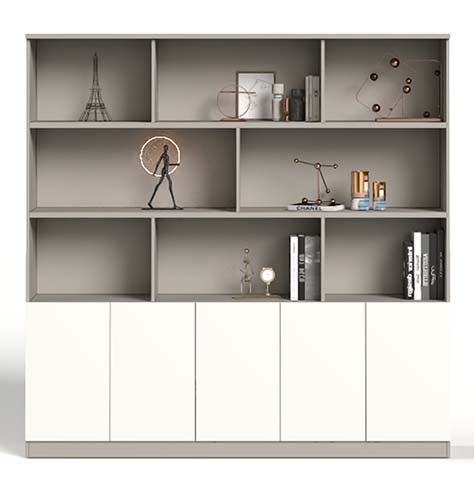

This floor-standing storage cabinet combines a broad taupe open-display area with a crisp white five-door lower section, creating a structured two-tone piece suited to organized office and reception environments. Its tall, wide form uses a horizontal base and a continuous recessed taupe plinth, while the upper area is divided into eight open compartments across three shelf rows. Vertical partitions give the display zone a regular architectural layout, and the five white matte slab doors below present a clean, uniform front with flush vertical gaps. The contrast between taupe shelving and white doors supports a refined neutral interior without the need for decorative detailing. Construction uses matte melamine-faced engineered wood, with taupe particleboard or MDF panels and sealed exposed edges. The carcass and shelves are 25 mm thick, the door fronts are 22 mm thick, and the matching taupe back panel is 9 mm thick. Shelves and dividers feature edge banding, while the lower doors use concealed side-mounted hinges with push-to-open or slim-handle hardware. The concealed panel construction maintains a smooth exterior, and the recessed plinth gives the cabinet a grounded, horizontal profile. Functionally, the open compartments provide visible storage for books, binders, awards, and decorative objects, while the five lower doors conceal files and materials that are not intended for display. Behind the doors, five door bays and two internal shelf levels create ten lower storage positions. The top surface is rated for a 60 kg distributed load, an adjustable shelf for 25 kg, and a lower cabinet shelf for 30 kg. Total open-shelf storage load is 175 kg, with lower-cabinet storage load at 100 kg. These capacities support planned, evenly distributed storage rather than concentrated loading. The cabinet is appropriate behind executive desks, in manager offices, and in reception lounges or collaboration zones that require both curated display and hidden storage. It can also serve refined residential studies or home offices where a larger built-in look is desired. Procurement planning should account for the 2400 x 400 x 2000 mm footprint, 138 kg net weight, floor levelling, and required wall anchoring using two restraints before loading. Delivery records include alternative carton configurations, so buyers should confirm packaging count, handling access, and assembly arrangements. The listed assembly reference is 40 minutes per set.

Taupe and White Open-Shelf Storage Cabinet with Five Lower Doors Specifications
