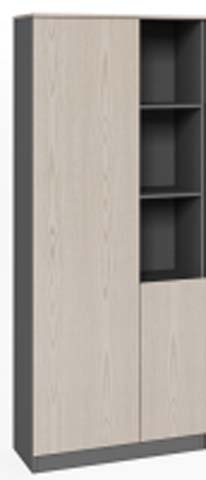

Product supplierTwo-Tone Freestanding Tall Storage Cabinet with Mixed Open and Closed Storage, 18mm P2 grade particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 2010 mm | |
|---|---|---|
| Full-height left door panel width | 600 mm | |
| Right section width | 300 mm | |
| Each upper open cubby internal height | 340 mm | |
| Open cubby internal depth | 360 mm | |
| Lower right closed door height | 680 mm | |
| Left closed compartment internal depth | 370 mm | |
| Plinth base height | 100 mm | |
| Side panel thickness | 18 mm | |
| Door panel thickness | 18 mm | |
| Shelf panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit static load capacity | 114 kg | |
|---|---|---|
| Wall anti-tip connector load rating | 50 kg | |
| Door hinge open/close cycle rating | 20000 cycles | |
| Net product weight | 60 kg | |
| Recommended maximum stored item height in open cubbies | 320 mm | |
| Adjustable shelf position increment | 32 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass substrate | 18mm P2 grade particleboard | |
|---|---|---|
| Door panel finish | Light washed oak grain melamine laminate | |
| Side panel and plinth finish | Matte charcoal melamine laminate | |
| Open cubby interior finish | Matte dark grey laminate | |
| Back panel | 9mm hardboard with dark finish | |
| Door hinges | Cold-rolled steel concealed hinges | |
| Shelf supports | Zinc-plated steel shelf pins | |
| Edge banding | 1mm PVC edge banding matching panel finish | |
| Anti-tip hardware | Powder-coated steel strap with wall anchors | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left full-height door operation | 110-degree swing open with concealed hinges | |
|---|---|---|
| Lower right door operation | 110-degree swing open with concealed hinges | |
| Upper open storage function | Three fixed open display cubbies for books and decor | |
| Internal shelf adjustability | Multi-position adjustable shelves in closed compartments | |
| Anti-tip safety function | Wall-mounted anchor strap prevents forward tipping | |
| Handleless door design | Push-to-open or recessed edge door operation | |
| Plinth base support | Integrated fixed plinth provides even floor support | |
| Surface maintenance | Laminate surface wipes clean with mild detergent and dry cloth | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office storage | Suitable for filing documents, books and office supplies next to a desk | |
|---|---|---|
| Living room display storage | Ideal for displaying decor, books and media in living spaces | |
| Entryway hallway storage | Provides enclosed storage for bags, shoes and outerwear in entry zones | |
| Residential study application | Functions as a bookcase and concealed supply storage in home studies | |
| Target user segment | Suited for residential and light commercial users requiring mixed storage | |
| Placement requirement | Position against a flat wall with installed anti-tip anchor for safety |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage units, includes anti-tip requirements | |
|---|---|---|
| EN 312:2010 | Particleboard performance specifications for furniture-grade panel use | |
| EN 13986:2004+A1:2015 | Wood-based panel formaldehyde emission Class E1 for indoor air quality |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for cabinet structural integrity | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor use | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable for carcass substrateAcceptance inspection |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for cabinet structural integrity; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor use; 3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable for carcass substrateAcceptance inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
