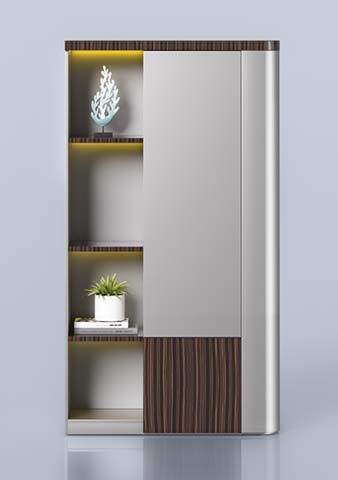

Product supplierModern Tall Display Storage Cabinet with LED Open Shelves and Closed Door, 16 mm particleboard core with matte light-gray melamine finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 350 × 1800 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 45 kg | |
|---|---|---|
| Open shelf uniform load per shelf | 15 kg | |
| Closed compartment load capacity | 30 kg | |
| LED strip operating voltage | 24 V DC | |
| Service life reference for LED strip | 30000 hours | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet body panels | 16 mm particleboard core with matte light-gray melamine finish | |
|---|---|---|
| Right upper door panel | 20 mm MDF substrate with matte light-gray lacquer finish | |
| Fluted accent panels (top and bottom right) | 18 mm MDF with vertical ribbed walnut-grain veneer | |
| Side vertical trims | 8 mm clear tempered glass with polished edges | |
| Open shelf surfaces | 25 mm particleboard with matching melamine edge banding | |
| Interior LED light source | Surface-mounted warm-white SMD LED strip with aluminum channel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Dual-zone storage layout | Left open display shelves and right closed storage cabinet combine decorative display with concealed storage | |
|---|---|---|
| Integrated shelf accent lighting | Warm-white LED strips recessed under front lip of each open shelf illuminate displayed items | |
| Fixed open display shelves | Four horizontal shelves in left column provide fixed-height display tiers | |
| Single-door closed compartment | Right upper section features a flat swing door covering tall enclosed storage space |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room display and storage | Suitable for living room walls to display decor pieces and store everyday items behind closed doors | |
|---|---|---|
| Office reception or lounge area | Suitable for reception zones and lounge areas to showcase samples and store supplies |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Formaldehyde emission for wood panels | EN 13986:2004+A1:2015, recommended class E1 | |
|---|---|---|
| Furniture safety - Storage cabinets | EN 14749:2016, recommended for domestic and kitchen storage units | |
| Built-in LED luminaire safety | EN 60598:2013, recommended for furniture-integrated lighting |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Storage furniture shelf performance | ANSI/BIFMA X2020recommended for shelf load and cabinet stability |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Wood-based panel formaldehyde emission | GB/T 39600recommended acceptance grade E1 | |
|---|---|---|
| Interior LED lighting safety | GB 7000.204recommended for built-in furniture luminaires |
Standardized tender description text
This product must meet the following technical requirements: 1. Wood-based panel formaldehyde emission: GB/T 39600recommended acceptance grade E1; 2. Interior LED lighting safety: GB 7000.204recommended for built-in furniture luminaires; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
