PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static shelf load per compartment	30 kg
Lower enclosed storage load	25 kg per door bay
Top surface load	40 kg
Cabinet net weight range	92 kg
Five open display compartments	5 compartments
Four lower storage doors	4 doors
Recommended wall-anchor load capacity	100 kg minimum
Shelf deflection at rated load	L/200
Door cycle durability	50,000 open-close cycles
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	Matte light gray wood-composite panels with melamine or laminate facing
Lower door fronts	White flat-panel engineered wood doors with matte finish
Back panel	Light gray smooth panel backing all open bays
Edge treatment	Color-matched PVC or ABS edge banding on exposed shelf and carcass edges
Plinth base	Continuous gray engineered baseboard with recessed toe space
Internal hardware	Concealed hinges or horizontal sliding door gear with adjustable fittings

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display storage	Five open bays provide immediate access for books, binders, trophies, and decorative objects
Concealed lower storage	Four white door fronts enclose the lower storage zone for clutter-free office filing or supplies
Mixed zoning layout	The upper 1200 mm zone is open display space while the lower 700 mm zone is enclosed storage
Anti-tip installation	The floor-standing cabinet should be secured to a structural wall with two metal restraint straps or a wall cleat

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Manager or executive office	Suitable behind or beside a desk for books, awards, decorative objects, and concealed files
Meeting room or reception display area	Suitable for presentation materials, company publications, and decorative displays with concealed lower storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OBC-1600-40-2000-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OBC-1600-40-2000-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OBC-1600-40-2000-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

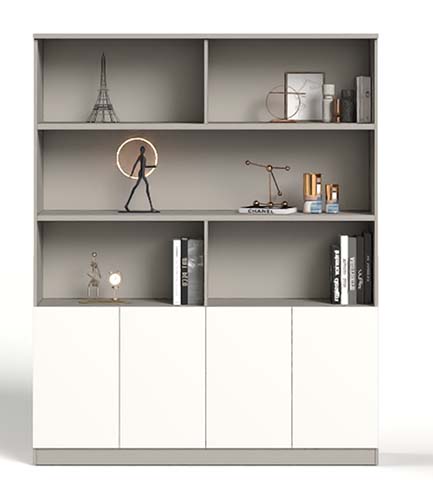

The Four-Door Open Shelf Storage Cabinet with Display Compartments is a floor-standing open bookshelf designed to combine visible presentation space with concealed lower storage. Its modern form is organized into two distinct zones: an upper open display area with five compartments backed by a smooth light gray panel, and a lower enclosed storage area fitted with four white flat-panel doors. The matte light gray wood-composite shelving and carcass create a restrained commercial appearance, while the white matte door fronts provide a clean visual contrast. A continuous gray engineered plinth base with a recessed toe space supports the cabinet and gives the lower section a built-in, furniture-style profile. Construction uses 25 mm matte light gray wood-composite panels with melamine or laminate facing for the carcass and shelves, a 9 mm light gray back panel, and 22 mm engineered wood door fronts with a matte finish. Exposed shelf and carcass edges are protected with color-matched PVC or ABS edge banding. The lower doors operate with concealed hinges or horizontal sliding door gear and adjustable fittings, depending on the selected configuration. The cabinet is rated for a 30 kg static shelf load per open compartment, 25 kg per lower door bay, and a 40 kg load on the top surface. Functionally, the five open bays provide immediate access to books, binders, trophies, decorative objects, presentation materials, and company publications. The four lower doors hide office filing, supplies, or other items that are best kept out of view, supporting a tidy workspace. The mixed layout places display storage in the upper 1200 mm zone and enclosed storage in the lower 700 mm zone, making frequently displayed items easy to see while keeping practical storage within reach. This cabinet is well suited to manager or executive offices, where it can be placed behind or beside a desk for books, awards, decorative pieces, and concealed files. It is also appropriate for meeting rooms and reception display areas, where publications, presentation materials, and branded or decorative objects can be shown above closed storage. The unit is supplied unbranded under model OBC-1600-2000-WG. Procurement planning should account for its substantial floor-standing structure and the need for professional installation. For safety, the cabinet should be secured to a structural wall using two metal restraint straps or a wall cleat, with a recommended wall-anchor load capacity of 100 kg minimum. Packaging references indicate one set split across cartons, a packaged gross weight of 100 kg per set, and a reference assembly time of 40 minutes per set. Buyers should confirm the exact carton count, delivery handling, door mechanism, site access, and wall construction before purchase.
