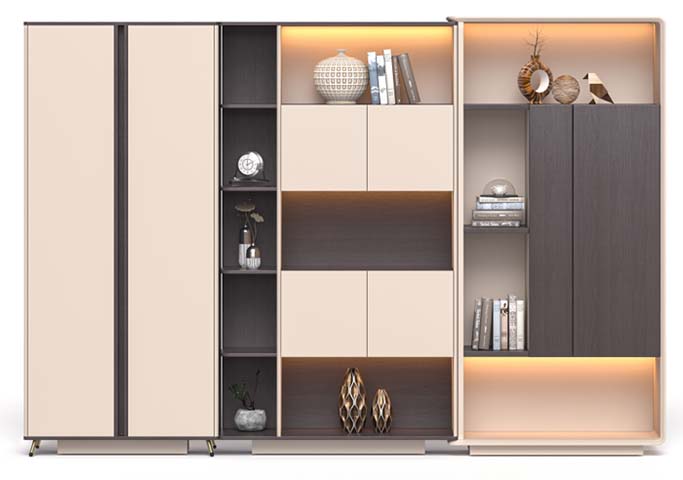

Modular Tall Storage Cabinet with Open Display Shelves and Integrated Warm Lighting (model TC-DISP-3200-2200-CB) is listed under Panel-type Filing Cabinet. Dimensions: 3200 × 420 × 2200 mm. Materials: Matte cream engineered wood panels with sealed edges, forming flush overlay doors and outer frames. Load capacity: 25 kg per shelf. Product Features: contemporary,style,modular,high,cabinet,closed,doors,open,display,shelves,integrated,LED,lighting. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | TC-DISP-3200-2200-CB |
| Overall dimensions (W × D × H) | 3200 × 420 × 2200 mm | Carcass Panel Thickness | 25 mm |
| Back Panel Thickness | 9 mm | Door / Drawer Front Thickness | 22 mm |
| Shelf Thickness | 25 mm | net weight | 260 kg |
| packaged gross weight | 300 kg | Fixed shelf static load | 25 kg per shelf |
| Adjustable shelf static load | 20 kg per shelf | Top surface static load | 40 kg |
| Door hinge load rating | 8 kg per door leaf | Hinge durability | 80,000 opening cycles |
| Drawer slide durability | Not applicable | Recommended occupancy during movement | 2 people |
| Suggested user load safety factor | 2.0 | Cream door and frame panels | Matte cream engineered wood panels with sealed edges, forming flush overlay doors and outer frames |
| Dark interior panels | Dark wood-grain melamine-faced engineered board used for shelves, backs, and right-hand doors | Carcass construction | 18 mm board sides and dividers joined with cam bolts, dowels, and corner brackets at module joints |
| Back structure | 9 mm dark engineered wood or hardboard back set into a rebated frame | Edge banding | 2 mm PVC or ABS edge banding on exposed door and shelf edges, with 0.6 mm banding on concealed edges |
| Support feet and plinth | Black or dark bronze metal cylindrical feet with screw-in levelers and a matching recessed panel plinth | Closed storage layout | Two full-height cream doors, four central cream doors, and two dark right-side doors provide concealed storage separated by fixed vertical dividers |
| Open display organization | Five narrow left compartments and multiple wider central and right bays provide staged display space for books and decorative objects | Integrated lighting | Warm LED strips are recessed at the upper central bay and lower right bay, requiring a low-voltage driver and concealed cable routing |
| Door hardware and installation | Side-hinged overlay doors use concealed hinges with 105-degree opening and a wall anchor is required for the 2200 mm high assembly | Largest carton dimensions | 2300 x 480 x 120 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
| Reference Packaging Volume | 0.65 m³/set | Executive office and lounge display | Suitable behind a reception sofa or executive lounge where books, art objects, and concealed materials need combined display and storage |
| Reception and meeting support area | Recommended for reception backwalls or meeting-room break areas requiring 3200 mm visual storage without a knee opening | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 420 × 2200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| net weight | 260 kg | |
|---|---|---|
| packaged gross weight | 300 kg | |
| Fixed shelf static load | 25 kg per shelf | |
| Adjustable shelf static load | 20 kg per shelf | |
| Top surface static load | 40 kg | |
| Door hinge load rating | 8 kg per door leaf | |
| Hinge durability | 80,000 opening cycles | |
| Drawer slide durability | Not applicable | |
| Recommended occupancy during movement | 2 people | |
| Suggested user load safety factor | 2.0 |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cream door and frame panels | Matte cream engineered wood panels with sealed edges, forming flush overlay doors and outer frames | |
|---|---|---|
| Dark interior panels | Dark wood-grain melamine-faced engineered board used for shelves, backs, and right-hand doors | |
| Carcass construction | 18 mm board sides and dividers joined with cam bolts, dowels, and corner brackets at module joints | |
| Back structure | 9 mm dark engineered wood or hardboard back set into a rebated frame | |
| Edge banding | 2 mm PVC or ABS edge banding on exposed door and shelf edges, with 0.6 mm banding on concealed edges | |
| Support feet and plinth | Black or dark bronze metal cylindrical feet with screw-in levelers and a matching recessed panel plinth |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Closed storage layout | Two full-height cream doors, four central cream doors, and two dark right-side doors provide concealed storage separated by fixed vertical dividers | |
|---|---|---|
| Open display organization | Five narrow left compartments and multiple wider central and right bays provide staged display space for books and decorative objects | |
| Integrated lighting | Warm LED strips are recessed at the upper central bay and lower right bay, requiring a low-voltage driver and concealed cable routing | |
| Door hardware and installation | Side-hinged overlay doors use concealed hinges with 105-degree opening and a wall anchor is required for the 2200 mm high assembly |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 2300 x 480 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office and lounge display | Suitable behind a reception sofa or executive lounge where books, art objects, and concealed materials need combined display and storage | |
|---|---|---|
| Reception and meeting support area | Recommended for reception backwalls or meeting-room break areas requiring 3200 mm visual storage without a knee opening |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
