Automatic mm / inch conversion · Core engineering specifications

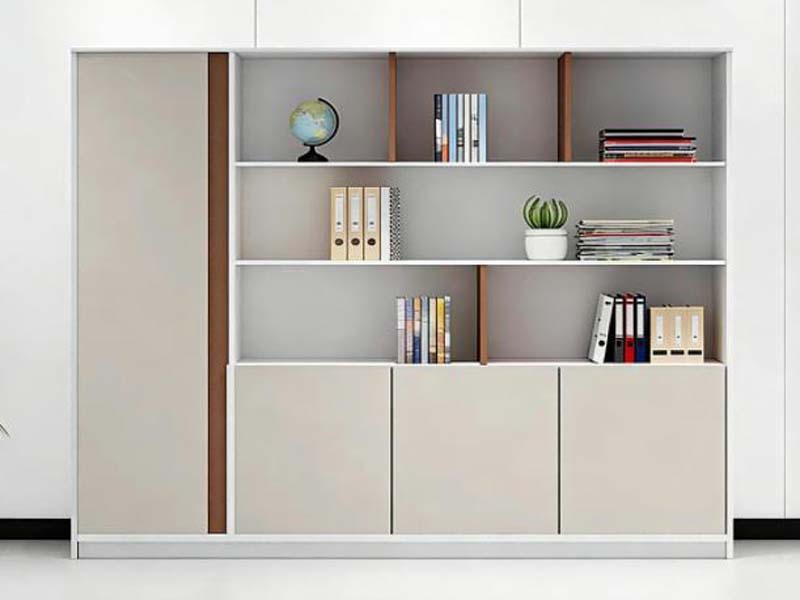

| overall dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| sliding door compartment width | 700 mm | |
| open shelf compartment net height per tier | 340 mm | |
| lower closed door compartment height | 720 mm | |
| open shelf depth | 370 mm | |
| vertical shelf divider thickness | 18 mm | |
| main body panel thickness | 18 mm | |
| top panel thickness | 25 mm | |
| back panel thickness | 9 mm | |
| plinth base height | 60 mm | |
| edge band thickness | 2 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| adjustable shelf static load capacity | 45 kg | |
|---|---|---|
| sliding door cycle rating | 50000 open/close cycles | |
| hinge cycle rating for lower doors | 80000 open/close cycles | |
| surface scratch resistance | 2000 revolutions | |
| structural warranty period | 5 years | |
| applicable document storage capacity | 60 standard A4 ring binders | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| cabinet carcass | E1-grade particle board | |
|---|---|---|
| surface finish | Matte beige and white melamine laminate | |
| accent trim | Wood-tone laminate vertical dividers and side trim | |
| sliding door hardware | Concealed aluminum sliding rail | |
| lower door hardware | Concealed push-to-open hinges | |
| shelf supports | Metal shelf pegs with 50mm adjustment increments | |
| back panel | 9mm hardboard | |
| edge banding | 2mm PVC edge trim | |
| plinth base | Laminated particle board | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| left sliding door storage | Full-height concealed compartment accessed via side-sliding door | |
|---|---|---|
| upper open shelving | 3 tiers of height-adjustable open shelves divided by vertical panels | |
| lower closed storage | 3 handleless push-to-open doors concealing lower compartments | |
| wall anti-tip anchoring | 2 included anti-tip brackets secure unit to wall | |
| shelf height adjustment | 50mm incremental height adjustment for open shelves | |
| cable management compatibility | Pre-drilled rear access points for optional integrated lighting | |
| door opening angle for lower cabinets | 110 degrees | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| executive office background | Installed as wall-aligned background storage behind executive desks | |
|---|---|---|
| open office filing area | Used in shared document storage zones for departmental files | |
| meeting room storage | Placed along meeting room walls for supplies, documents and decor | |
| private study home office | Used in residential home offices for book and document storage | |
| reception area display | Positioned in reception spaces to display credentials, books and decor |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements for tall floor-standing units | |
|---|---|---|
| EN 312:2010 | Performance specifications for particle board used in non-load bearing furniture | |
| EN 12521:2015 | Durability and stability requirements for commercial office furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance and durability standard for office applications | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Sustainability standard for furniture materials and emissions |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural performanceAcceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, mandatory for indoor office furniture | |
| GB/T 4897.3-2015 | Performance requirements for particle board used in furniture construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performanceAcceptance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, mandatory for indoor office furniture; 3. GB/T 4897.3-2015: Performance requirements for particle board used in furniture construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
