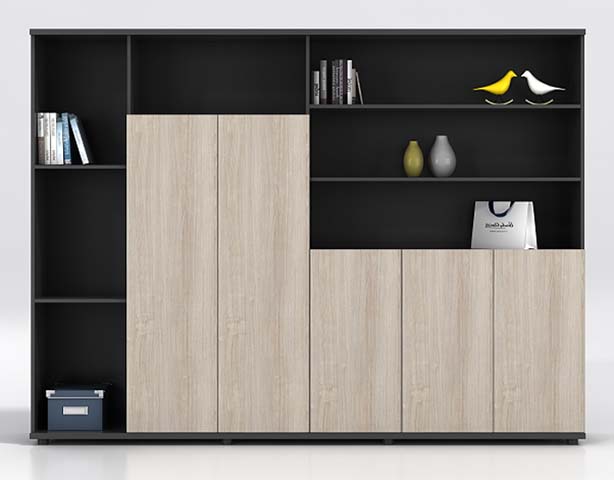

Asymmetrical Office Display Storage Cabinet with Mixed Open Shelves and Closed Doors (model OFC-STG-ASYM-2400-BK-OAK) is listed under Panel-type Filing Cabinet, with overall dimensions of 2400 × 400 × 2000 mm and main material of Particle‑board (PB). Load capacity: 90 kg. Certifications: modern,style,mixed,open/closed,storage,floor-standing,asymmetrical,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2400 x 400 x 2000 mm | |
|---|---|---|
| Left open shelf section width | 480 mm | |
| Middle tall cabinet section width | 800 mm | |
| Right mixed storage section width | 1120 mm | |
| Open shelf vertical clearance per tier | 380 mm | |
| Middle tall door height | 1600 mm | |
| Right lower cabinet door height | 640 mm | |
| Carcass panel thickness | 18 mm | |
| Door panel thickness | 18 mm | |
| Shelf panel thickness | 25 mm | |
| Base plinth height | 40 mm | |
| Frame edge thickness | 12 mm | |
| Middle cabinet internal shelf count | 3 | |
| Right lower cabinet internal shelf count | 1 | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per open shelf static load capacity | 90 kg | |
|---|---|---|
| Unit net weight | 128 kg | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Edge band wear resistance | 2000 abrasion cycles | |
| Anti-tip fastener load rating | 100 kg per connector | |
| Warranty period | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and shelving substrate | E1 grade particleboard with matte black melamine laminate finish | |
|---|---|---|
| Door panel substrate | E1 grade MDF with bleached light oak wood grain melamine veneer | |
| Structural framing | 1.2mm thick cold-rolled steel with matte black powder coating | |
| Door hinges | Cold-rolled steel soft-close concealed hinges | |
| Edge banding | 1mm thick PVC edge banding matching panel finish | |
| Base support feet | Reinforced ABS plastic adjustable leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Soft-close concealed hinges open to 110 degrees for full interior access | |
|---|---|---|
| Shelf adjustability | Middle cabinet shelves support 50mm height adjustments via metal shelf pins | |
| Storage configuration | Mixed layout: 7 open display shelves and 2 enclosed cabinet zones | |
| Anti-tip protection | Two wall-mounted anti-tip straps secure unit to wall studs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Installed behind executive desks for document storage and curated display of corporate decor | |
|---|---|---|
| Open office break-out zone | Used as a room divider or wall storage for shared office supplies and reading materials |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to stability and load testing | |
|---|---|---|
| EN 14074:2004 | Office storage furniture test methods for structural strength and durability | |
| EN 312:2010 | Particleboard performance specifications for furniture structural applications |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for commercial office environments | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental impact |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural quality checks | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for office use | |
| GB/T 4897.3-2015 | Particleboard performance requirements for furniture-grade structural panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality checks; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for office use; 3. GB/T 4897.3-2015: Particleboard performance requirements for furniture-grade structural panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
