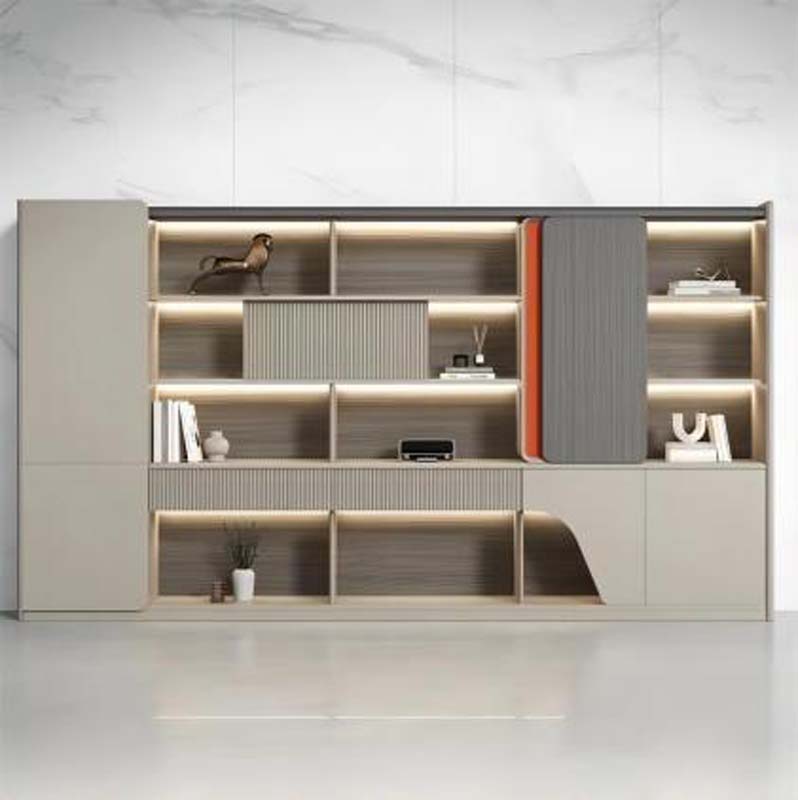

Product supplierFull-Height Asymmetrical Office Bookcase Storage Cabinet with Integrated LED Lighting, 18mm moisture-resistant particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3980 × 400 × 2400 mm | |
|---|---|---|
| open shelf tier height | 350 mm | |
| middle fluted drawer bank height | 250 mm | |
| solid side cabinet door width | 600 mm | |
| fluted vertical sliding door width | 800 mm | |
| vertical orange accent panel width | 80 mm | |
| shelf panel thickness | 18 mm | |
| back panel thickness | 9 mm | |
| lower curved cutout opening height | 300 mm | |
| clearance under cabinet base | 30 mm | |
| edge band thickness | 2 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| shelf static load capacity | 50 kg/sqm | |
|---|---|---|
| total cabinet net weight | 380 kg | |
| LED illuminance under shelves | 300 lux | |
| LED color temperature | 4000K | |
| hinge cycle rating | 80000 open/close cycles | |
| drawer slide cycle rating | 50000 open/close cycles | |
| surface scratch resistance | 2N | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| carcass substrate | 18mm moisture-resistant particleboard | |
|---|---|---|
| carcass finish | Matte light grey melamine laminate | |
| fluted door/drawer panels | 18mm MDF with vertical ribbed texture | |
| accent panel | High-pressure laminate burnt orange finish | |
| open shelf back panels | Wood-grain melamine finish | |
| edge banding | 2mm PVC matching panel color | |
| hardware | Cold-rolled steel push-to-open latches and concealed hinges | |
| lighting components | Recessed SMD LED strip lights with aluminum channel | |
| base plinth | 18mm matching melamine engineered wood | |
| internal shelf supports | Zinc-plated steel shelf pins | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| door operation | Push-to-open bounce latch mechanism for handleless access | |
|---|---|---|
| fluted middle panel function | Horizontal pull-out drawer bank for document storage | |
| vertical fluted panel function | Sliding door concealing middle open shelf sections | |
| LED lighting function | Per-tier recessed warm white illumination for display items | |
| shelf adjustability | Removable shelf pins support 50mm height increments for variable storage | |
| lower curved cutout function | Open floor compartment for bulky items or robotic vacuum access | |
| hinge opening angle | 110 degrees for cabinet doors | |
| cable management | Concealed rear channel for LED power and device charging cables | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive office backdrop | Installed behind executive desks for document storage and award/decor display | |
|---|---|---|
| open-plan office display zone | Used in shared office areas to showcase company credentials and reference materials | |
| manager private office storage | Provides concealed file storage and illuminated display for personal office items | |
| reception back wall storage | Suitable for reception area backdrops to display decor and store reception supplies | |
| home office library storage | Adaptable for high-end home studies for book and collectible display | |
| recommended clearance in front | 1800 mm clear floor space for full door and drawer access |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 312:2010 | Specification for particleboard suitability for dry-zone office furniture carcasses | |
|---|---|---|
| EN 14749:2016 | Safety and performance requirements for domestic and office storage furniture | |
| EN 62471:2008 | Photobiological safety standard for integrated LED lighting in furniture | |
| EN 120:1992 | Formaldehyde emission testing method for wood-based panel components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Performance and safety standard for office storage units, applicable for load and stability testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel storage cabinet construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, recommended ENF ≤0.025mg/m³ acceptance level | |
| GB/T 4897-2015 | Specification for particleboard used in furniture structural carcass components | |
| GB 7000.201-2008 | Safety requirements for fixed general-purpose LED lighting luminaires in furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel storage cabinet construction; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended ENF ≤0.025mg/m³ acceptance level; 3. GB/T 4897-2015: Specification for particleboard used in furniture structural carcass components; 4. GB 7000.201-2008: Safety requirements for fixed general-purpose LED lighting luminaires in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
