PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1000 × 380 × 2100 mm | |
|---|---|---|
| Tapered leg height | 120 mm | |
| Central cabinet door size (single) | 400 x 600 mm | |
| Large open cubby internal height (lower right) | 420 mm | |
| Book shelf clear height (middle left) | 260 mm | |
| Display shelf clear height (upper tiers) | 320 mm | |
| Open shelf board thickness | 18 mm | |
| Outer frame member thickness | 35 mm | |
| Base plinth height | 80 mm | |

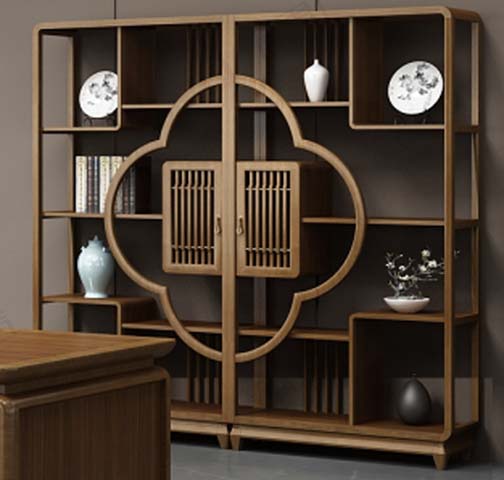

| Quatrefoil decorative frame outer width | 780 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit static load capacity | 90 kg | |
|---|---|---|
| Product net weight | 90 kg | |
| Hinge open/close cycle rating | 50000 cycles | |
| Door pull static load rating | 50 N | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main structural frame | Solid hardwood with light walnut wood finish | |
|---|---|---|
| Open shelf panels | 18mm thick solid wood panels with rounded edge detailing | |
| Central cabinet doors | Solid wood frame with vertical wooden slat grille inserts | |
| Back panel | 9mm thick plywood back panel with matching wood veneer | |
| Decorative quatrefoil frame | Bent solid wood molding with smooth rounded edges | |
| Cabinet base and legs | Solid hardwood tapered legs with floor protection pads | |
| Door hardware pulls | Small solid brass-toned metal minimalist pulls | |
| Door hinges | Concealed metal cabinet hinges with 95 degree opening angle | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Asymmetrical open display shelving | Mixed size open cubbies across left and right sections for decor display | |
|---|---|---|
| Central enclosed slatted door storage | Two hinged doors conceal hidden storage compartment behind grille fronts | |
| Elevated leg design | Short tapered legs lift cabinet 120mm off floor for floor cleaning access | |
| Fixed shelf configuration | All open shelves are permanently fixed for stable display of heavy ceramics | |
| Ventilated door design | Vertical slat grille doors allow air circulation for stored collectibles | |
| Wall anti-tip anchoring | Pre-drilled anti-tip connector points for wall attachment to prevent tipping | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home living room display | Place against feature wall for displaying ceramic art, decorative plates and collectibles | |
|---|---|---|
| Tea room storage and display | Store and display tea sets, tea caddies and tea ceremony accessories | |
| Study/office book and decor storage | Position adjacent to desk for book storage and scholarly ornament display | |
| Entryway accent furnishing | Use as decorative entry storage for small decor and household items | |
| Hospitality lounge decor | Install in Chinese style restaurants or lounge areas for cultural artifact display |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops safety requirements for tall cabinets | |
|---|---|---|
| EN 12521:2015 | Furniture strength durability safety for domestic seating and storage units |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural performance verification | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture | |
| GB/T 4893.8-2013 | Furniture surface test for abrasion resistance of wood finishes |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performance verification; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture; 3. GB/T 4893.8-2013: Furniture surface test for abrasion resistance of wood finishes; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
