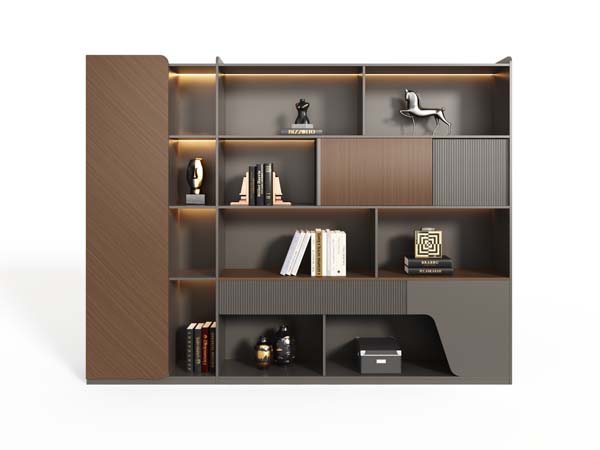

Product supplierAsymmetrical LED-Lit Office Display Bookcase with Fluted Closed Storage, E0-grade MDF core board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Overall unit dimensions | 2400 x 400 x 2000 mm | |
| Open shelf tier spacing | 400 mm | |
| Left tall solid side panel width | 400 mm | |
| Closed storage door panel thickness | 18 mm | |
| Edge banding thickness on exposed edges | 2 mm | |
| Lower right curved cutout compartment height | 350 mm | |
| Upper LED strip recessed channel width | 10 mm | |
| Shelf surface thickness for open tiers | 25 mm | |
| Back panel thickness | 9 mm | |
| Fluted panel rib depth | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight reference | 120 kg | |
|---|---|---|
| Per open shelf static load capacity | 30 kg | |
| Soft-close hinge cycle rating | 80000 cycles | |
| LED strip operational lifespan | 30000 hours | |
| Surface scratch resistance rating | 2H pencil hardness | |
| Recommended maximum user occupancy for access | 2 persons | |
| Individual open shelf load surface depth | 380 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and shelf core material | E0-grade MDF core board | |
|---|---|---|
| Smooth closed panel finish | Matte gray/brown lacquer coating | |
| Textured closed door panels | Vertical fluted PET laminate finish | |
| Back panel construction | 9mm hardboard with matching dark finish | |
| Edge sealing material | 2mm PVC edge banding | |
| Door hardware components | Stainless steel soft-close hinges | |
| Door latch mechanism | Press-to-open bounce latches | |
| Integrated lighting components | Low-voltage 3000K warm white LED strip lights | |
| Adjustable shelf support hardware | Metal shelf pegs with plastic sleeves | |
| Anti-tip hardware | 2 steel wall anchor brackets | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated shelf lighting function | Warm white LED strips illuminate all upper open shelves, hardwired to wall switch | |
|---|---|---|
| Closed storage access | Handle-free press-to-open doors with soft-close hinges open to 105 degrees | |
| Open display shelving configuration | 4 horizontal asymmetrical tiers for books, decor, and collectible display | |
| Adjustable shelf positioning | Left vertical open compartment supports 25mm vertical shelf height adjustment | |
| Lower curved cutout storage | Open lower right compartment accommodates office storage boxes and equipment | |
| Fluted panel door storage | Textured closed doors conceal supplies and documents to reduce visual clutter | |
| Cable management for lighting | Concealed internal channel routes LED wiring along back panel for clean appearance | |
| Anti-tip safety function | Wall anchors secure tall unit to prevent forward tipping during access | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaging configuration | Flat pack with 5 separate labeled panels and hardware boxes | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office background display | Placed behind executive desks to display awards, books, and corporate decor | |
|---|---|---|
| Study room library storage | Used in private studies to organize book collections and personal decorative items | |
| Open office reception display | Installed in reception areas to showcase company literature and branded decor | |
| Modern living room display storage | Deployed in open-concept living spaces as a feature storage wall for media and decor | |
| Conference room reference storage | Positioned along conference room walls to store reference materials and meeting supplies | |
| Recommended pairing | Combines with matching executive desks and file cabinets in coordinated brown/gray finish | |
| Target user group | Corporate facilities teams, design firms, and residential buyers seeking premium modern storage |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 312:2010 | Particleboard performance specifications for furniture structural use | |
| EN 62471:2008 | Photobiological safety for integrated LED lighting products | |
| EN 12529:1998 | Durability test methods for cabinet hinges and door hardware |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, applicable to shelf and structure load testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and recycled content |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel cabinet construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, ENF grade ≤0.025mg/m³ recommended | |
| GB/T 4897.3-2015 | Particleboard specifications for furniture use, applicable to core panel material | |
| GB 7000.204-2008 | Safety requirements for built-in LED luminaire installations in furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel cabinet construction; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, ENF grade ≤0.025mg/m³ recommended; 3. GB/T 4897.3-2015: Particleboard specifications for furniture use, applicable to core panel material; 4. GB 7000.204-2008: Safety requirements for built-in LED luminaire installations in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
