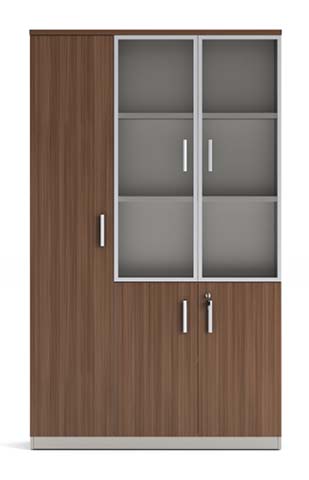

Walnut Grain Tall Office Storage Cabinet with Frosted Glass Upper Doors (model OFS-W1200D400H2000-GS) is listed under Panel-type Filing Cabinet, with overall dimensions of 1200 × 400 × 2000 mm and main material of Particle‑board (PB). Load capacity: 30 kg. Certifications: walnut,wood,grain,finish,frosted,glass,doors,silver,metal,trim,enclosed,tall,storage,floor-standing,cabinet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1200 x 400 x 2000 mm | |
|---|---|---|
| left full-height solid door width | 400 mm | |
| right section width | 800 mm | |
| upper glass door section height | 1200 mm | |
| lower solid door section height | 700 mm | |
| base plinth height | 100 mm | |
| chrome vertical pull handle length | 150 mm | |
| interior shelf count | 4 pieces | |
| adjustable shelf spacing | 350 mm | |
| door panel thickness | 18 mm | |
| back panel thickness | 4 mm | |
| edge banding thickness | 1 mm | |
| glass panel thickness | 5 mm | |
| aluminum trim profile width | 20 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| product net weight | 100 kg | |
|---|---|---|
| single shelf static load capacity | 30 kg | |
| hinge open/close cycle rating | 80000 cycles | |
| surface abrasion resistance | 2000 cycles | |
| recommended maximum load per door | 20 kg | |
| anti-tip connector required quantity | 2 pieces | |
| warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| carcass panels | E1 grade particle board with walnut grain melamine finish | |
|---|---|---|
| upper door panels | 5mm frosted tempered glass set in silver aluminum alloy frames | |
| solid door panels | 18mm E1 grade particle board with matching walnut melamine finish | |
| hardware pulls | Polished chrome vertical bar handles | |
| base plinth | Brushed silver aluminum alloy kick plate | |
| door hardware | Metal concealed hinges with optional keyed cam locks |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| door operation | All doors are hinged for 110-degree outward swing access | |
|---|---|---|
| shelf adjustability | Interior shelves support 50mm incremental height adjustment via shelf pins | |
| locking function | Lower solid doors include a keyed lock for secured document storage | |
| installation requirement | Cabinet requires wall anchoring via 2 anti-tip brackets for safety |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive office application | Suitable for placement behind executive desks for document and supply storage | |
|---|---|---|
| open plan office application | Suitable for departmental shared storage of files, binders and office materials |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for structural stability | |
|---|---|---|
| EN 14073-3:2004 | Office storage furniture strength and durability test methods | |
| EN 12150-1:2015 | Thermally toughened soda lime silicate glass safety specification for door panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, covering load and durability | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and corporate responsibility |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to this wood office cabinet | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use | |
| GB/T 28202-2011 | Office furniture general performance requirements for structural stability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to this wood office cabinet; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use; 3. GB/T 28202-2011: Office furniture general performance requirements for structural stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
