PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

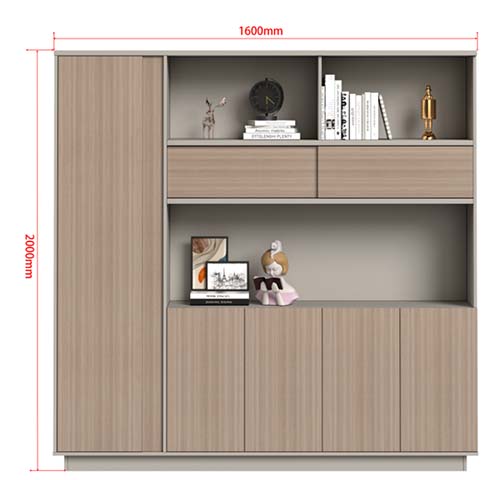

Overall dimensions (W × D × H)	1600 × 400 × 2000 mm
Left tall door bay	520 x 370 x 1900 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Cabinet net weight	118 kg
Top surface distributed load	40 kg
Fixed open shelf distributed load	20 kg per shelf
Adjustable interior shelf distributed load	25 kg per shelf
Drawer slide load rating	25 kg per drawer
Lower door hinge vertical load	15 kg per door
Hinge durability	100000 open-close cycles per hinge
Drawer slide durability	50000 open-close cycles per drawer
Anti-tip restraint load	50 kg horizontal pull per connector
Warranty period	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	18 mm engineered-wood board with thermofused melamine finish and square-edge assembly
Door panels	18 mm engineered-wood substrate with vertical fluted wood-grain laminate facade
Interior finish	Grey melamine-laminated engineered board on visible shelf backs and compartments
Back panel	9 mm melamine-faced hardboard or MDF back set into a panel groove
Shelves	18 mm melamine-faced particleboard or MDF shelves with 2 mm PVC edge banding
Plinth base	18 mm board base with recessed toe kick and matching light-grey laminate finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Tall door access	Left hinged or sliding tall door opens to provide 520 mm wide concealed storage for long files and binders
Lower right storage	Four 270 mm wide doors conceal a 700 mm high compartment with adjustable shelf positions
Drawer operation	Two full-extension drawers travel 350 mm and each supports 25 kg for stationery and document storage
Hinge opening	Concealed hinges open 110 degrees and close softly through hydraulic damping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Manager workroom	use the two 25 kg drawers for stationery and small files, while closed bays conceal bulky office materials.
Meeting or reception area	display art, books and decor in the open shelves and lock clutter behind the four lower fluted doors.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TSC-1600X400X2000-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TSC-1600X400X2000-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TSC-1600X400X2000-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The TSC-1600X400X2000-WG is an unbranded, floor-standing storage cabinet designed with a modern wood-grain exterior and a balanced arrangement of open display space, drawers, and concealed compartments. Its tall vertical form makes it a practical focal storage piece for offices and residential rooms where organized storage and a refined visual presence are required. The left side is dedicated to a tall door bay, while the right side combines open shelving, two drawers, and four lower doors. Fluted door fronts add texture and depth to the wood-grain finish, and the plinth base with a recessed toe kick gives the cabinet a grounded, built-in appearance. The cabinet is constructed from engineered-wood board with a thermofused melamine finish and square-edge assembly. Visible shelf backs and compartments use grey melamine-laminated engineered board, producing a neutral contrast with the wood-grain exterior. Door panels feature an engineered-wood substrate with a vertical fluted wood-grain laminate facade. Shelves are melamine-faced particleboard or MDF with PVC edge banding, while the back panel is melamine-faced hardboard or MDF set into a panel groove. Metal drawer runners and hinges support regular operation. The plinth base is finished in matching light-grey laminate. Functionally, the cabinet supports several storage styles. The hinged or sliding tall door provides access to a 520 mm wide concealed area suited to long files and binders. Two full-extension drawers travel 350 mm and are intended for stationery and documents. Each drawer is rated for 25 kg. The lower right section uses four doors to conceal a 700 mm high compartment with adjustable shelf positions. The concealed hinges open 110 degrees and include hydraulic damping for soft closing. Open shelves offer accessible display space, while fixed and adjustable shelves accommodate different load requirements. The top surface supports a distributed load of 40 kg, fixed open shelves support 20 kg each, and adjustable interior shelves support 25 kg each. This cabinet is well suited to manager workrooms, meeting rooms, reception areas, private studies, and residential living or work spaces that need mixed display and hidden storage. In reception settings, art, books, and decor can be placed on open shelves while clutter is stored behind the lower fluted doors. In workrooms, the drawers can hold stationery and small files, with bulky office materials concealed in the closed bays. Procurement planning should account for the cabinet’s substantial net weight of 118 kg and the need for floor placement with sufficient clearance for door and drawer operation. The listed packaging reference indicates one set split across cartons, with assembly time referenced at 40 minutes per set. Buyers should verify the final carton count, packaging dimensions, site access, and delivery terms before ordering, and should arrange suitable handling and assembly support.

Tall Wood-Grain Storage Cabinet with Open Shelves, Drawers and Doors Specifications
