PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	50 kg
Net weight reference	120 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body panels	Particleboard or MDF with matte light gray melamine finish
Decorative fluted strips	Dark walnut grain wood veneer or melamine fluted panel
Central cabinet door	Tinted gray tempered glass with aluminum or wood frame
Internal shelves	25mm thick wood-based panel with matching surface finish
Integrated lighting	Warm white LED strip lights mounted under each shelf
Back panel	Thin light gray wood-based back panel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed open-closed storage layout	Combines 4-tier left open shelves, central glass-door cabinet and right open display compartments
Integrated ambient LED lighting	Warm white strip lighting installed under top trim and each shelf edge
Hanging storage inside central cabinet	Equipped with hanging rod for garment or bag storage
Freestanding installation	Stands directly on floor with integrated base, can be fixed to wall optionally

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room display wall	Suitable for modern living rooms as a decorative storage and display unit
Study or home office	Can be used as a bookcase and display cabinet in study spaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture for indoor use	EN 14749:2016+A1:2019 storage units safety requirements
Formaldehyde emission for wood panels	EN 13986:2004 E1 class

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel formaldehyde emission	GB 18580E1 level
Cabinet structural strength	GB/T 3324Clause 6.4 shelf load test

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel formaldehyde emission: GB 18580E1 level;
2. Cabinet structural strength: GB/T 3324Clause 6.4 shelf load test;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DISCAB-WLN-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DISCAB-WLN-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DISCAB-WLN-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

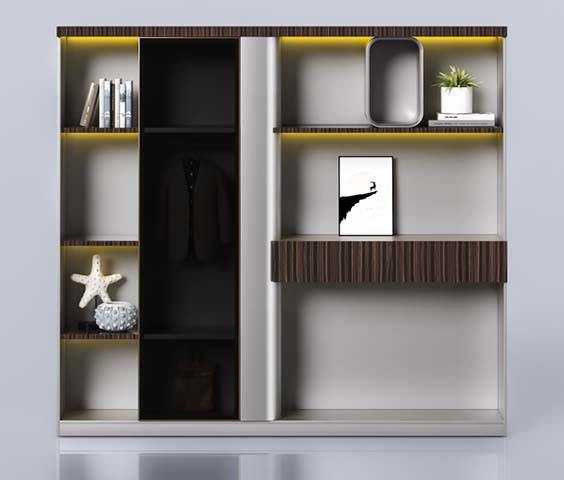

The Modern Freestanding Display Cabinet with Integrated Lighting (model DISCAB-WLN-2400) is an unbranded storage and display solution crafted to balance visual appeal and functional utility for contemporary interiors. Its aesthetic is defined by a modern profile, combining matte light gray and dark walnut finishes with fluted decorative panels that add textural depth, alongside a tinted gray glass central door that creates a layered display effect. The unit features a mixed open-closed layout that organizes storage across distinct zones: left 4-tier open shelves, a central glass-door cabinet, and right open display compartments, creating a balanced visual rhythm that highlights curated items while concealing stored goods. Constructed from wood-based panels, the cabinet body uses particleboard or MDF with a matte light gray melamine finish, with decorative fluted strips made of dark walnut grain wood veneer or melamine fluted panel. The central cabinet door is tinted gray tempered glass set in an aluminum or wood frame, while internal shelves are 25mm thick wood-based panels with a matching surface finish, paired with a thin light gray wood-based back panel. Structural components include 25mm thick carcass panels, 22mm thick door fronts, and 9mm thick back panels, supporting reliable long-term use. Each static shelf holds 50kg, with a distributed load of 30kg per shelf; drawer slides support 45kg per pair with a 50000-cycle service life, and hinges open to 165° with an 80000-cycle lifespan. The unit has a net weight reference of 120kg. Practical functions extend beyond basic storage. Integrated warm white LED strip lights are mounted under the top trim and each shelf edge, casting soft ambient illumination that accentuates displayed objects. The central glass cabinet includes a hanging rod for garment or bag storage, expanding its use beyond decorative display. Designed for freestanding installation, the unit stands directly on the floor with an integrated base, and can be optionally fixed to the wall; for units above 1200mm in height, at least 2 wall fixing points are recommended for stability. This display cabinet fits seamlessly into modern living rooms as a decorative storage and display feature for living room display walls, and also works well in study or home office spaces as a combined bookcase and display cabinet. For procurement, note the recommended warranty coverage: 5 years for the carcass, 3 years for hardware, and 2 years for the finish. The set ships in 2 cartons, with a reference assembly time of 40 minutes per set, a reference packaged gross weight of 100kg per set, and a reference packaging volume of 0.65m³ per set, supporting straightforward logistics and on-site setup.
