PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

per shelf uniform load capacity	30 kg
net weight	85 kg
door opening type	hinged swing doors
color variant count	1 primary finish combination
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

cabinet frame and shelves	particle board or MDF with matte laminate finish
closed door front	walnut grain laminate with fluted texture
accent door trim	light gray matte decorative panel band
interior back panel	light gray matte laminate
integrated lighting	LED strip along shelf edges
base plinth	light gray matte solid base panel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

mixed storage configuration	closed door storage + open display shelves + narrow niche shelves
integrated ambient lighting	warm white LED illumination for display zones
adjustable shelf compatibility	predrilled shelf supports for height adjustment
anti-tip safety provision	wall mounting hardware included for stability

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

executive office background	placed behind executive desk for document and trophy display
reception area decor	used in office reception zones to display awards and brand items

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

safety of furniture - storage units	EN 14749:2016

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

storage furniture performance	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

wood-based panel formaldehyde emission	GB 18580E1 class

Standardized tender description text

This product must meet the following technical requirements:
1. wood-based panel formaldehyde emission: GB 18580E1 class;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-DC-2400-WG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-DC-2400-WG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-DC-2400-WGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

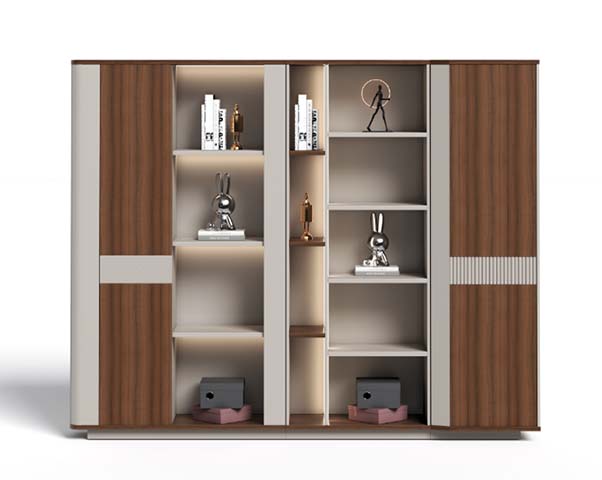

The Modern Walnut & Light Gray Office Display Cabinet, model OC-DC-2400-WG, is an unbranded freestanding display unit designed for contemporary workspaces. Its visual profile balances warm walnut tones with soft light gray accents, featuring fluted textured closed door fronts paired with light gray matte decorative trim bands, creating a sleek, integrated modern aesthetic that fits neatly into professional interiors. Constructed with a wood-based panel frame, the cabinet uses particle board or MDF finished with a durable matte laminate across its structural components. Its carcass panels and shelves measure 25 mm thick, while door and drawer fronts are 22 mm thick, and the interior back panel is 9 mm thick, all contributing to a stable, well-built structure. The base is supported by a light gray matte solid plinth, ensuring a grounded, finished appearance. The unit has a net weight of 85 kg, with hinged swing doors that open to 165 degrees, and drawer slides rated for 50000 cycles of use. Each shelf supports a uniform distributed load of 30 kg, and drawer slides handle 45 kg per pair. Functionally, the cabinet offers a mixed storage layout that combines closed door compartments, open display shelves, and narrow niche shelves to accommodate both hidden storage and visible display needs. Integrated warm white LED strips run along shelf edges, providing ambient illumination for showcased items. Shelf height can be adjusted via predrilled support holes, allowing customization for different item sizes. For safety, wall mounting hardware is included to prevent tipping, making the unit suitable for high-traffic areas. This display cabinet is ideal for executive offices, where it can be placed behind a desk to showcase trophies, documents, and professional accolades. It also works well in office reception areas, displaying awards and brand merchandise to create a polished, welcoming first impression for visitors. Procurement teams should note that the cabinet ships in 2 cartons per set, with a total gross weight of 100 kg per set and a total packaging volume of 0.65 cubic meters. Assembly takes 40 minutes per set, and the unit is available in one primary finish combination, so buyers should confirm the walnut and light gray palette aligns with their space’s existing decor before ordering.

Modern Walnut & Light Gray Office Display Cabinet Specifications
