PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2840 × 420 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf uniform load capacity	35 kg
Lower cabinet door static load per set	80 kg
Total static load rating for unit	450 kg
Storage volume (closed sections)	1.42 m³
Net weight reference	165 kg
Shelf load surface depth	380 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body and shelves	Wood-based composite panel with wood-grain melamine finish
Lower cabinet doors	MDF substrate with matte off-white lacquer coating
Decorative vertical divider strips	Black matte metal or coated composite
Right cabinet door handle	Black diamond-shaped recessed pull handle
Kick plinth and frame edges	PVC edge-banded composite panel matching body tone
Shelf support hardware	Concealed metal shelf pins

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display storage	Multi-tier open shelving on left and right for documents, decor and books
Closed concealed storage	4-door lower base cabinet plus 4-door right tall cabinet
Intermediate countertop	Flat horizontal surface at 980mm height for placing decor or equipment
Freestanding placement	Floor-supported with integrated kick base for stable standing installation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	2100 x 480 x 260 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Suitable for placement behind an executive desk as display and filing storage
Reception or lounge area	Usable in premium reception zones for decor display and document storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture - Storage units	EN 14749:2016+A1:2020
Formaldehyde for wood-based panels	EN 13986:2004+A1:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office storage furniture standard	ANSI/BIFMA X2020
Shelf and cabinet durability testing	BIFMA X5.1 related clauses

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood furniture formaldehyde emission	GB 18584
Office cabinet general technical requirement	GB/T 3324
Cabinet stability and strength	GB/T 10357.5

Standardized tender description text

This product must meet the following technical requirements:
1. Wood furniture formaldehyde emission: GB 18584;
2. Office cabinet general technical requirement: GB/T 3324;
3. Cabinet stability and strength: GB/T 10357.5;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-2840-WD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-2840-WD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-2840-WDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

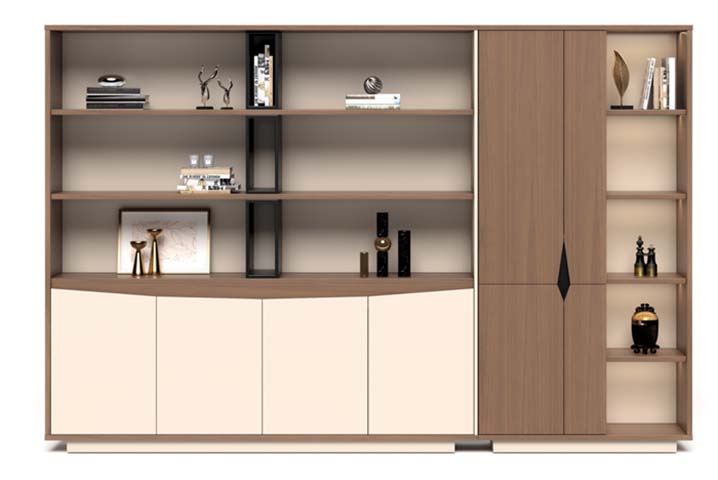

The Modern Executive Office File Cabinet with Open Display & Closed Storage, model OFC-2840-WD, is an unbranded freestanding storage solution designed with a modern mixed open-closed layout that balances display utility and concealed organization. Its visual form features a wood-grain finished frame paired with matte off-white lower cabinet doors, accented by black matte decorative vertical divider strips and a sleek black diamond-shaped recessed pull handle on the right cabinet door, creating a refined, professional aesthetic suited to polished work environments. In terms of construction and materials, the cabinet body and shelves are crafted from wood-based composite panel with a wood-grain melamine finish, while the lower cabinet doors use an MDF substrate with a matte off-white lacquer coating. The kick plinth and frame edges are finished with PVC edge-banded composite panel matching the body tone, and decorative vertical divider strips are made of black matte metal or coated composite. Shelves are supported by concealed metal shelf pins for a clean, uncluttered look, with key structural panel thicknesses including 25 mm carcass and shelf panels, 22 mm door and drawer fronts, and 9 mm back panels. Practically, the cabinet delivers versatile storage functionality: multi-tier open shelving on both the left and right sides accommodates documents, decor, and books, while closed storage consists of a 4-door lower base cabinet and a 4-door right tall cabinet for secure, out-of-sight organization. A flat intermediate countertop at 980mm height provides additional surface space for decor or small equipment. The unit is designed for freestanding floor-supported placement with an integrated kick base for stable installation. Performance specifications include a per shelf uniform load capacity of 35 kg, a lower cabinet door static load per set of 80 kg, and a total static load rating for the unit of 450 kg, with a closed section storage volume of 1.42 m³ and a net weight reference of 165 kg. This file cabinet is ideal for placement behind an executive desk as a backdrop combining display and filing storage, and also works well in premium reception or lounge areas for decor display and document storage. For procurement, note that the set ships in multiple cartons with a reference assembly time of 40 minutes per set, and requires adequate space for installation given its overall footprint.

Modern Executive Office File Cabinet with Open Display & Closed Storage Specifications
