PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 350 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per open shelf static load capacity	50 kg
LED strip color temperature	3000 K
LED strip power per meter	12 W/m
Closed door hinge opening angle	110 degrees
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet frame and shelves	Melamine-faced particle board with matte cream finish
Door panels	Matching matte laminate door slab with handle-less push-to-open design
LED lighting system	Low-voltage warm white LED strip with recessed mounting
Back panel	Thin wood-based backboard with matching interior finish
Kick base	Low-profile plinth in matching cabinet finish
Door hinges	Concealed soft-close cabinet hinges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed storage layout	4 tiers of open display shelves plus 2 sets of double-door closed cabinets
Integrated shelf lighting	Warm LED strip lighting under each open shelf for ambient display illumination
Handle-less door operation	Push-to-open concealed hinge doors with soft-close mechanism
Freestanding installation	Stable floor-standing design with integrated plinth base

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging carton quantity	2 cartons
Main carton dimensions	1700 x 420 x 220 mm
Accessory carton dimensions	800 x 320 x 120 mm
Total gross weight	85 kg
Total shipment volume	0.21 CBM
Single unit assembly time	120 minutes

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room display and storage	Suitable for residential living rooms to display decor and store media accessories
Study or home office use	Can be used as a book display cabinet in home offices or studies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture - Storage units	EN 14749:2016+A1:2019
Formaldehyde for furniture panels	EN 13986:2004+A1:2015 E1 class

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Storage furniture performance	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission limit for wood-based panels	GB 18580E1 grade
General technical requirements for furniture	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission limit for wood-based panels: GB 18580E1 grade;
2. General technical requirements for furniture: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DSC-MIX-1600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DSC-MIX-1600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DSC-MIX-1600Open Export Tool

Quick Actions

Post an RFQ

Product Description

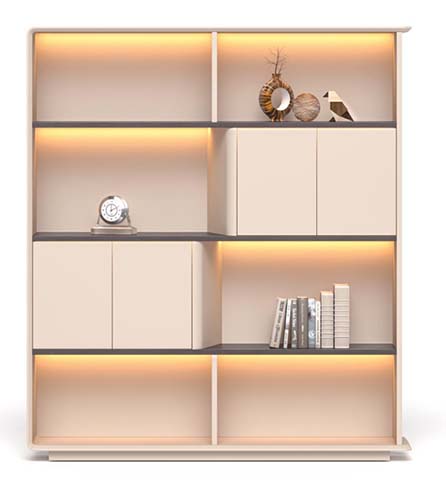

This modern LED-lit freestanding display cabinet, model DSC-MIX-1600, features a minimalist, streamlined visual profile defined by a mixed open and closed storage layout. Its balanced arrangement pairs open display surfaces with enclosed storage compartments, supported by a low-profile matching plinth base that creates a clean, grounded silhouette suited to contemporary interior schemes. The handle-less push-to-open door design eliminates protruding hardware, reinforcing the cabinet’s sleek, uncluttered form across its freestanding structure. Constructed with a melamine-faced particle board frame and shelves in a matte cream finish, the cabinet delivers durable, easy-to-maintain surfaces aligned with modern aesthetic preferences. Its build includes a 25 mm thick carcass and shelves, 22 mm thick door fronts, a 9 mm thick wood-based back panel with a matching interior finish, and a matching low-profile kick base for stable floor placement. Door panels use a coordinating matte laminate slab design, fitted with concealed soft-close hinges that operate with a 110-degree opening angle and 80,000-cycle service life. Drawer slides support 45 kg per pair and are rated for 50,000 cycles. The integrated low-voltage warm white LED strip lighting is recess-mounted under each open shelf, producing a 3000 K color temperature at 12 W per meter for even, inviting illumination. Functionally, the cabinet offers 4 tiers of glass-free open display shelves and 2 sets of double-door closed cabinets, catering to both decorative display and hidden storage needs. Push-to-open door operation provides seamless access, while soft-close hardware prevents slamming and reduces wear over time. Each open shelf supports a 50 kg static load and 30 kg distributed load, making it suitable for a range of display items. Its freestanding design requires no wall mounting, allowing flexible placement within a space. Ideal for residential living rooms, the cabinet works well for showcasing decorative pieces and storing media accessories. It also functions effectively as a book display unit in home offices or studies, blending practical storage with polished visual appeal. For procurement, note that the unbranded cabinet ships in 2 cartons with a total gross weight of 85 kg and total shipment volume of 0.21 CBM, with the main carton measuring 1700 x 420 x 220 mm and the accessory carton 800 x 320 x 120 mm. Single-unit assembly takes 120 minutes, requiring standard tools and careful following of included instructions to ensure proper alignment of hinges, shelves, and the LED lighting system.

Modern LED-Lit Freestanding Display Cabinet with Mixed Open Shelves and Closed Doors Specifications
