PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 420 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf uniform load capacity	35 kg
Lower cabinet static load per compartment	100 kg
Total net storage volume	2.1 m³
Recommended maximum display item weight per shelf	20 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet body	E1 grade particleboard core with melamine laminate finish
Walnut wood-grain door panels	Wood veneer or high-definition melamine grain surface with vertical fluted texture
Light gray panel surfaces	Matte melamine laminate with smooth scratch-resistant finish
Internal shelf panels	25mm thick laminated particleboard with PVC edge banding
Drawer slides	Metal side-mounted ball bearing slides
Back panel	8mm thick melamine fiberboard

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular combination structure	3 independent units (left tower, central cabinet, right tower) can be installed as a single run
Upper LED ambient lighting	Integrated warm-white strip lighting recessed into shelf undersides
Sliding fluted door panels	Two sliding doors with vertical fluted texture conceal upper storage compartments
4 lower closed cabinet doors	Four swing doors providing large-capacity enclosed storage at base

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	5
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Installed behind executive desk for file storage and brand display
Manager office storage	Combines document storage with decorative display for management workspaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-WD-LR3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-WD-LR3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-WD-LR3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

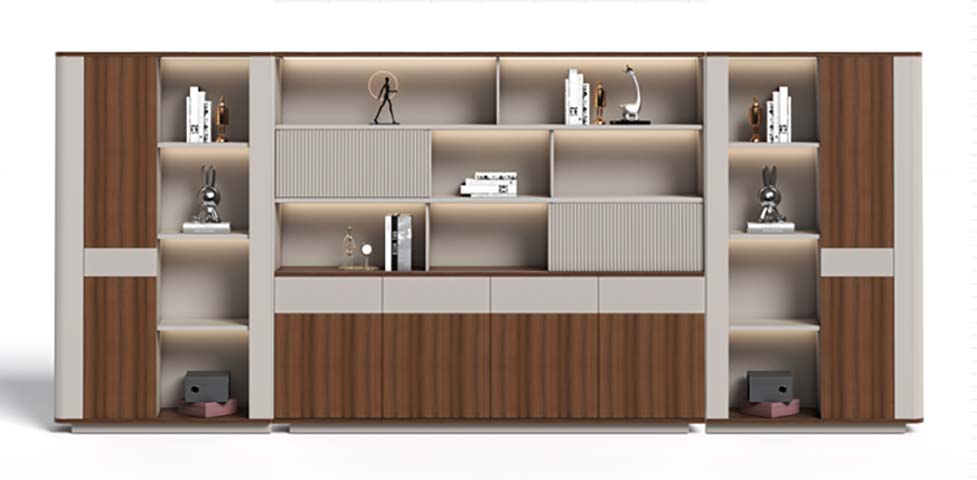

The Modern Executive Office Filing Cabinet with Integrated Display Shelves, model OFC-WD-LR3200, is an unbranded high office storage unit designed to blend functional organization with refined visual appeal for premium work environments. Its modular form consists of three independent units—a left tower, central cabinet, and right tower—that install as a single continuous run, creating a cohesive, streamlined silhouette suitable for prominent office placement. The exterior pairs warm walnut wood-grain door panels with vertical fluted texture and light gray matte laminate surfaces, balancing rich visual depth with understated, scratch-resistant durability. The upper section incorporates open display shelves, while sliding fluted doors conceal additional upper storage, and four lower swing doors deliver enclosed base storage, creating a balanced mix of open display and closed storage zones. Constructed with a wood-based panel frame, the main cabinet body uses E1 grade particleboard core with a melamine laminate finish. Carcass and shelf panels measure 25 mm thick, door and drawer fronts are 22 mm thick, and the back panel is 9 mm thick melamine fiberboard, with internal shelves featuring PVC edge banding for a polished, long-lasting finish. Drawers operate on metal side-mounted ball bearing slides, while swing doors use hinges with a 165-degree opening angle, both components rated for extended, frequent use. Practical functionality is central to the design. Integrated warm-white LED strip lighting is recessed into the undersides of upper shelves, providing soft ambient backlighting for displayed items. The unit offers 2.1 cubic meters of total net storage volume, with each shelf supporting uniform loads of 35 kg, lower cabinet compartments handling 100 kg of static load per compartment, and drawers supporting 45 kg per pair of slides. Display shelves are rated for a maximum display item weight of 20 kg per shelf, with distributed load capacity of 30 kg per shelf. This filing cabinet is optimized for executive office backdrops, where it installs behind executive desks to support both file storage and brand or decorative display, and for manager offices, where it combines document organization with curated display space to complement management workspaces. For procurement, note that the unit ships in five cartons, with a reference set packaged across two cartons weighing 100 kg total with 0.65 cubic meters of packaging volume, and it requires 40 minutes of assembly per set. Individual carton dimensions align with the split carcass design, measuring 2100 by 700 by 350 mm each.

Modern Executive Office Filing Cabinet with Integrated Display Shelves Specifications
