PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1880 × 2080 × 1020 mm
Compatible mattress size	1800 x 2000 mm
Sleeping surface height (top of slats)	320 mm
Mattress thickness compatibility	300 mm
Headboard height from floor	1020 mm
Footboard height from floor	360 mm
Underbed clearance height	180 mm
Bed leg cross-section	60 x 60 mm
Side rail thickness	30 mm
Slat count	28 pieces
Slat spacing	70 mm
Slat thickness	20 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total static load capacity	500 kg
Center support beam count	1 piece
Net frame weight	55 kg
Finish abrasion resistance	1000 cycles
Connector static shear rating	80 kg per connector
Warranty period	3 years
Available finish options	4 variants
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Headboard panel	Solid oak/rubberwood panel with rounded edge trim
Footboard panel	Matching solid wood panel with rounded edges
Side rails	Solid hardwood rails with eased edges
Support slats	Solid pine wood slats, sanded smooth
Bed legs	Solid hardwood square legs with rounded corners
Center support beam	Solid hardwood longitudinal beam
Surface finish	Clear natural wood wax oil finish
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Floor glides	Non-marking plastic glides at leg bases
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Box spring requirement	No box spring required
Assembly method	Knock-down flat-pack assembly with included hardware
Floor protection	Non-marking fixed glides at each leg base
Underbed access	180 mm open clearance under side rails
Mattress retention	Recessed slat platform with 30 mm rail lip
Structural stabilization	Cross-bolted rail-to-leg joints with center support
Seated back support	1020 mm tall solid headboard panel
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential master bedroom	Fits king size mattress for primary adult bedroom use in Scandinavian-themed interiors
Secondary guest bedroom	Durable solid wood construction suitable for frequent guest accommodation
Small apartment bedroom	Low-profile design and 180mm underbed clearance suits compact living spaces
Short-term rental furnished units	Easy to assemble, durable natural wood finish suitable for Airbnb and rental properties
Matching bedroom sets	Pairs with matching light wood nightstands and dressers for coordinated bedroom layout

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 747:2012+A1:2015	Furniture - Bunk beds and high beds for domestic use, structural safety reference
EN 1725:1998	Domestic furniture - Beds and mattresses - safety requirements and test methods

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural stability inspection
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture
GB/T 10357.6-2013	Test of mechanical properties of furniture - strength and durability of beds

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for structural stability inspection；
2. GB 18584-2001：Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture；
3. GB/T 10357.6-2013：Test of mechanical properties of furniture - strength and durability of beds；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · PB-LNOAK-1800-PANEL

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · PB-LNOAK-1800-PANEL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · PB-LNOAK-1800-PANEL打开导出工具

页面快速操作

发布采购询价

产品描述

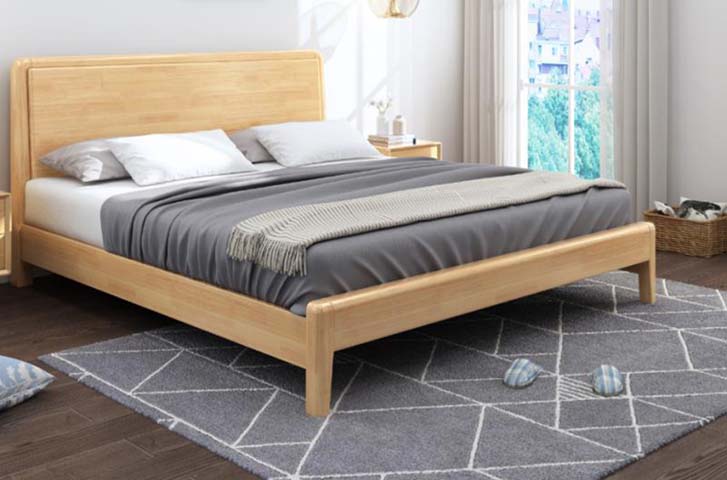

This unbranded light natural solid wood platform bed, model PB-LNOAK-1800-PANEL, embodies a minimalist Scandinavian aesthetic defined by soft, rounded edges and a cohesive low-profile silhouette. Its visual design centers on a tall, rounded-panel headboard, a matching shorter footboard, and squared solid wood legs with rounded corners, all finished in a clear natural wood wax oil that highlights the organic grain of the hardwood construction. Eased edges on side rails and smoothly sanded slats contribute to a refined, approachable look that balances warmth and streamlined simplicity, supporting coordinated layouts when paired with matching light wood nightstands and dressers.
Constructed for long-term durability, the frame uses solid light hardwood for rails, legs, and the single longitudinal center support beam, with solid oak or rubberwood panels for the headboard and footboard, and sanded solid pine slats forming the platform base. Joints are secured with zinc-plated steel bolts and barrel nuts, rated for 80 kg static shear per connector, while non-marking plastic glides at leg bases protect finished flooring. The clear natural wood wax oil finish delivers 1000 cycles of abrasion resistance, with 4 total finish variants available to align with different interior palettes.
Functionally, the slatted platform eliminates the need for a box spring, supporting a total static load of 500 kg across the structure. A 30 mm recessed lip on the rails holds compatible mattresses (fitted for 1800 x 2000 mm sizes up to 300 mm thick) securely in place, while the 1020 mm tall headboard provides stable seated back support. The 320 mm sleeping surface height creates a low-profile feel, with 180 mm of open underbed clearance for accessible storage, and cross-bolted rail-to-leg joints paired with the center beam reinforce structural stability.
This bed fits a range of spaces: it works as a primary king-size bed for Scandinavian-themed master bedrooms, holds up to frequent use in guest bedrooms, suits compact small apartment bedrooms thanks to its low profile and underbed storage space, and serves as a durable, easy-to-assemble option for short-term rental furnished units. Knock-down flat-pack assembly requires included hardware, with a reference assembly time of 40 minutes per set, shipped across 2 cartons for streamlined handling.
When procuring, confirm the selected finish variant matches desired interior schemes, note the 55 kg net frame weight for installation planning, account for the 130 kg total packaged weight and 0.9 m³ packaging volume for delivery coordination, and review the 3-year warranty terms for post-purchase coverage. Ensure the intended room can accommodate the 1880 x 2080 x 1020 mm overall footprint, and confirm mattress dimensions align with the 1800 x 2000 mm compatible size and 300 mm maximum thickness specification for proper fit.

Light Natural Solid Wood Platform Bed with Rounded Panel Headboard and Matching Footboard Specifications
