PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1800 × 2000 × 1050 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total static bed load capacity	500 kg
Net product weight	85 kg
Recommended user weight per side	150 kg
Bed base durability cycle count	10000 cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Bed frame core	18mm E1 grade engineered wood
Headboard upholstery	0.8mm thick matte faux leather
Headboard padding	30mm high-density polyurethane foam
Headboard decorative inlay	120mm diameter wood composite disc
Bed support legs	Solid beech wood angled legs
Slat base	12mm poplar plywood slats
Surface finish	NC matte paint coating
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Platform base design	Solid slat support, no box spring required
Headboard support function	Padded split-panel headboard, provides back support for upright sitting
Assembly structure	Knock-down hardware connection between rails, headboard and legs
Under-bed access	150mm floor clearance, supports robot vacuum cleaning and under-bed storage bins
Headboard wall alignment	Flat rear profile, sits flush against standard bedroom walls
Mattress retention	Raised edge lip on side and foot rails, prevents mattress sliding during use
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential master bedroom use	Fits 1800x2000mm king size mattress, designed for two-adult daily use, matches modern neutral decor
Contemporary apartment fit-out	Low-profile grey and white finish works with light wood and grey interior palettes for urban homes
Hotel guest room furnishing	Durable painted finish and padded headboard suitable for mid-range boutique hotel guest rooms
Match with coordinating nightstand	Pairs with the 2-drawer matching grey nightstand shown for cohesive bedroom furniture set
Low-ceiling bedroom application	Total height 1050mm does not overwhelm rooms with lower ceiling heights

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 747-1:2012+A1:2015	Furniture - Beds and mattresses - Safety requirements for domestic beds, applicable for structural safety gaps and edges
EN 13453-1:2004	Furniture - Test methods for beds - Determination of strength and durability, recommended for load cycle validation

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for frame strength and finish quality inspection
GB 18584-2001	Limit of formaldehyde emission for wooden furniture, recommended E1 grade ≤0.124mg/m³ for indoor use

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for frame strength and finish quality inspection；
2. GB 18584-2001：Limit of formaldehyde emission for wooden furniture, recommended E1 grade ≤0.124mg/m³ for indoor use；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · BD-PL-818-GRY

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · BD-PL-818-GRY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · BD-PL-818-GRY打开导出工具

页面快速操作

发布采购询价

产品描述

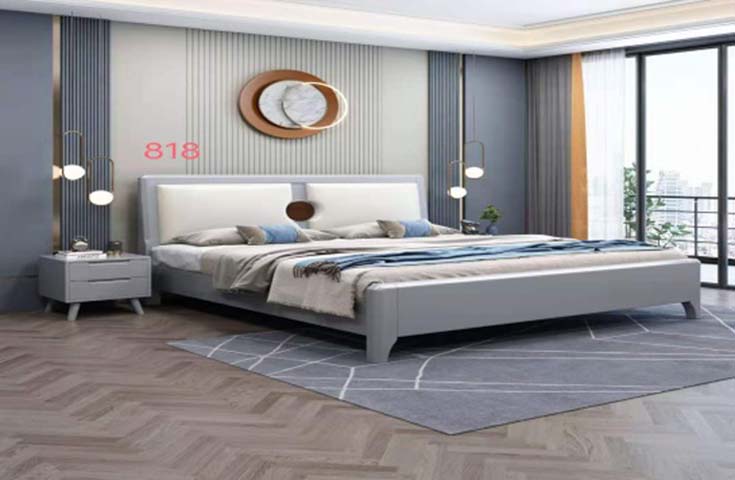

The Modern Upholstered Headboard Platform Bed, model BD-PL-818-GRY, is an unbranded public-use and residential bed defined by clean, minimalist modern lines. Its low-profile 1050mm total height features a flat rear headboard profile that sits flush against standard walls, avoiding visual bulk in compact spaces. The split-panel headboard anchors the design, upholstered in 0.8mm matte grey faux leather over 30mm high-density polyurethane foam, accented by a 120mm diameter wood composite decorative inlay. Angled solid beech wood legs elevate the frame 150mm above the floor, supporting painted NC matte finish bed rails fitted with raised edge lips to hold mattresses securely without slippage during use. Built for long-term durability, the frame uses 18mm E1 grade engineered wood for its core, with 40mm thick side rails connected via M8-M10 bolts that provide a minimum of two fixing points per corner, supporting up to five controlled reassembly cycles. The base uses 15mm thick bent plywood or solid poplar slats spaced 80mm apart, reinforced by six recommended center support legs for even weight distribution. The entire unit holds a 500kg total static load, with a 150kg per-side user weight rating and 10,000-cycle durability for the bed base, eliminating the need for a separate box spring. Practical design features suit daily use across settings: the padded headboard offers comfortable back support for upright sitting, while the 150mm under-bed clearance accommodates robot vacuum access and under-bed storage bins. The bed fits an 1800x2000mm king size mattress, suited for two-adult daily use. It complements residential master bedrooms with modern neutral decor, urban contemporary apartments with light wood or grey palettes, and mid-range boutique hotel guest rooms, and pairs with a coordinating 2-drawer grey nightstand for a cohesive set, particularly well-suited to rooms with lower ceiling heights. Procurement teams should note the 10-year frame warranty, 5-year hardware warranty, and 2-year upholstery warranty. Units ship in two cartons per set, with a total packaged gross weight of 130kg, 0.9m³ packaging volume, and an 40-minute assembly time per unit. A net product weight of 85kg should be accounted for during installation and placement planning.

Modern Upholstered Headboard Platform Bed Specifications
